Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- Jinyuan Lighting
- Model Number:
- JY72M-H solar cell module
- Type:
- Standard Solar Panel
- Size:
- 156.75*156.75*0.2mm
- Product name:
- Solar cell module
- Operating temperature:
- -40℃~85℃
- Max-system voltage(VDC):
- 1000V
- Fire rating:
- C
- Application class:
- Class A
- Design:
- OEM
- Power tolerance:
- 0-3%
- Frame:
- Aluminum alloy
- Junction box:
- IP67,3 pcs Diodes
- Connector:
- MC4 IP67
Supply Ability
- Supply Ability:
- 648 Piece/Pieces per Day solar cell module for sale
Packaging & Delivery
- Packaging Details
- Carton box
648 pcs per 40ft HQ
- Port
- SHENZHEN
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 5 6 - 648 649 - 3240 >3240 Est. Time(days) 7 15 20 To be negotiated

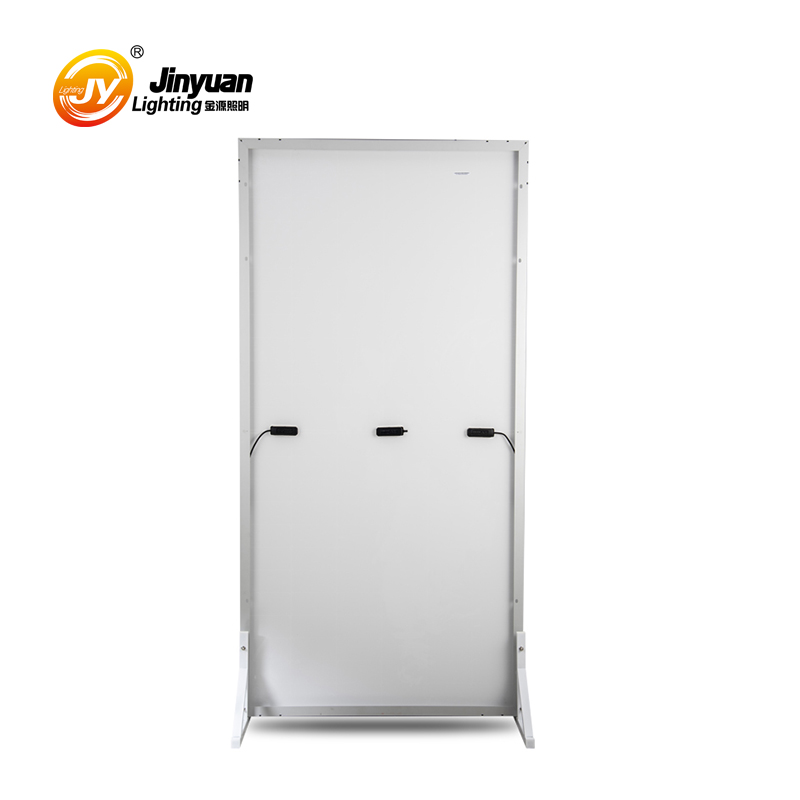

370w 360w 350w monocrystalline panel solar cell module from china
Product Description
Product Number | JY350M72-H | JY355M72-H | JY360M72-H | JY365M72-H | JY370M72-H |
| Rated Maximum Power(Pmax) | 350W | 355W | 360W | 365W | 370W |
| Open Circuit Voltage(Voc) | 47.5V | 47.8V | 48V | 48.5V | 48.7V |
| Short Circuit Voltage(Isc) | 9.38A | 9.45A | 9.51A | 9.43A | 9.53A |
| Rated Power Maximum Voltage(Vmp) | 39.2V | 39.3V | 39.5V | 39.9V | 40.1V |
| Rated Power Maximum Current(Imp) | 8.93A | 9.04A | 9.12A | 9.15A | 9.23A |
| Module Efficiency | 17.7% | 17.96% | 18.21% | 18.46% | 18.71% |
| Maximum reverse current protection rating | 15A | ||||
| Solar Irradiance | 1000W/m² | ||||
| Solar Cell Temp. | 25℃ | ||||
| AM | 1.5 | ||||
| Solar Module Temperature | |||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.37%/℃ | ||||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.29%/℃ | ||||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.048%/℃ | ||||
| Normal Operating Condition Test(NOCT) | 45±2%/℃ | ||||
| Specifictaion | |||||
| Solar Cell Dimension | Monocrystalline:156.75×156.75×0.2(6 inches) | ||||
| Soalr Cell Permutation | 144(12×12)pcs | ||||
| Module Dimension | 1993×992×40mm | ||||
| Module Weight | 21.7kg | ||||
| Glass | 3.2mm Tempered Glass | ||||
| Cable | 4mm²×900mm | ||||
| Packaging | |
| Package | Box(2pcs)/Wodden Pallet(26pcs) |
| Box Dimension/Weight | 2022×1020×85mm/40.5kg |
| Box Cover+Wodden Pallet/Weight | 2022×1108×1150mm/616.2kg |
