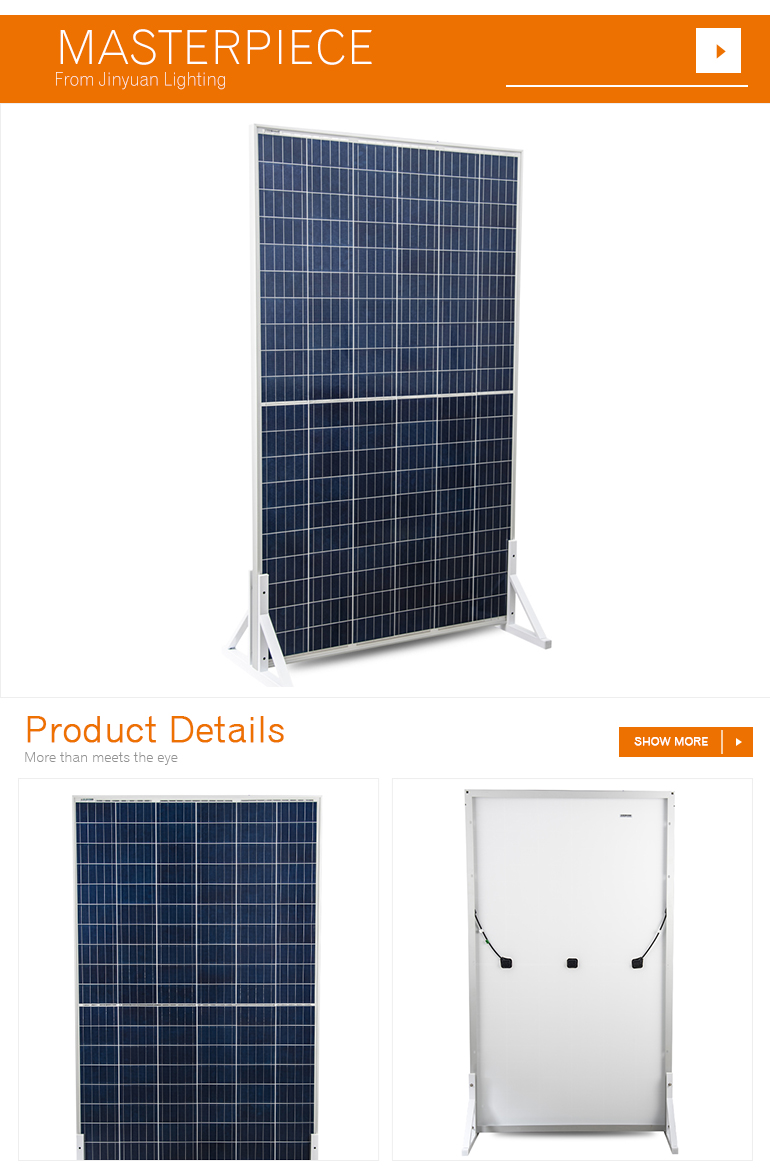

half-cut 60 cells 280w 290w polycrystalline portable solar panels from china
Product Description

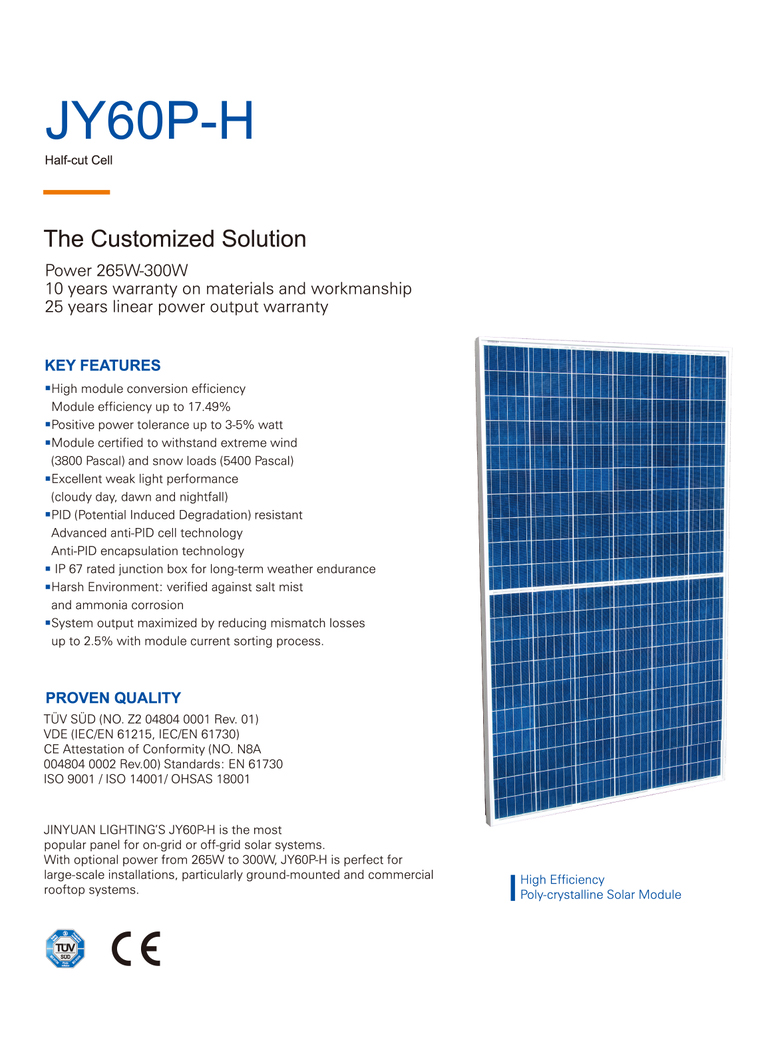

Product Number | JY275P60-H | JY280P60-H | JY285P60-H | JY290P60-H |
| Rated Maximum Power(Pmax) | 275W | 280W | 285W | 290W |
| Open Circuit Voltage(Voc) | 32V | 32.3V | 32.6V | 39.5V |
| Short Circuit Voltage(Isc) | 8.59A | 8.66A | 8.73A | 9.55A |
| Rated Power Maximum Voltage(Vmp) | 38V | 39.5V | 39.8V | 32.1V |
| Rated Power Maximum Current(Imp) | 9.12A | 9.18A | 9.24A | 9.05A |
| Module Efficiency | 16.59% | 16.89% | 17.19% | 17.49% |
| Maximum reverse current protection rating | 15A | |||
| Solar Irradiance | 1000W/m² | |||
| Solar Cell Temp. | 25℃ | |||
| AM | 1.5 | |||
| Solar Module Temperature | ||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.37%/℃ | |||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.29%/℃ | |||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.048%/℃ | |||
| Normal Operating Condition Test(NOCT) | 45±2%/℃ | |||
| Specifictaion | ||||
| Solar Cell Dimension | Polycrystalline:156.75×156.75×0.2mm(6 inches) | |||
| Soalr Cell Permutation | 120(12×10)pcs | |||
| Module Dimension | 1671×992×40mm | |||
| Module Weight | 19.4kg | |||
| Glass | 3.2mm Tempered Glass | |||
| Cable | 4mm²×900mm | |||
| Packaging | |
| Package | Box(2pcs)/Wodden Pallet(26pcs) |
| Box Dimension/Weight | 1700×1020×85mm/40.5kg |
| Box Cover+Wodden Pallet/Weight | 1700×1108×1150/556.4kg |
