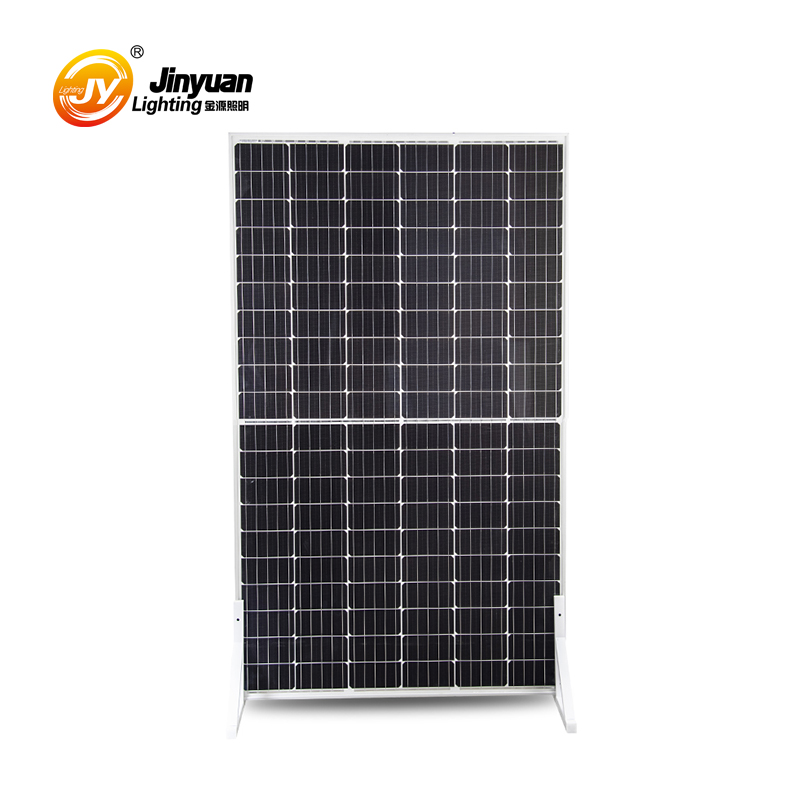

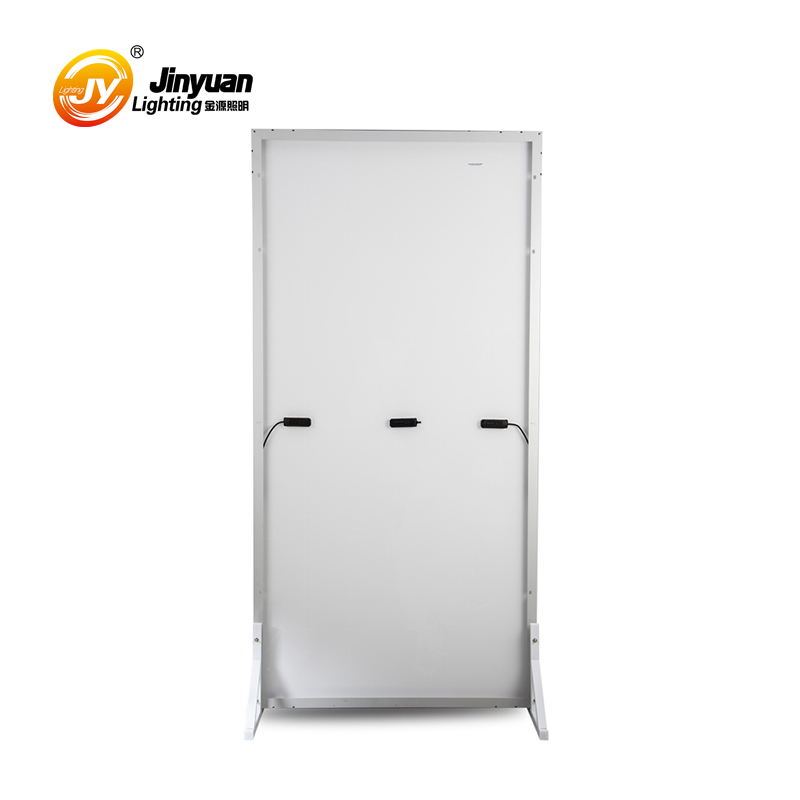

china 60 cells 290W 300W monocrystalline silicon portable solar panel
Product Description
Product Number | JY285M60-H | JY290M60-H | JY295M60-H | JY300M60-H | JY305M60-H |
| Rated Maximum Power(Pmax) | 285W | 290W | 295W | 300W | 305W |
| Open Circuit Voltage(Voc) | 39.7V | 39.9V | 40.1V | 40.3V | 40.5V |
| Short Circuit Voltage(Isc) | 9.16A | 9.26A | 9.36A | 9.46A | 9.56A |
| Rated Power Maximum Voltage(Vmp) | 32V | 32.2V | 32.4V | 32.6V | 32.8V |
| Rated Power Maximum Current(Imp) | 8.88A | 8.98A | 9.08A | 9.17A | 9.27A |
| Module Efficiency | 17.19% | 17.49% | 17.8% | 18.1% | 18.4% |
| Maximum reverse current protection rating | 15A | ||||
| Solar Irradiance | 1000W/m² | ||||
| Solar Cell Temp. | 25℃ | ||||
| AM | 1.5 | ||||
| Solar Module Temperature | |||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.37%/℃ | ||||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.29%/℃ | ||||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.048%/℃ | ||||
| Normal Operating Condition Test(NOCT) | 45±2%/℃ | ||||
| Specifictaion | |||||
| Solar Cell Dimension | Monocrystalline:156.75×156.75×0.2(6 inches) | ||||
| Soalr Cell Permutation | 120(12×10)pcs | ||||
| Module Dimension | 1671×992×40mm | ||||
| Module Weight | 19.4kg | ||||
| Glass | 3.2mm Tempered Glass | ||||
| Cable | 4mm²×900mm | ||||
| Packaging | |
| Package | Box(2pcs)/Wodden Pallet(26pcs) |
| Box Dimension/Weight | 1700×1020×85mm/40.5kg |
| Box Cover+Wodden Pallet/Weight | 1700×1108×1150/556.4kg |
