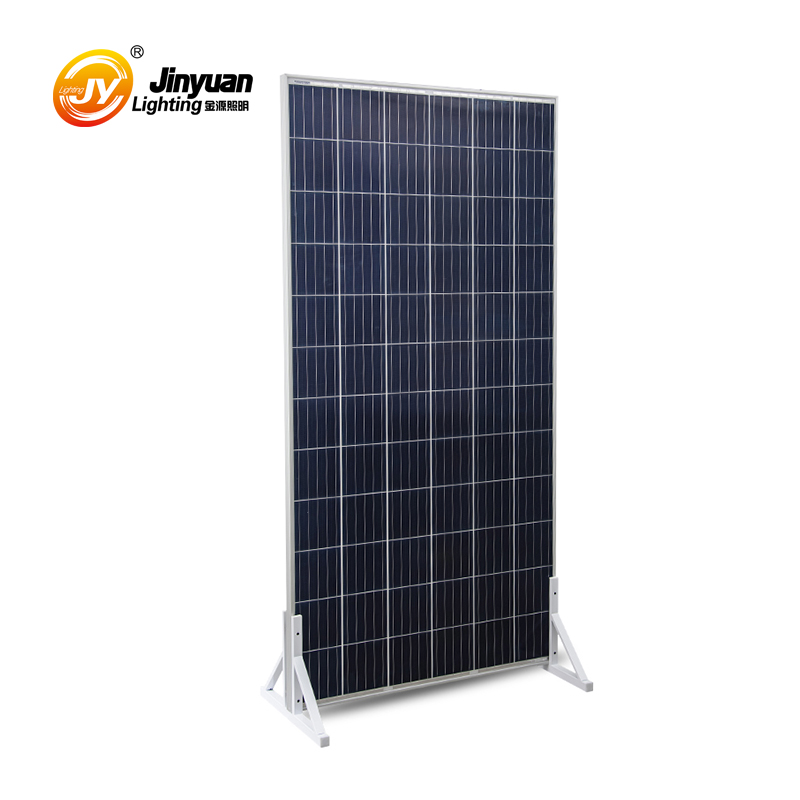

high efficiency 320W 330W 340W polycrystalline solarpanel solar panel cells
Product Description
Product Number | JY320P72 | JY325P72 | JY330P72 | JY335P72 | JY340P72 |
| Rated Maximum Power(Pmax) | 320W | 325W | 330W | 335W | 340W |
| Open Circuit Voltage(Voc) | 46.4V | 46.7V | 46.9V | 47.2V | 47.1V |
| Short Circuit Voltage(Isc) | 9.06A | 9.11A | 9.14A | 9.18A | 9.24A |
| Rated Power Maximum Voltage(Vmp) | 37.4V | 37.6V | 37.8V | 38V | 38.7V |
| Rated Power Maximum Current(Imp) | 8.56A | 8.65A | 8.75A | 8.82A | 8.79A |
| Module Efficiency | 16.49% | 16.75% | 17.01% | 17.26% | 17.52% |
| Maximum Reverse Current Protection Rating | 15A | ||||
| Solar Irradiance | 1000W/m² | ||||
| Solar Cell Temp. | 25℃ | ||||
| AM | 1.5 | ||||
| Solar Module Temperature | |||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.395%/℃ | ||||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.317%/℃ | ||||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.0577%/℃ | ||||
| Normal Operating Condition Test(NOCT) | 45±2℃ | ||||
| Specifictaion | |||||
| Solar Cell Dimension | Polycrystalline:156.75×156.75×0.2mm(6 inches) | ||||
| Soalr Cell Permutation | 72(6×12)pcs | ||||
| Module Dimension | 1956×992×45/40/35mm | ||||
| Module Weight | 21.5/21.2/21.0kg | ||||
| Glass | 3.2mm Tempered Glass | ||||
| Cable | 4mm²×900mm | ||||
| Packaging | |||
| Box Dimension/Gross Weight | 1976×1020×95mm/44.9kg (2pcs) 1976×1020×85mm/44.3kg (2pcs) 1976×1020×75mm/43.9kg (2pcs) | ||
| Box Cover+Wodden Pallet | 1976×1125×1150mm | ||
| Pallet Volume/Gross Weight | 30pcs/680kg | 27pcs/601.2kg | 24pcs/544.5kg |
| Container Volume | 40HQ : 720pcs 40GP : 360pcs 20GP : 150pcs | 40HQ : 648pcs 40GP : 324pcs 20GP : 135pcs | 40HQ : 576pcs 40GP : 288pcs 20GP : 120pcs |
