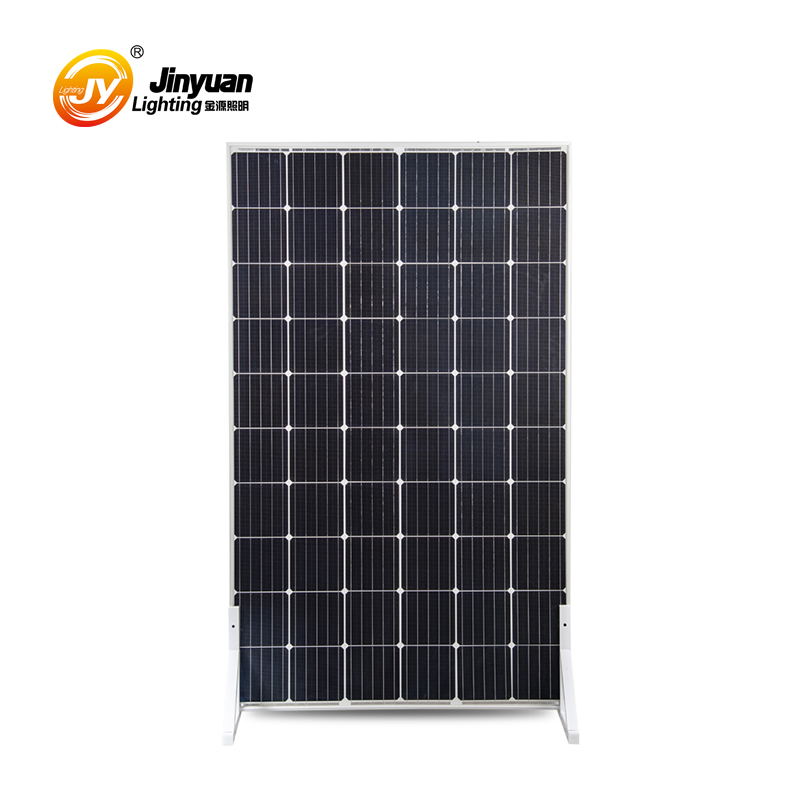

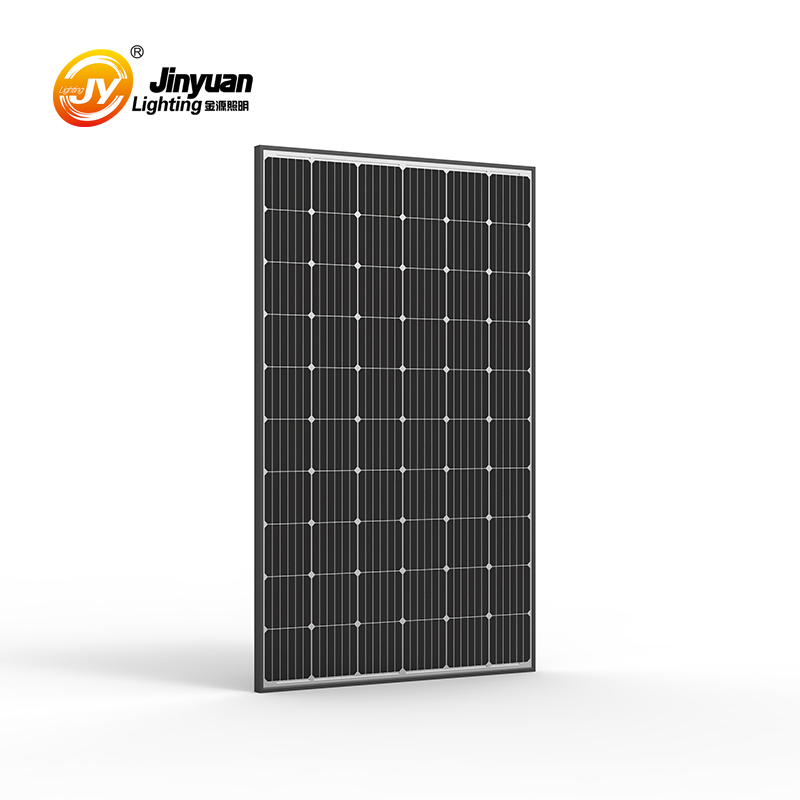

280w 285w 290w 295w solarpanel 60 cells solar panel monocrystalline 300w
Product Description
Product Number | JY280M60 | JY285M60 | JY290M60 | JY295M60 | JY300M60 |
| Rated Maximum Power(Pmax) | 280W | 285W | 290W | 295W | 300W |
| Open Circuit Voltage(Voc) | 38.6V | 38.7V | 39.5V | 39.7V | 40.1V |
| Short Circuit Voltage(Isc) | 9.49A | 9.51A | 9.55A | 9.61A | 9.72A |
| Rated Power Maximum Voltage(Vmp) | 31.8V | 32.1V | 32.2V | 32.4V | 32.6V |
| Rated Power Maximum Current(Imp) | 8.81A | 8.91A | 9.02A | 9.1A | 9.21A |
| Module Efficiency | 17.21% | 17.52% | 17.83% | 18.02% | 18.44% |
| Maximum reverse current protection rating | 15A | ||||
| Solar Irradiance | 1000W/m² | ||||
| Solar Cell Temp. | 25℃ | ||||
| AM | 1.5 | ||||
| Solar Module Temperature | |||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.395%/℃ | ||||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.317%/℃ | ||||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.0577%/℃ | ||||
| Normal Operating Condition Test(NOCT) | 45±2℃ | ||||
| Specifictaion | |||||
| Solar Cell Dimension | Monocrystalline:156.75×156.75×0.2mm(6 inches) | ||||
| Soalr Cell Permutation | 60(6×10)pcs | ||||
| Module Dimension | 1640×992×35/40/45mm | ||||
| Module Weight | 17.7/17.9/18.2kg | ||||
| Glass | 3.2mm Tempered Glass | ||||
| Cable | 4mm²×900mm | ||||
| Packaging | |||
| Box Dimension/Gross Weight | 1670×1020×75mm/37.1kg (2pcs) 1670×1020×85mm/37.5kg (2pcs) | ||
| Box Cover+Wodden Pallet | 1680×1108×1150mm | ||
| Pallet Volume/Gross Weight | 30pcs/576kg | 26pcs/510.4kg | 24pcs/481.8kg |
| Container Volume | 40HQ : 840pcs 40GP : 420pcs 20GP : 180pcs | 40HQ : 728pcs 40GP : 364pcs 20GP : 156pcs | 40HQ : 672pcs 40GP : 336pcs 20GP : 144pcs |
