Home > Products > 10W 20W 30W integrated street lamp solar power led street light

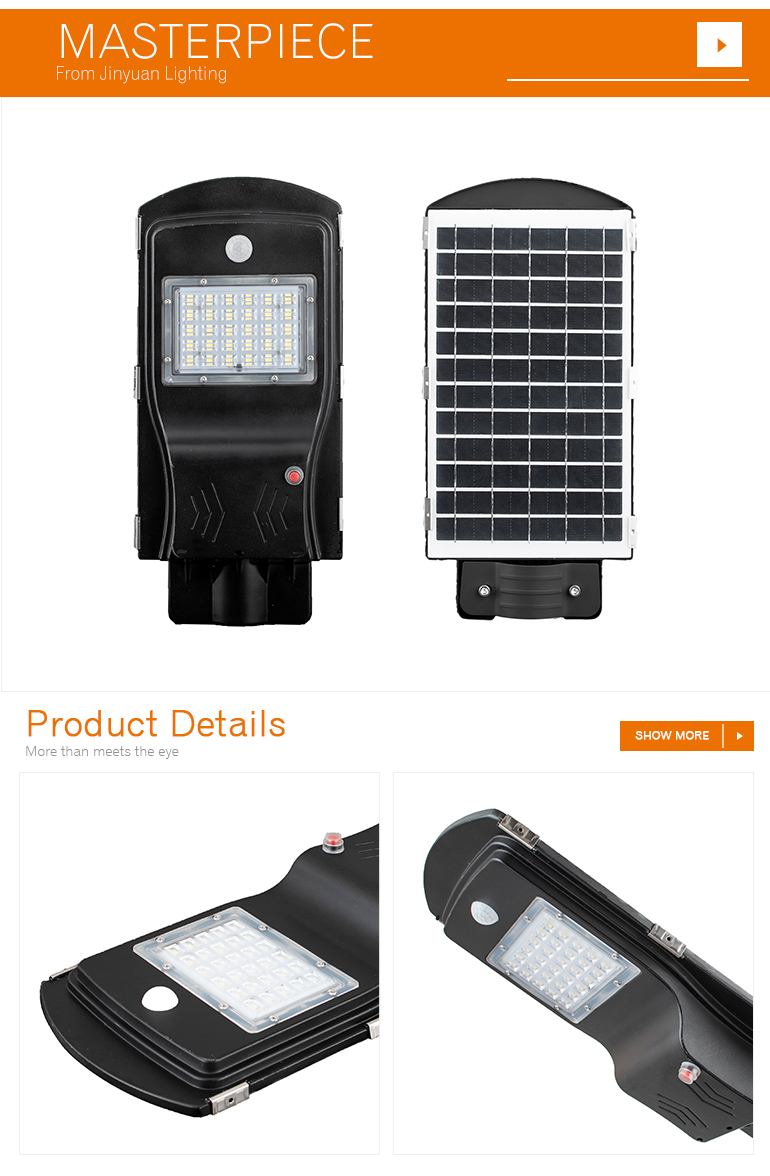

10W 20W 30W integrated street lamp solar power led street light
Click on the image to view the original image
Product： views：210W 20W 30W integrated street lamp solar power led street light
Branch： jinyuan lighting
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 18:39
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Input Voltage(V):
3.2V
Lamp Luminous Flux(lm):
600/1200/1800Lm
CRI (Ra>):
70
Working Temperature(℃):
0 - 50
Working Lifetime(Hour):
26280
IP Rating:
IP65
Certification:
CE, FCC
Warranty(Year):
1
Place of Origin:
Guangdong, China
Brand Name:
jinyuan lighting
Model Number:
LY04
Beam Angle(°):
60°*120°
Application:
ROAD
Color:
As picture
Power Supply:
Solar
Product name:
Solar street lamp led street light
CCT:
3000K-6500K
Length:
373mm/464mm/605mm
Width:
172mm/198mm/214mm
Height:
53mm
Material:
Aluminum
Sensor:
No
Storage temperature:
-20℃ - 60℃
Diameter of pole:
45mm
Certificate:
ISO9001-2008,OHSAS18001-2007,IEC61215,IEC61730,TUV,CE,FCC
Supply Ability
Supply Ability:
500 Piece/Pieces per Month solar street lamp led street light
Packaging & Delivery
Packaging Details
Box-> Carton box
10W 20W 30W integrated street lamp solar power led street light
Port
SHENZHEN
Video Description

10W 20W 30W integrated street lamp solar power led street light



Product Description

Product number:

LY04ALY04BLY04C
LED rated power(Max):10W20W30W
Lumen output(Max):600Lm1200Lm1800Lm
Beam angle:60°×120°
Solar panel nominal power:7.6W10.3W15.8W
Solar panel size:291.5*171.5*4.5mm383.5*194.5*4.5mm499*208.5*4.5mm
Solar panel voltage at Pmax(Vmp):5.5V5.5V6V
Solar panel current at Pmax(Imp):1.32A1.77A2.54A
Battery type:LiFePo4 32650
Battery nominal capacity:12Ah18Wh24Wh
Battery nominal voltage:3.2V
Battery BMS battery management system:No
-0℃ operation: No
Recommended height of installation:2-4M4-5M5-6M
