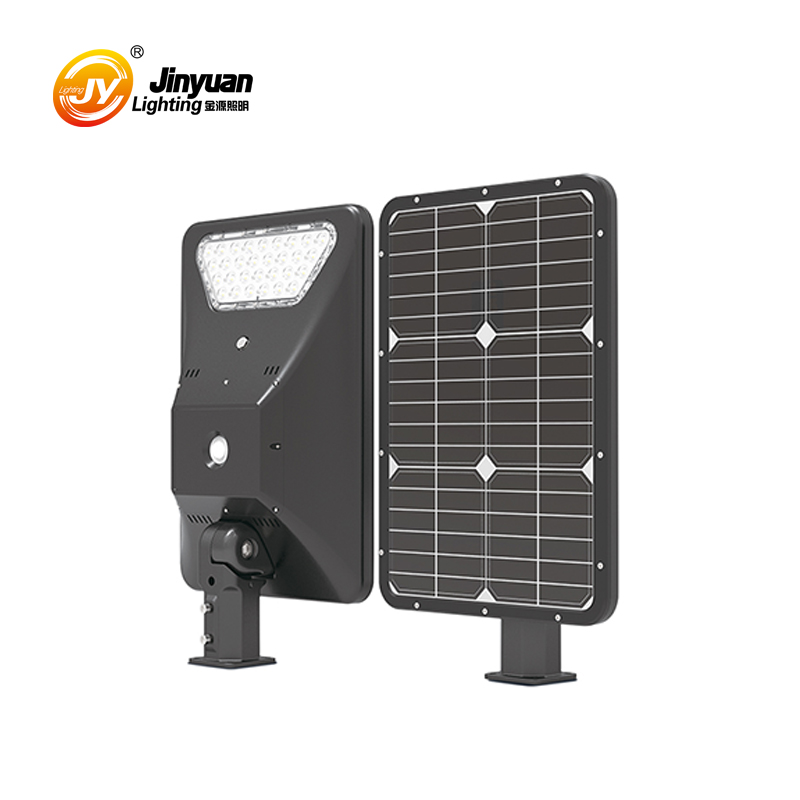

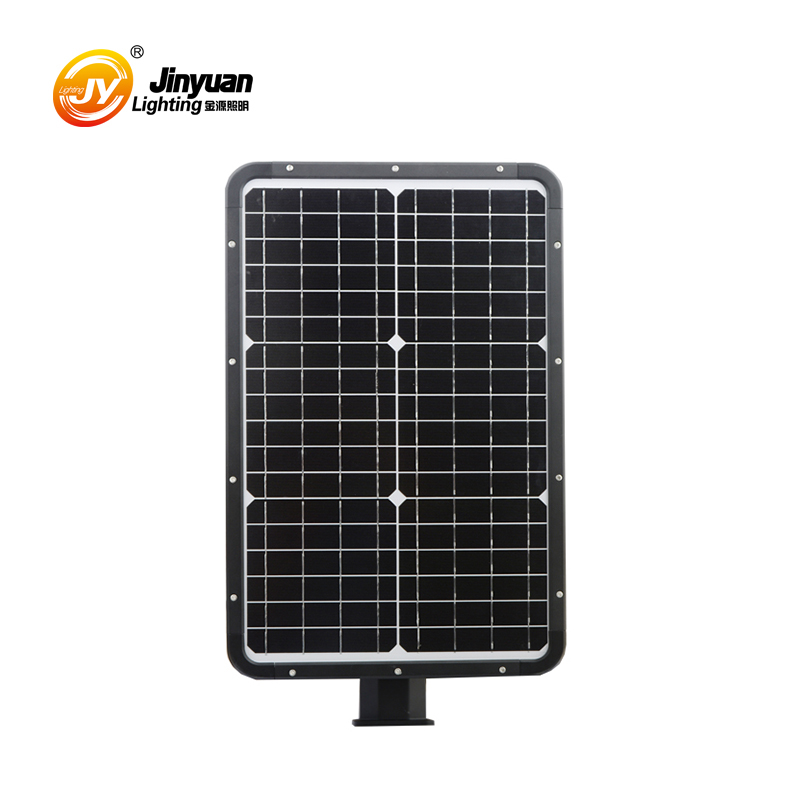

15W 30W lamp IP65 intelligent integrated panel solar led street light
Product Description
Product number: | LY01A | LY01B |
| LED rated power(Max): | 15W | 30W |
| Lumen output(Max): | 2400Lm | 4800Lm |
| Beam angle: | 60°×120° | 70°×140° |
| Solar panel nominal power: | 30W | 90W |
| Solar panel size: | 524.5*330*15mm | 818*490*15mm |
| Solar panel voltage at Pmax(Vmp): | 18V | 18V |
| Solar panel current at Pmax(Imp): | 1.56A | 4.95A |
| Battery type: | LiFePo4 | LiFePo4 |
| Battery nominal capacity: | 307Wh | 614.4Wh |
| Battery nominal voltage: | 12.8V | 12.8V |
| Battery BMS battery management system: | Yes | |
| -0℃ operation: | Extreme low temperature solution optional | |
| Recommended height of installation: | 4-6M | 6-8M |
