- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Model Number:
- DF-J-DY24
- Warranty:
- 24 Months
- Type:
- LED Rotation Beacon
- Certification:
- E-mark
- OE No.:
- Unknow
- Voltage:
- 10-32V
- Color:
- Amber
- Power:
- 24W
- Lumen:
- >2300LM
- Color Temperature:
- 900-2200K
- LED Chip:
- High performance Brand Chips
- Material:
- Aluminum Alloy
- Application:
- Outdoor
- Supply Ability:
- 5000 Piece/Pieces per Month
- Packaging Details
- 40pcs/CTN
- Port
- GZ

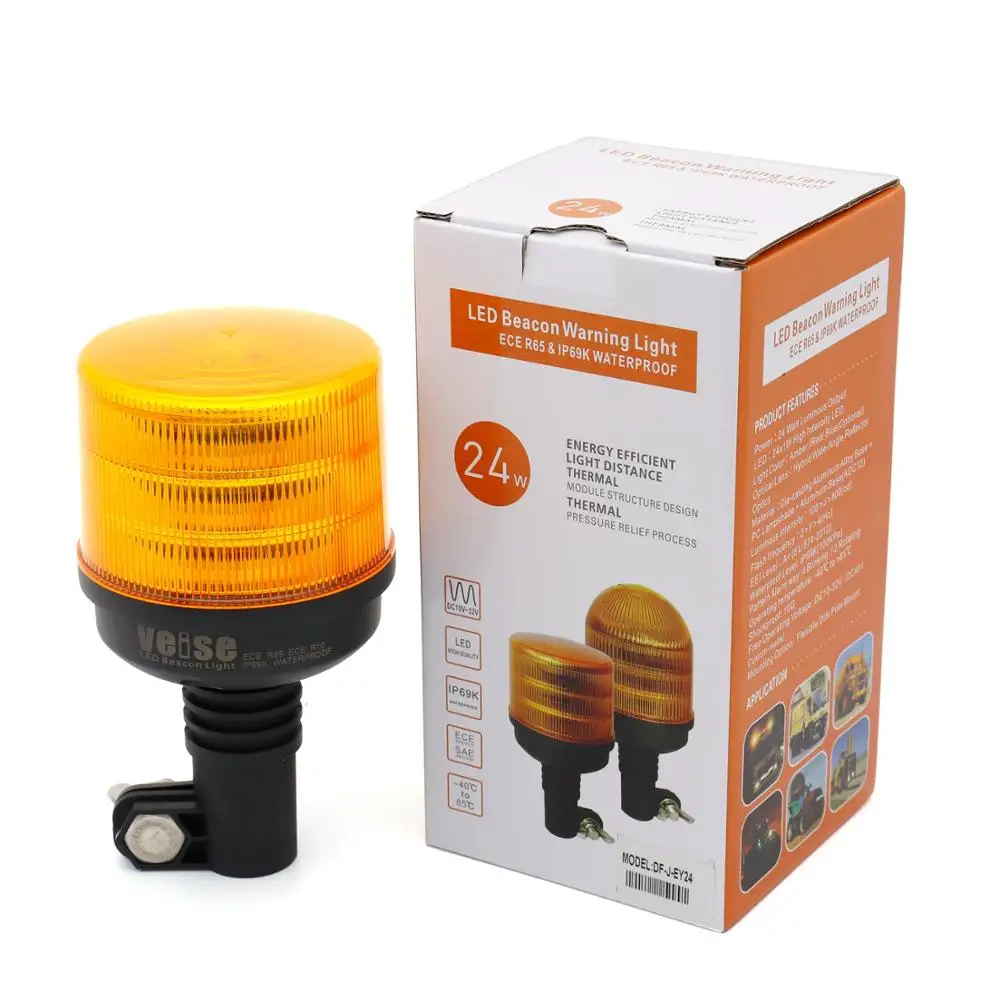

- Picture Example:
![package-img]()
Low Profile LED Beacon Warning Lights
LED Beacon Warning Light Power 24W
ECE R65/ R10(EMC) /SAE J845 Approval
IP69K(100KPa) Waterproof Level and Nitrogen filling for Anti-fog
Three High Optic Lens Improves the Visibility of the LEDs
Breath Patent Design Keep Antifogging of Air Pressure Batance
High Intensity Aluminum Alloy PCB Modules
Aluminum Alloy Base inside Alloy PCB,Alloy Pillar with Good Heat Dissipation Ensuring Stable Electrical Performancee
High Transmittance Impact Resistant Polycarbonate Dome
Universal Flexible Pipe Mount Compatible with all Vehicles
6 Selectable Memory Flash Patterns (Rotate,Single Flash,Double Flash,Quadruple Flash)
Reverse Polarity and Load Pulse Voltage Protection
LED Emergency Flash Strobe Beacon Warning Light for Agricultural Equipment,Farm Tractor,Heavy Equipment,Forklift,Municipal
MODEL:DF-J-DY24
Power: 24 Watt Luminous Output
Type of light source: 24x1W High Intensity LED"s
Waterproof Level:100% IP69K( 100KPa)
Light Color: Amber/ Red/ Blue (option)
EEI Level: A+ (EU 874-2012)
Visibility:360 Degree
Luminous intensity:100>J>600(cd)
Flash frequency:2>F>4(Hz)
Material:Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
Inner lens:Hybrid Wide-Angle Reflector Optics
Approval:ECE R65/ R10(EMC) /SAE J845 Class 1
Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch
Mounting Option: Flexible DIN Pole Mount
Operating temperature: -40℃ to +85℃
Work life:50000 Hours
Shockproof: 10G
Free Operating Voltage::DC10-32V(DC48V Custom-made)
Weight::500g
Dimensions:93(H) x112(D) mm
Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc.
