Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- LED
- Material:
- Cold Rolled Steel Sheet, Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
- Usage:
- Emergency
- Certification:
- CE
- Specifications:
- 24 X 1w
- Warranty(Year):
- 3-YEAR
- LED Light Source:
- High performance Brand Chips
- Color Temperature(CCT):
- 1800k amber
- Working Temperature(℃):
- -40 - 85 ℃
- Luminous intensity:
- 700 cd(0°~Night)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Free Operating Voltage:
- DC10-32V(DC48V Custom-made)
- Shockproof Rate:
- 10G
- Waterproof Rate:
- IP69K
- Warranty:
- 3 years
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- Standard Neutral Packing & As Requests
36pcs in a carton
carton size: 38*38*54cm
carton weight: 21.2kg
- Port
- Guangzhou/Shenzhen

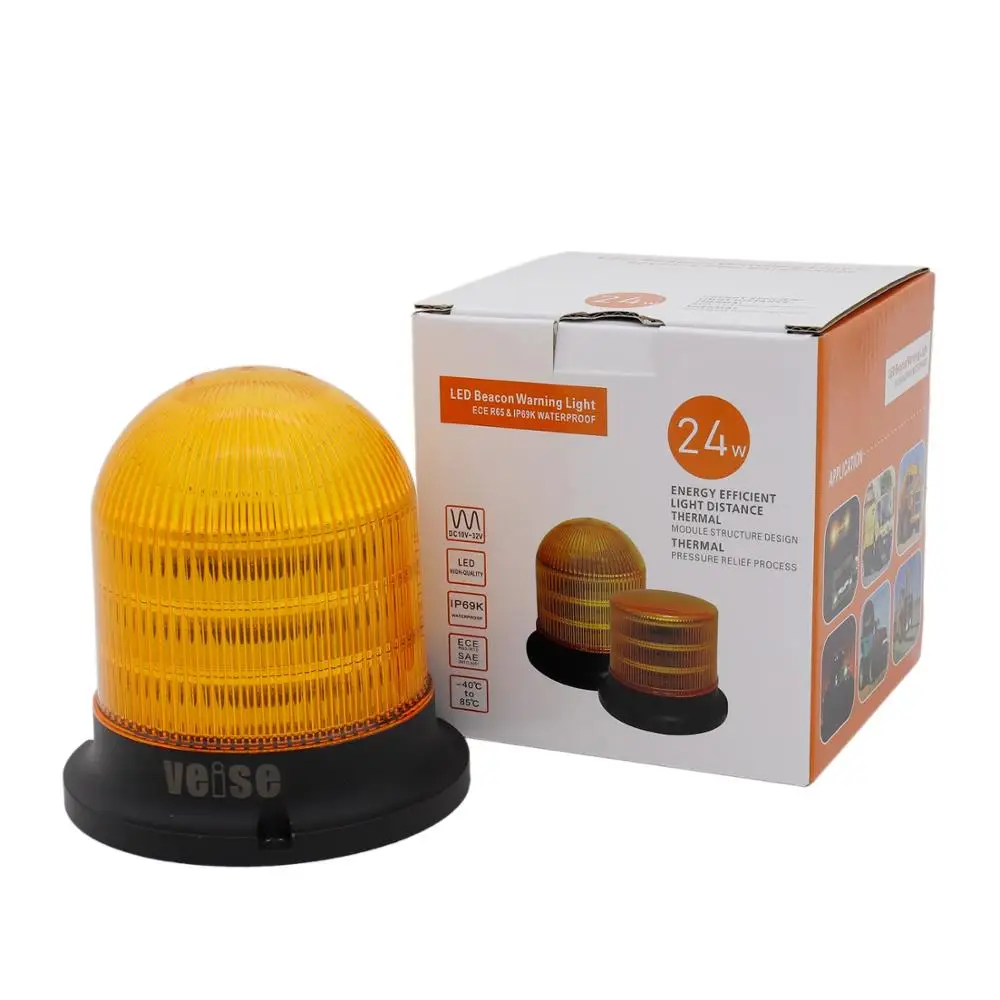

- Picture Example:
![package-img]()

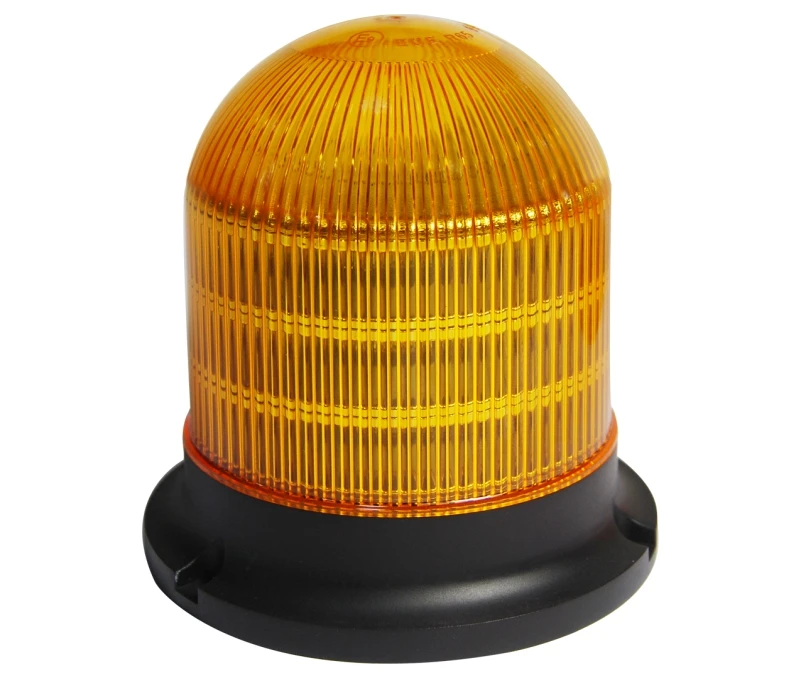

LED Strobe Beacon Warning Light for Agricultural Equipment
Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.
led beacon warning lights
High Intensity Light Source LED 24x1W
ECE R65/ R10(EMC) /SAE Class 1 Approval
100% Waterproof IP69K and 10G Vibration Rating
Hybrid Wide-Angle Optics Reflector Improves Visibility of the LEDs
Pressure Relief Valve Equalizes Internal and external Air Pressure to Ensure IP69K Waterproof Reliability and Lenses don"t Fog
Aluminum Alloy Base inside Alloy PCB and Low Power Consumption Circuit Design with Good Heat Dissipation Ensuring Stable Electrical Performance

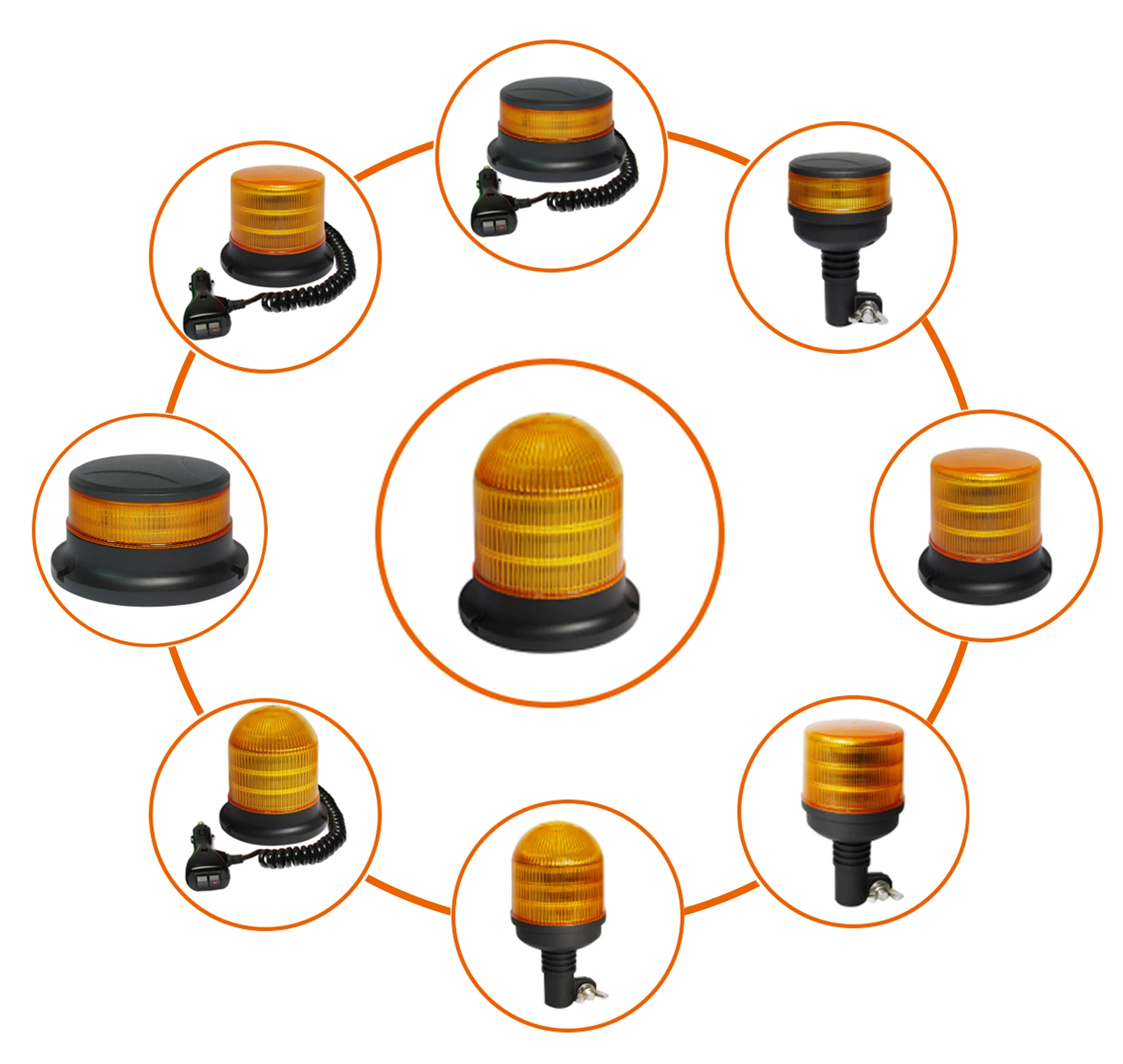

Magnetic Base or Fixed Bolt (option) Mount Compatible
6 Switch scintillation and rotation mode through external control line
Load Dump: DC14+67V(Td400mS) 5pulses
Surge Voltage Spike and High Voltage Current Protected
LED Emergency Flash Strobe Beacon Warning Light for Agricultural
| IP69K Waterproof LED Warning Lamp (MODEL:DF-J-CY24) |
| LED:24x1W High Intensity LED’s |
| Maximum Power Consumption: 28Watts |
| Maximum Luminous intensity:700 cd(0°~Night) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) /SAE J845 Class 1 |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6 + Switch scintillation and rotation mode through external control line |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column |
| Optics Inner Lens:Hybrid Wide-Angle Reflector *3 |
| Mounting: Magnetic Base or Fixed Bolt (option) |
| Load Dump: DC14+67V(Td400mS) 5pulses |
| Operating temperature: -40℃ to +65℃ |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::500g |
| Dimensions:117.5(H) x112(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |
