Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- LED
- Material:
- Cold Rolled Steel Sheet, Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
- Usage:
- Emergency
- Certification:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Specifications:
- 24x1W High Intensity LED's
- LED Light Source:
- High performance Brand Chips
- Color Temperature(CCT):
- 1800K (Amber)
- Luminous intensity:
- >250 cd(0°~Night)
- Free Operating Voltage:
- DC10-32V(DC48V Custom-made)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Optics Inner Lens:
- Hybrid Wide-Angle Reflector *3
- Shockproof Rate:
- 10G
- Waterproof Rate:
- 100% IP69K(100KPa)
- Brand:
- VEISE
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Standard Neutral Packing
36pcs in a carton
carton size: 38*38*54 CM
carton weight: 21.1kg
- Port
- guangzhou/shenzhen

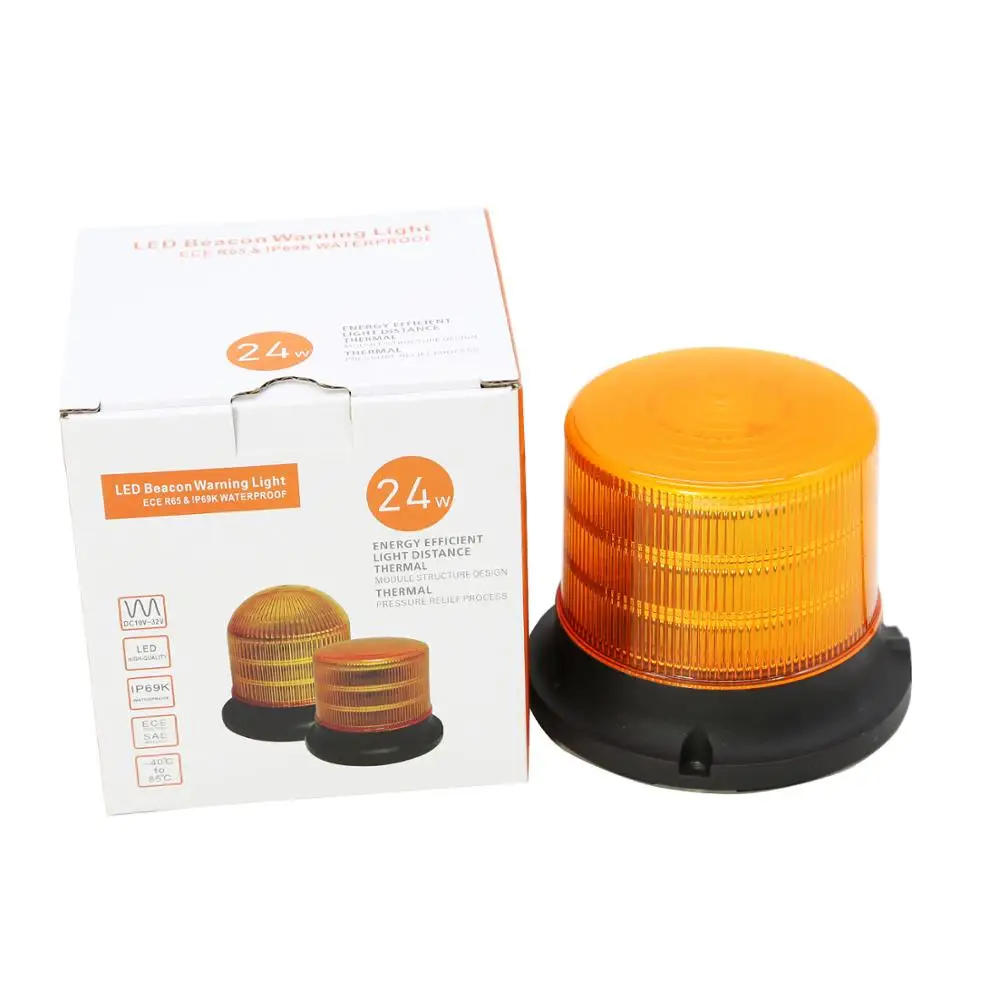

- Picture Example:
![package-img]()
IP69K 100% Waterproof Amber Alarm Warning Light for Engineering Trunk
Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.
| IP69K Waterproof LED Warning Lamp (MODEL:DF-J-BY24) |
| LED:24x1W High Intensity LED’s |
| Maximum Power Consumption: 28Watts |
| Luminous intensity:>250 cd(0°~Night) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) /SAE J845 Class 1 |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6 + Switch scintillation and rotation mode through external control line |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column |
| Optics Inner Lens:Hybrid Wide-Angle Reflector *3 |
| Mounting: Magnetic Base or Fixed Bolt (option) |
| Operating temperature: -40℃ to +65℃ |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::500g |
| Dimensions:93(H) x112(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |
