Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- LED
- Material:
- Cold Rolled Steel Sheet, Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
- Usage:
- special vehicles, off-road vehicles, ATV
- Certification:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Specifications:
- 48x0.5W High Intensity LED's
- LED Light Source:
- High performance Brand Chips
- Luminous intensity:
- >300 cd(0°~Night)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Free Operating Voltage:
- DC10-32V(DC48V Custom-made)
- EEI:
- A+
- Shockproof Rate:
- 10G
- Waterproof Rate:
- IP69K
- Brand:
- VEISE
- Warranty:
- 3years
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Standard Neatrual Packing
45PCS in a carton
carton size: 38*38*39CM
carton weight: 22.6kg
- Port
- guangzhou/shenzhen

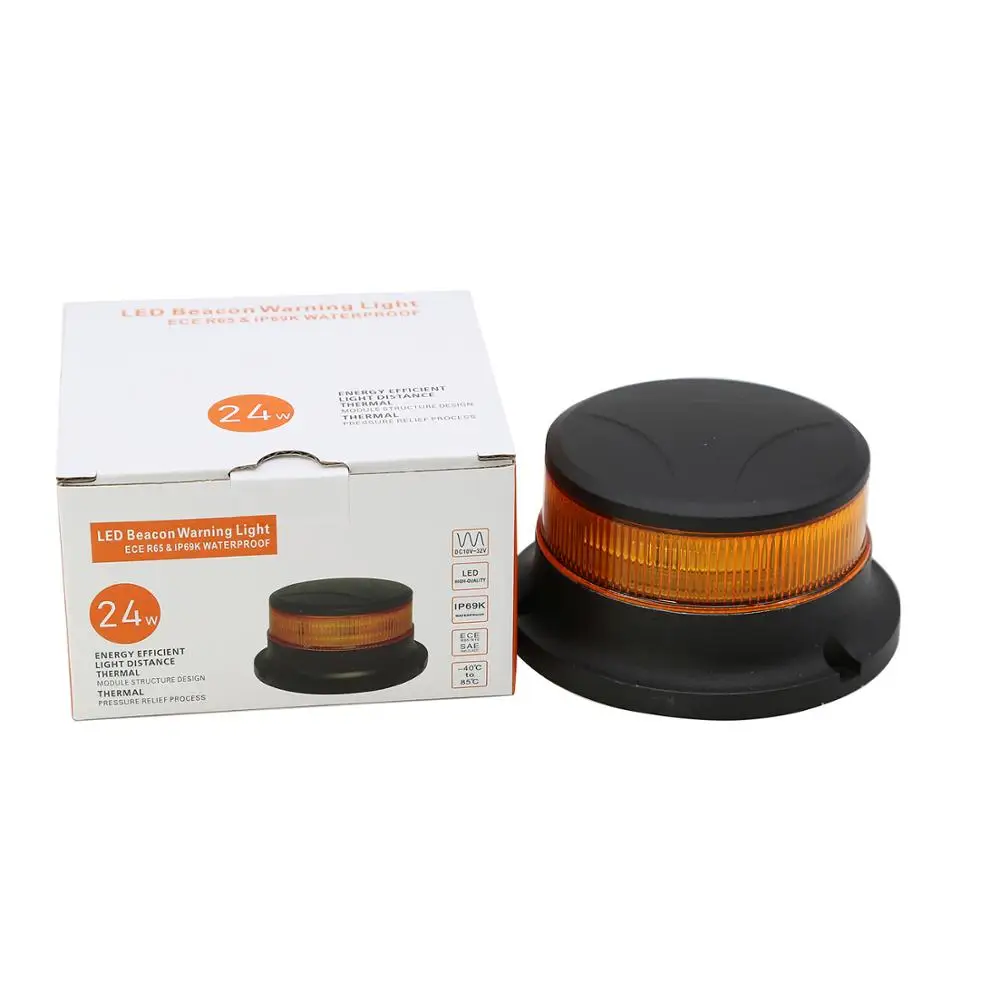

- Picture Example:
![package-img]()
Product Description
VEISE Magnetic Warning Strobe Light LED Beacon for truck
Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.
| Low Profile LED Warning Lamp (MODEL:DF-J-AY24) |
| LED:48x0.5W High Intensity LED’s |
| Maximum Power Consumption: 28Watts |
| Luminous intensity:>300 cd(0°~Night) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) /SAE J845 Class 1 |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6 + Switch scintillation and rotation mode through external control line |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Cover |
| Optical Inner Lens:PMMA Acrylic |
| Mounting Option: Magnetic Base or Fixed Bolt |
| Operating temperature: -40℃ to +65℃ |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::450g |
| Dimensions:60(H) x112(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |
