Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- High Intensity LED's
- Material:
- Die-casting Aluminum Alloy Base, Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
- Usage:
- agricultural machinery, ambulances, forklifts
- Certification:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Specifications:
- 24x1W High Intensity LED's
- Warranty(Year):
- 3-YEAR
- LED Light Source:
- High performance Brand Chips
- Color Temperature(CCT):
- 1800K (Amber)
- Working Temperature(℃):
- -40℃ to +65℃
- Luminous Intensity:
- 700 cd(0°~Night)
- Flash Frequency:
- 2 Hz ≤F ≤ 4 Hz
- Waterproof Rate:
- IP69K
- Operating Voltage:
- DC10-32V(DC48V Custom-made)
- Approval:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Warranty:
- 3 Years
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Standard Neutral Packing
36pcs in a carton
carton size: 38*38*54 CM
carton weight: 21.2kg
- Port
- guangzhou/shenzhen

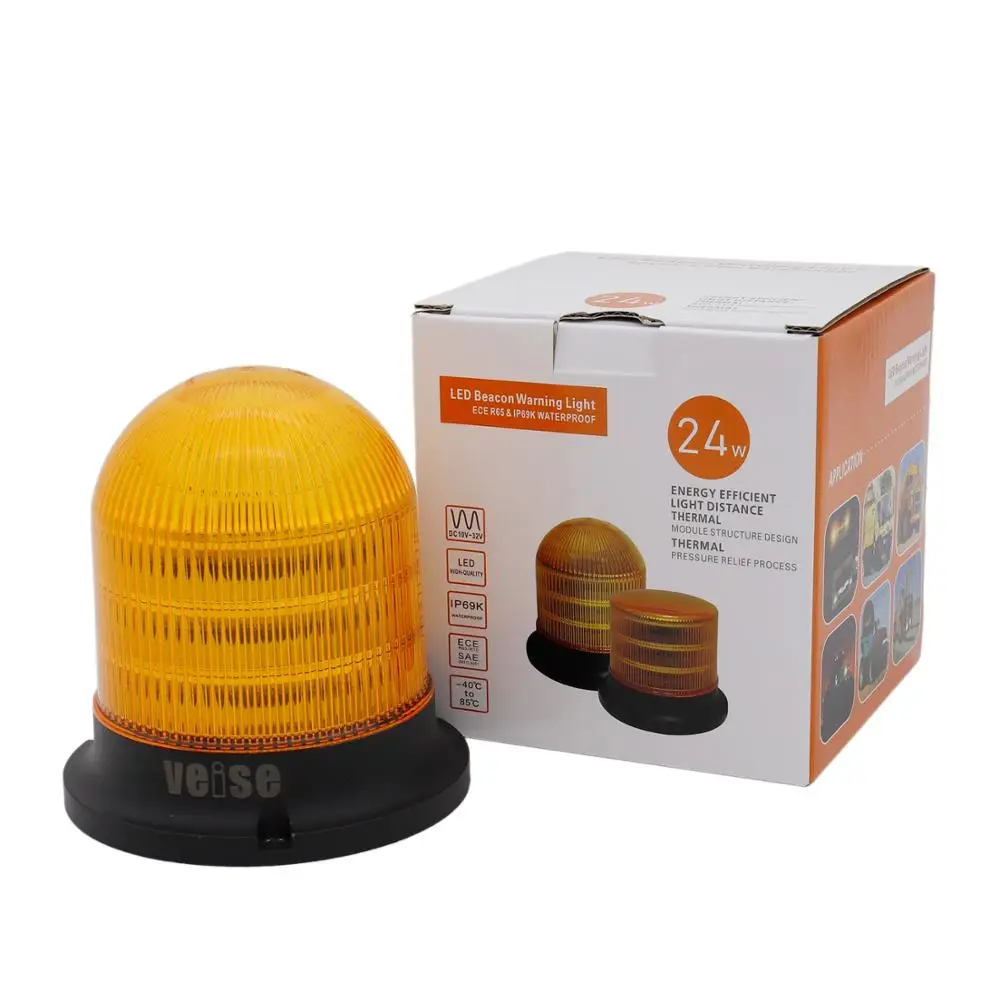

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 10 To be negotiated
24W 10-32V LED Emergency Flash Strobe Rotating Beacon Lights with Magnetic Mounting
Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.
| IP69K Waterproof LED Warning Lamp (MODEL:DF-J-CY24) |
| LED:24x1W High Intensity LED’s |
| Maximum Power Consumption: 28Watts |
| Maximum Luminous intensity:700 cd(0°~Night) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) /SAE J845 Class 1 |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6 + Switch scintillation and rotation mode through external control line |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column |
| Optics Inner Lens:Hybrid Wide-Angle Reflector *3 |
| Mounting: Magnetic Base or Fixed Bolt (option) |
| Load Dump: DC14+67V(Td400mS) 5pulses |
| Operating temperature: -40℃ to +65℃ |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::500g |
| Dimensions:117.5(H) x112(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |
