Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- High Intensity LED's
- Material:
- Cold Rolled Steel Sheet, Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
- Usage:
- construction vehicles
- Certification:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Specifications:
- 24x1W High Intensity LED's
- LED Light Source:
- High performance Brand Chips
- Color Temperature(CCT):
- 1800K (Amber)
- Luminous intensity:
- >250 cd(0°~Night)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Free Operating Voltage:
- DC10-32V(DC48V Custom-made)
- Approval:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Working Temperature(℃):
- -40℃ to +65℃
- Shockproof:
- 10G
- Waterpoof Level:
- IP69K
Supply Ability
- Supply Ability:
- 20000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Standard Neutral Packing
24PCS in a carton
carton size: 43.5*33*42.5
carton weight: 16kg
- Port
- guangzhou/shenzhen

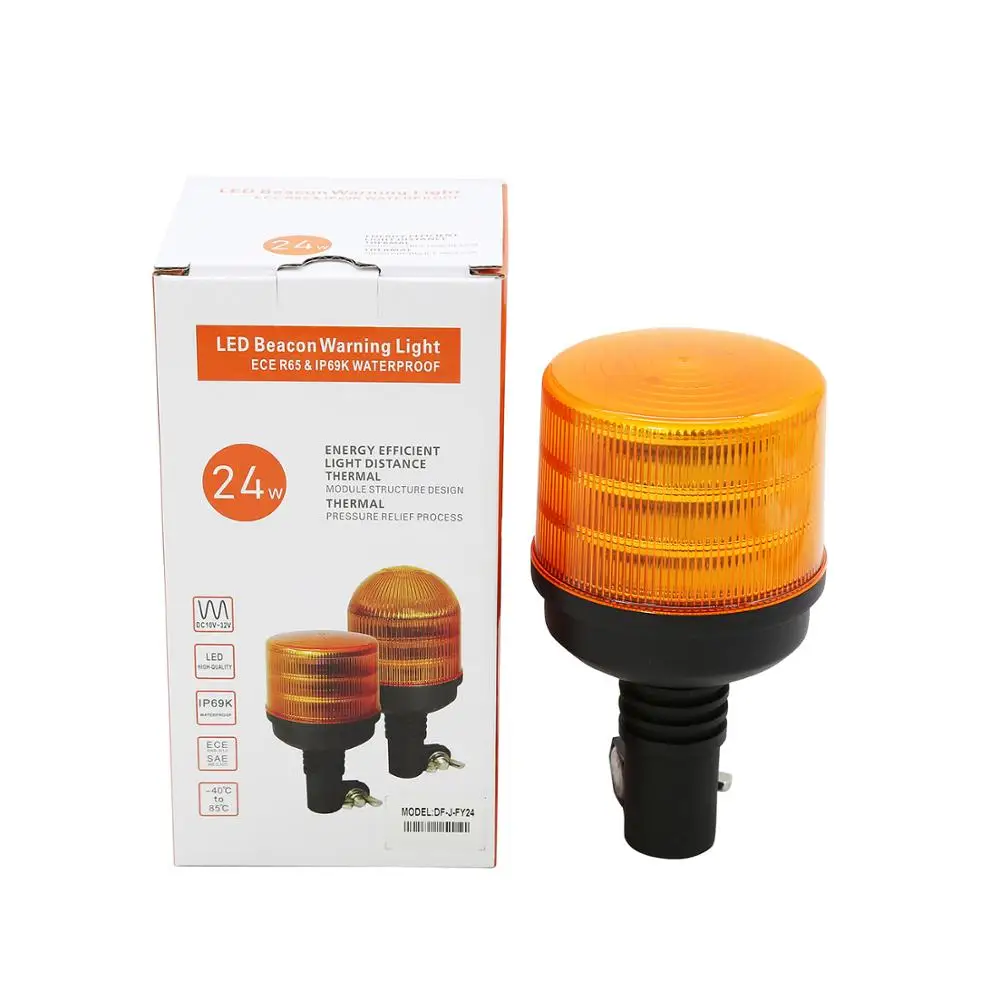

- Picture Example:
![package-img]()
10-32V Forklift Amber LED Flash Strobe Emergency Warning Rotating Beacon Light
Replacing old incandescent lighting with the latest LED technology provides an optimum warming signal image with low power consumption. The combination of thermal management and optics in one module makes an incredible compact design possible. polycarbonate lense is highly impact resistant and extremely durable.
| IP69K Waterproof LED Warning Lamp (MODEL:DF-J-EY24F) |
| LED:24x1W High Intensity LED’s |
| Maximum Power Consumption: 28Watts |
| Luminous intensity:>250 cd(0°~Night) |
| Waterproof Rating:100% IP69K(100KPa) |
| Color Temperature: 1800K (Amber) |
| Flash frequency:2 Hz ≤F ≤ 4 Hz |
| Approval:ECE R65/ R10(EMC) /SAE J845 Class 1 |
| Light Color: Amber/ Red/ Blue (option) |
| Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch |
| Visibility: 360 Degree |
| Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column |
| Optics Inner Lens:Hybrid Wide-Angle Reflector *3 |
| Mounting: Flexible DIN Pole Mount |
| Operating temperature: -40℃ to +65℃ |
| Warranty: 3 years |
| Shockproof: 10G |
| Free Operating Voltage::DC10-32V(DC48V Custom-made) |
| Weight::600g |
| Dimensions:167(H) x93(D) mm |
| Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc. |
