Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- LED
- Material:
- Cold Rolled Steel Sheet
- Usage:
- safety
- Certification:
- ECE R65/ R10(EMC) /SAE J845 Class 1
- Specifications:
- 24 X 1w
- Type of light source:
- 24x1W High Intensity LED's
- Color Temperature(CCT):
- 1800K (Amber)
- Luminous intensity:
- >250 cd(0°~Night)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Approval:
- ECE R65 /SAE J845 Class 1
- Alarm way:
- 6+Flashing & Rotating Patterns
- Operating temperature:
- -40℃ to + 85℃
- Waterproof Rate:
- 100% IP69K(100KPa)
- Shockproof Rate:
- 10G
- Warranty:
- 3 Years
- Supply Ability:
- 40000 Piece/Pieces per Month
- Packaging Details
- 36PCS/CARTON OEM
carton size: 38*38*54 CM
carton weight: 21.1kg
- Port
- Guangzhou, Huangpu, Shenzhen

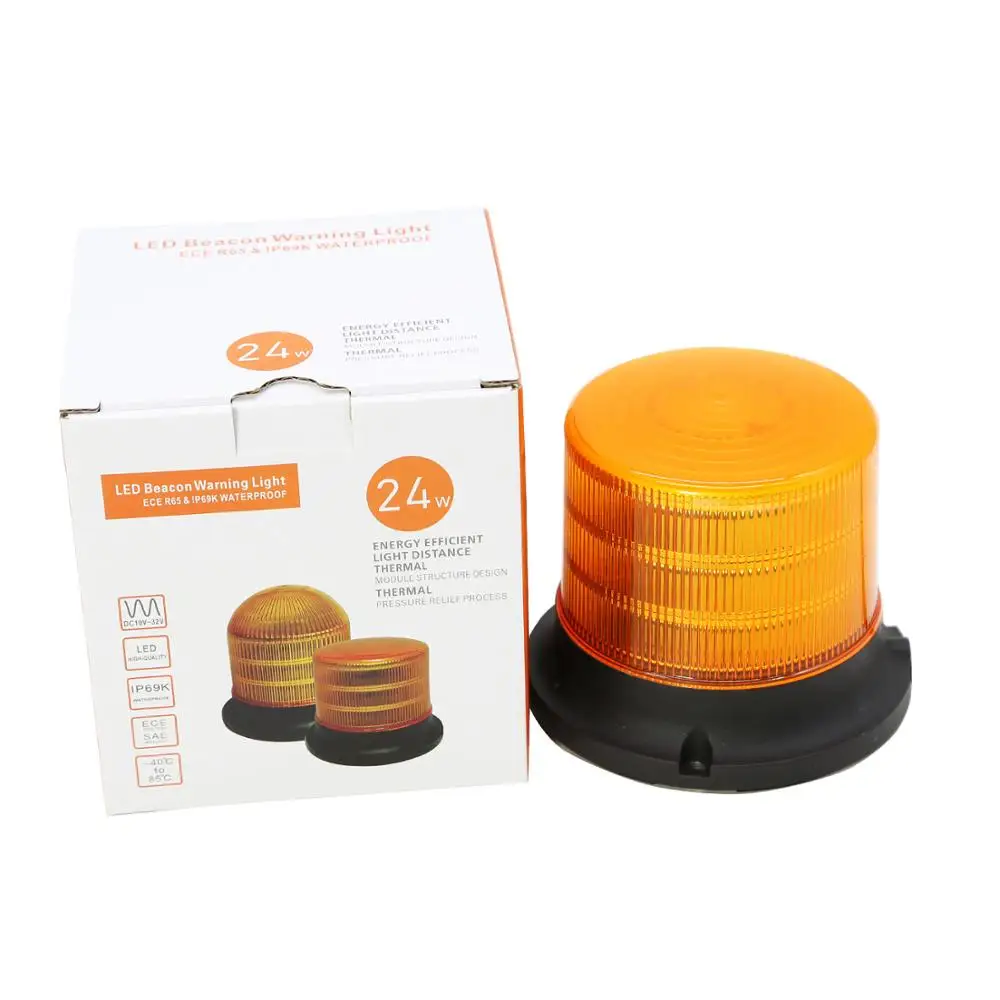

- Picture Example:
![package-img]()
24W LED Flashing Rotating Amber Beacon Flexible Strobe Tractor Warning Light NEW
LED Beacon Warning Light Power 24W
ECE R65/ R10(EMC) /SAE J845 Approval
IP69K(100KPa) Waterproof Level and Nitrogen filling for Anti-fog
Superior Optical Lens Design Improves the Visibility of the LEDs
Breath Patent Design Keep Antifogging of Air Pressure Balance
High Intensity Aluminum Alloy PCB Modules
Aluminum Alloy Base inside Alloy PCB,Alloy Pillar with Good Heat Dissipation Ensuring Stable Electrical Performancee
High Transmittance Impact Resistant Polycarbonate Dome
Universal Flexible Pipe Mount Compatible with all Vehicles
6 Selectable Memory Flash Patterns (Rotate,Single Flash,Double Flash,Quadruple Flash)
Reverse Polarity and Load Pulse Voltage Protection
LED Emergency Flash Strobe Beacon Warning Light for Agricultural Equipment,Farm Tractor,Heavy Equipment,Forklift,Municipa
Product Technical Parameter
IP69K Waterproof LED Warning Lamp (MODEL:DF-J-BY24F)
Power:24 Watt Luminous Output
Type of light source:24x1W High Intensity LED"s
Waterproof Level:100% IP69K(100KPa)
Light Color: Amber/ Red/ Blue (option)
EEI Level: A+ (EU 874-2012)
Visibility:360 Degree
Luminous intensity: >250(cd)
Flash frequency:2 Hz ≤F ≤ 4 Hz
Material:Die-casting Aluminum Alloy Base + PC lampshade + aluminum base(ADC12)
Inner lens:Hybrid Wide-Angle Reflector Optics
Approval:ECE R65/ R10(EMC) /SAE J845 Class 1
Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch
Mounting Option: Flexible DIN Pole Mount
Operating temperature: -40℃ to +85℃
Work life:50000 Hours
Shockproof: 10G
Free Operating Voltage::DC10-32V(DC48V Custom-made)
Weight::600g
Dimensions:193(H) x93(D) mm
Packing Details : Packing, solid bicycle saddle
Delivery Details : 3-30 days after payment
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to your order quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and the freight is at customer"s expense.
Q: What is your terms of payment ?
A: Payment≤10000USD, 100% in advance. Payment>10000USD, 30% T/T in advance, balance before shippment.
Or any proposals from you would be highly appreciated.
