Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- VEISE
- Bulb Type:
- LED
- Material:
- Alluminum
- Usage:
- construction vehicles
- Certification:
- ECE R65 /SAE J845 Class 1
- Specifications:
- 24x1W High Intensity LED's
- Type of light source:
- 24*1W LED
- Luminous intensity:
- >250 cd(0°~Night)
- Flash frequency:
- 2 Hz ≤F ≤ 4 Hz
- Approval:
- ECE R65 /SAE J845 Class 1
- EEI Level:
- A+ (EU 874-2012)
- Waterproof Rate:
- 100% IP69K(100KPa)
- Alarm way:
- 6+Flashing & Rotating Patterns
- Operating temperature:
- -40℃ to +85℃
- Warranty:
- 3Years
- Supply Ability:
- 40000 Piece/Pieces per Month
- Packaging Details
- 36PCS/CARTON
24pcs in a carton
carton size: 43.5*33*42.5
carton weight: 16.1kg
- Port
- Guangzhou, Huangpu, Shenzhen

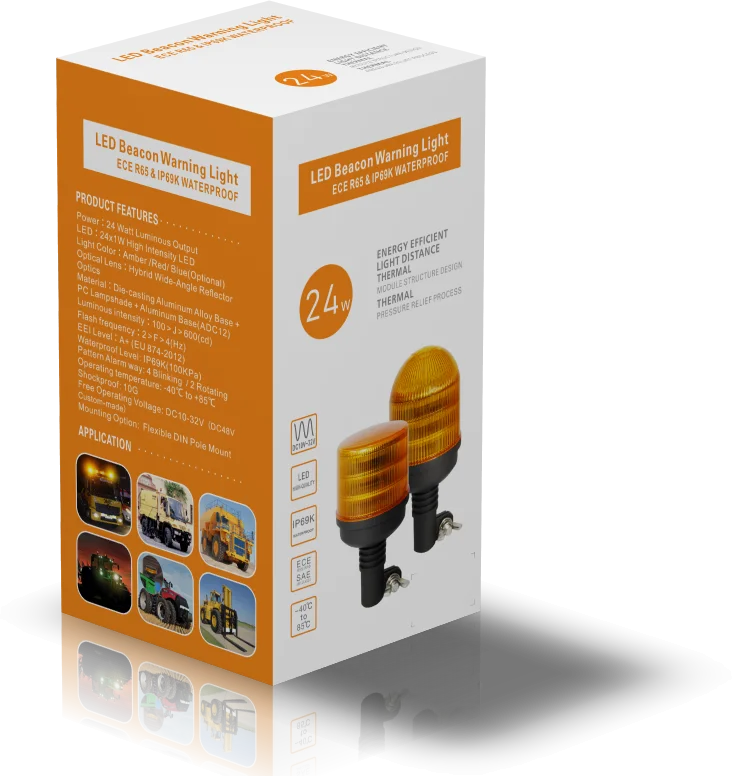

- Picture Example:
![package-img]()
24W Amber LED Warning Strobe Beacon Flashing Light meet ECE R65 Regulation, Waterproof IP69K
LED Beacon Warning Light Power 24W
ECE R65/ R10(EMC) /SAE J845 Approval
IP69K(100KPa) Waterproof Level and Nitrogen filling for Anti-fog
Superior Optical Lens Design Improves the Visibility of the LEDs
Breath Patent Design Keep Antifogging of Air Pressure Batance
High Intensity Aluminum Alloy PCB Modules
Aluminum Alloy Base inside Alloy PCB,Alloy Pillar with Good Heat Dissipation Ensuring Stable Electrical Performancee
High Transmittance Impact Resistant Polycarbonate Dome
Universal Flexible Pipe Mount Compatible with all Vehicles
6 Selectable Memory Flash Patterns (Rotate,Single Flash,Double Flash,Quadruple Flash)
Reverse Polarity and Load Pulse Voltage Protection
LED Emergency Flash Strobe Beacon Warning Light for Agricultural Equipment,Farm Tractor,Heavy Equipment,Forklift,Municipal
Product Technical Parameter
IP69K Waterproof LED Warning Lamp (MODEL:DF-J-FY24F)
LED:24x1W High Intensity LED"s
Maximum Power Consumption: 28Watts
Luminous intensity:>250 cd(0°~Night)
Waterproof Rating:100% IP69K(100KPa)
Color Temperature: 1800K (Amber)
Flash frequency:2 Hz ≤F ≤ 4 Hz
Approval:ECE R65/ R10(EMC) /SAE J845 Class 1
Light Color: Amber/ Red/ Blue (option)
Alarm way:6+Flashing & Rotating Patterns via Internal Momentary Switch
Visibility: 360 Degree
Material:Die-casting Aluminum Alloy Base + PC Lampshade + Aluminum Alloy Heat Dissipation Column
Optics Inner Lens:Hybrid Wide-Angle Reflector *3
Mounting: Flexible DIN Pole Mount
Operating temperature: -40℃ to +65℃
Warranty: 3 years
Shockproof: 10G
Free Operating Voltage::DC10-32V(DC48V Custom-made)
Weight::600g
Dimensions:193(H) x93(D) mm
Widely used in construction vehicles (excavators, logging machines, rollers bulldozers, cranes, mining vehicles, agricultural machinery, ambulances, forklifts) special vehicles, off-road vehicles, ATV and other vehicle lighting and mining field patrols and other special or mobile environment lighting etc.
30W LED WARNING LAMP
24W LED WARNING LAMP
24W LED WARNING LAMP
Waterproof: IP69K(100KPa)
Packing Details : Packing, solid bicycle saddle
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for charge and do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>10000USD, 30% T/T in advance ,balance before shippment.
