- Place of Origin:
- Guangdong, China
- Brand Name:
- VeiseCar Back Up Camera System
- Model Number:
- DF-7270112Car Back Up Camera System
- Sensor:
- CCD
- Special Features:
- Waterproof / Weatherproof
- Display Resolution:
- 2400(H) X 480(V) dot
- Cameras Video Inputs:
- 1.0Vp-p75Ω
- Back-light ::
- Single LED 400cd/m2 Brightness
- Operating temperature::
- -20℃ to +70℃
- Load Dump::
- DC14+67V(Td400mS) 5pulses
- Free Operating Voltage:
- DC8-32V
- External dimensions:
- L*W*T(180X118X38)mm(without mounting)
- Supply Ability:
- 10000 Piece/Pieces per Week any quantity of Car Back Up Camera System is accept

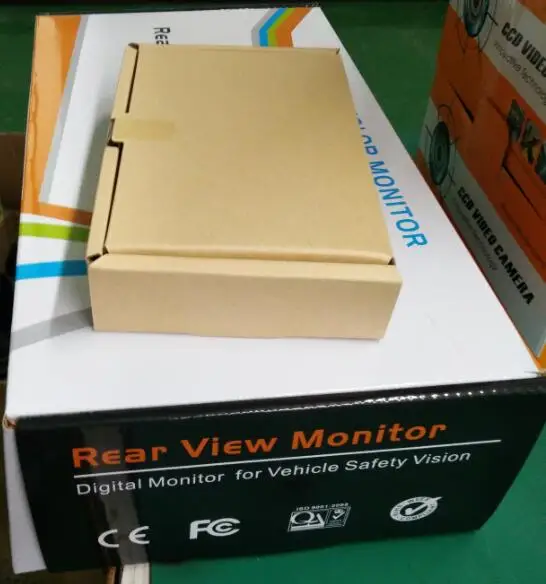

- Packaging Details
- U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,27M cable, Auto cigarette lighter,User's Manual
- Port
- huangpu
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Municipal Vehicle Rear View System
7" Digital Screen TFT LCD Monitor Free Operating Voltage DC11-32V, DC14+87V(Td400mS) 5pulses Load Dump,400cd/m2 Brightness
Application USA Techwell Automotive Digital Video Processor,OSD Menu Separately Set Each Camera Mirror/Normal image,Trigger Priority of image,Reversing Image Delay Time 0-30"
Auto Shutter Backup Camera Automatic Motorized Protection Shutter Sunvisor to Block the Sludge into the Camera,IP69K Waterproof and 10G Vibrationfo, 12pcs IR LED's for Picture Support in the Dark.
7 inches Digital Screen TFT LCD Color Monitor(Model:SP-727N)
Digital Screen TFT LCD Color Monitor with Removable Sun Visor
OSD MENU Separately Set Each Camera Trigger Priority
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30"
OSD MENU Separately Set Each Camera Mirror/Normal image
Manual and Automatic Switch Display Mode
Color System:PAL/NTSC (AUTO)
Display Resolution: 2400(H) X 480(V) dot
Accepts up to 2 Cameras Video Inputs:1.0Vp-p75Ω
Wide view angle(CR:10):(up/ down): 50/70 (left/right): 70/70
Contrast ratio: 500:1
Back-light : Single LED 400cd/m2 Brightness
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Load Dump: DC14+67V(Td400mS) 5pulses
Free Operating Voltage DC8-32V
External dimensions:L*W*T(180X118X38)mm(without mounting)
Weight Approx: 379g
Mini Aluminum Shell Waterproof IR Color Camera(MODEL:DF-8033)
Image Type: 1/3 inch Color CCD
Horizontal Resolution:600TV Lines
Effective pixel:PAL: 920L×582V NTSC: 940L×494V
Usable Illumination : 0Lux ( Built in 6pcs IRfor Picture Support in the Dark)
Free viewing angle: 130°
Waterproof: IP69K
Shockproof: 10G
Video Output:1.0Vp-p75Ω
Power supply:DC12V from Reversing Monitor
Dimensions: 55(L) x 62(W) x 62(H)mm
Product Accessories
U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,15m cable, Auto cigarette lighter,User's Manual
