Brand New V-Shaped T8 Led Tube Lights 39W 6FT 1.8m Integrated Led Fluorescent Lamp 270 Angle Double row Cool White v shape tube

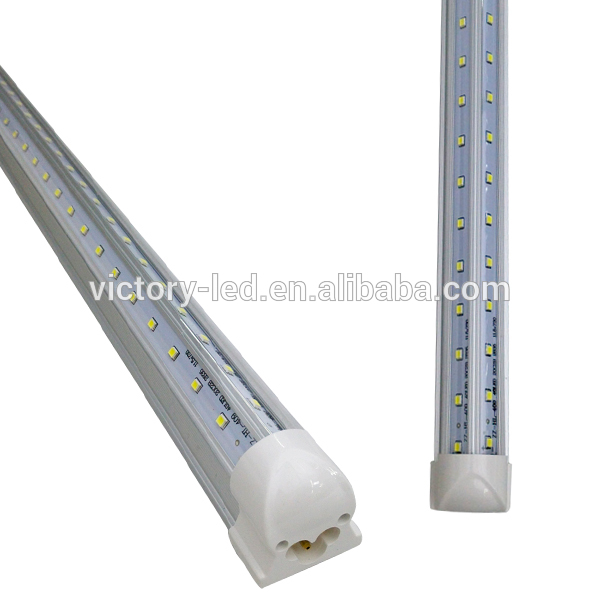

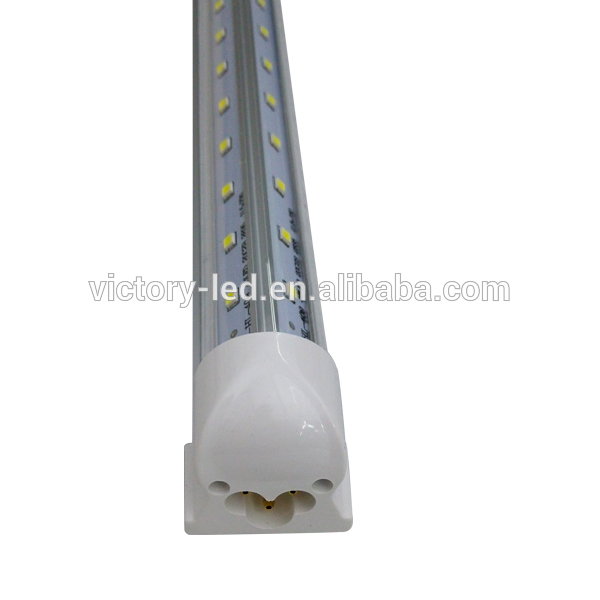

Pictures of V shape Led tube light :
Specifications of V shape Led tube light :
| Item Number | WYP718-1800mm-39W | |
| Description | LED tube | |
| Input Voltage: | 85~265V ac | |
| Frequency Range | 50Hz~60Hz | |
| Driver type | no-Isolated drive | |
| Power Factor | > 0.95 | |
| LED Working Voltage | DC30~36V | |
| Application | cooler, freezer, showcase;office;hoetl;room; supermarket;school etc | |
| Color rending index | Ra>80 | |
| LED Consumption | 39W | |
| LED Luminous Efficiency | >100 lm/W(when clear cover) | |
| LED Initial Flux | CW: 3900lm | |
| Lamp Efficiency | > 90% | |
| Net weight | 520g/pc | |
| Beam Angle | 270degree | |
| Lens options | clear | |
| Warranty | 3 years | |
| Color Temperature | warm white: 3,000K~3,200K natural white: 4,000K~4,500K cool white: 6,000K~6,500K | |
| Certificates | CE(EMC+LVD), RoHS | |
| Light Distribution | sysmmetric/ rectangle | |
| Junction Temperature | < 80 centigrade | |
| Operation Temperature | from -20 centigrade to + 50 centigrade | |
| IP Grade | IP44 | |
| Life Span | at least 50, 000 hours | |
| Size | 1800*26*26mm | |
| Housing Material | Aluminum | |
Production for V shape Led tube light:
Test of V shape Led tube light:
Features of V shape Led tube light :
1) Power Saving: The new led tube light t8 are 80% energy saving than traditional fluorescent, energy saving 90% than incandescent.
2) Wide Beam Angle 270 °: The new led tube light t8 use two single Aluminum plate as PCB board and pc casing as shell, emitting angle up to 270 °, effectively expanding the scope and broaden horizons luminous.
3. Optional PC Cover: The new led tube light t8 are with optional cover. Transparent & Stripes cover (light transmittance up to 95%) or expansion mask (soft light, no glare light transmission rate up to 85%)
4. Optional Base Type: G13 Base, Bracket base, Single Pin base. Up to your preference.
5. Optional Color Temperature: The new led tube light t8 are with wider range. Warm White(2700K-4500K), Pure White(6000K-6500K) & Cool White(7000K-7500K).
6. No ghost, no dizziness for this new led tube light t8.
Certificates of V shape Led tube light :
Applications of V shape Led tube light :
Production&Quality Control of V shape Led tube light :
1.QC in every production process
2.Great material for heat sink:
72Hrs for aging light soure,
72Hrs for aging IC,compacitor,and resistor
ETL 18W led tube Light ,25pcs/box , 128*25*24cm/box
