Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- winston
- Model Number:
- NDR150-24
- Output Power:
- 101 - 200W
- Output Type:
- Single
- Input Voltage:
- 20A/115VAC 35A/230VAC
- Output Voltage:
- 24V
- Output Frequency:
- 47-63Hz, 47-63Hz
- Output Current:
- 6.5A/5.2A
- Efficiency (Typ.):
- 87.00%
- Line Regulation:
- ±0.5%
- Dimension:
- 40*125.2*113.5mm (W*H*D)
- Certifications:
- CE
- Working Temperature:
- 20~+70℃
Supply Ability
- Supply Ability:
- 10000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Power Supply 35w 24v
60pcs/carton,15.5kgs/carton
Carton size:42.5*29*25.5mm
- Port
- ningbo
- Lead Time:
Quantity(Pieces) 1 - 1000 >1000 Est. Time(days) 10 To be negotiated
Product Description

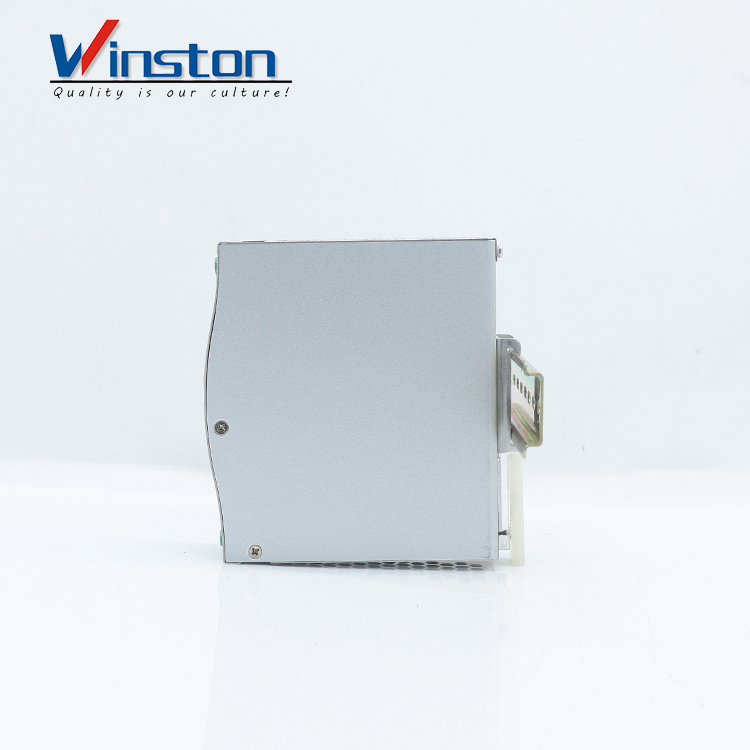

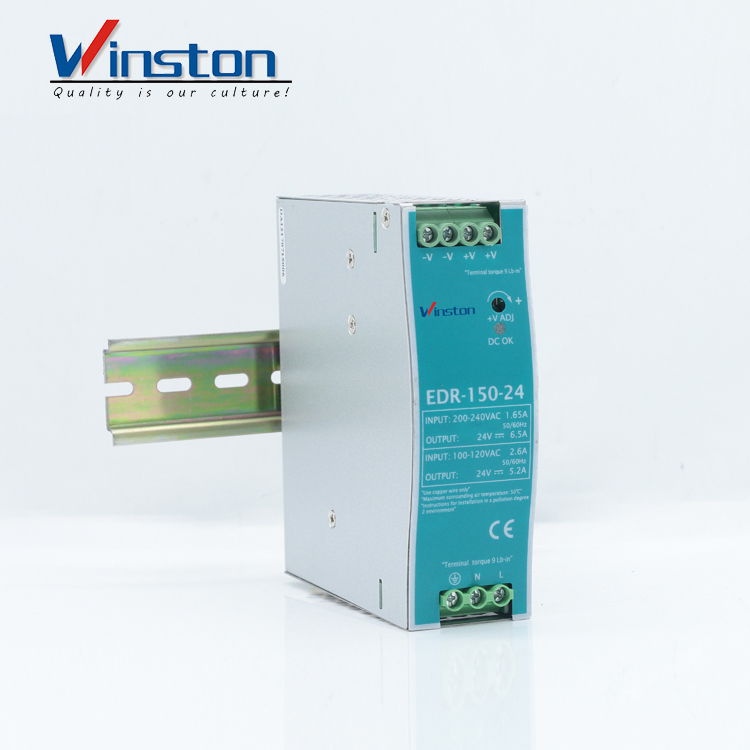

Winston NDR150-24 Single Output 24V 150W Din Rail Switching Power Supply
- Universal AC Input/Full range
- Protection: short-circuit/ overload/ over voltage/Over temperature
- Cooling by free air convection
- Can be (industrial control equipment) listed
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- Low cost
- 2 years warranty
Model / Specification | NDR-150-24 | |
OUTPUT | DC Voltage | 24V |
Rated Current | 6.5A / 230VAC 5.2A / 115VAC | |
Current Range | 0 ~ 6.5A / 230VAC 0 ~ 5.2A / 115VAC | |
Rated Power | 156W / 230VAC 125W / 115VAC | |
Ripple & Noise | 150mVp-p | |
(Max) Note 2 | ||
Voltage ADJ. Range | 24 ~ 28V | |
Voltage Tolerance Note 3 | ± 1.0% | |
Line Regulation | ± 0.5% | |
Load Regulation | ± 1.0% | |
Setup, Rise Time | 1500ms, 60ms/230VAC | |
3000ms, 60ms/115VAC at full load | ||
Hold up Time (Typ.) | 16ms/230VAC 10ms/115VAC at full load | |
INPUT | Voltage Range | 90~264VAC 127~370VDC |
(DC input operation possible by connecting AC/L(+),AC/N(-) | ||
Frequency Range | 47-63Hz | |
Efficiency (Typ.) | 87.00% | |
AC Current (Typ.) | 2.6A/115VAC 1.7A/230VAC | |
Inrush Current (Typ.) | 20A/115VAC 35A/230VAC | |
Leakage Current | <1mA/240VAC | |
PROTECTION | Overload | 105~130% rated output power |
Protection type : Constant current limiting, | ||
recovers automatically after fault condition is removed / 230VAC | ||
Over Voltage | 29 ~ 33V | |
Protection type: Shut down o/p voltage, re-power on to recover | ||
Over Temperature | Shut down o/p voltage, re-power on to recover | |
ENVIREMENT | Working Temperature | `-20℃~+60℃ (Refer to Output "Derating Curve") |
Working Humidity | 20%~95% RH non-condensing | |
Storage Temperature | `-40℃~+85℃, 10~95% RH | |
and Humidity | ||
Temp. Coefficient | ±0.03%/°C(0~50°C) | |
Vibration | Component:10~500Hz, 2G 10min/1cycle, 60min. | |
Each along X,Y,Z axes; Mounting; Compliance to IEC60068-2-6 | ||
SAFETY & EMC | Safety Standards | U508, TUV EN60950-1 approved;(meet EN60204-1) |
(Note 4) | Withstand Voltage | I/P-O/P;3KVAC I/P-FG;2KVAC I/P-FG;0.5KVAC |
Isolation Resistance | I/P-O/P,I/P-FG, O/P-FG;>100M Ohms/500VDC/25℃/70%RH | |
EMC Emission | Compliance to EN55022 (CISPR22) Class A, | |
EN61000-3-2, Class A (≤80% Load), EN61000-3-3 | ||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, | |
EN61000-6-2 (EN50082-2), heavy industry level, criteria A | ||
OTHERS | MTBF | 472.5K hrs min. MIL-HDBK-217F (25°C ) |
Dimension | 40*125.2*113.5mm (W*H*D) | |
Packing | 0.6Kg; 20pcs/13Kg/1.16CUFT |
