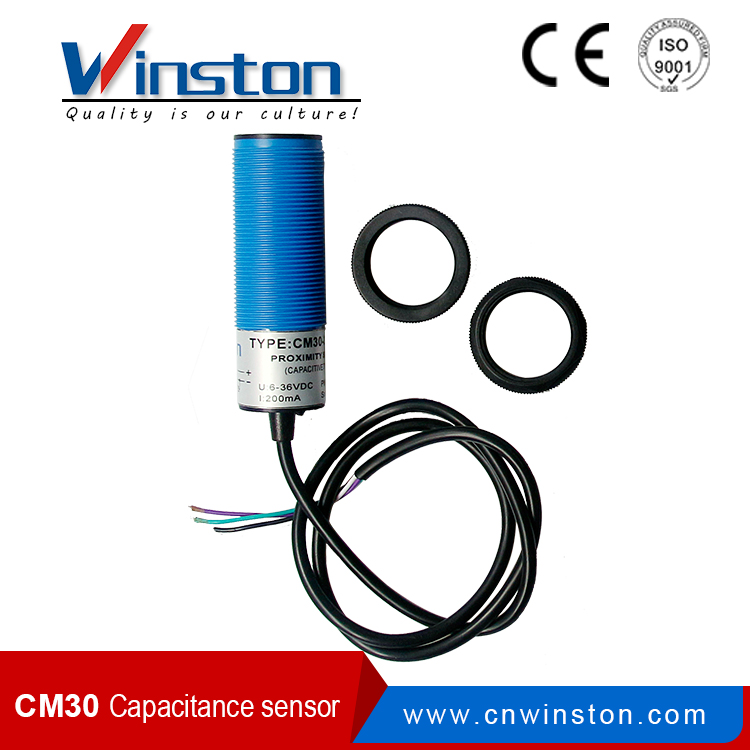

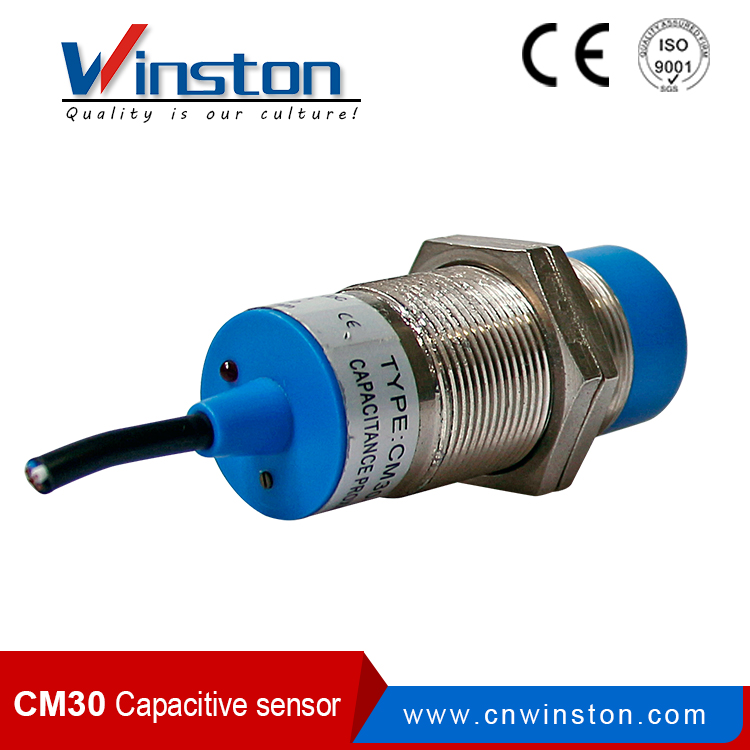

CM30 Waterproof Digital 0-15mm Capacitive Sensor Switch 12V
Application
Technical data
| Model NO. | Detection distance | Working voltage | Output | Type | |
| Form | State | ||||
| CM30-3010NA | 0-10mm | DC10-300V AC90-250V | NPN | NO | Flush |
| CM30-3010NB | NC | ||||
| CM30-3010NC | NO+NC | ||||
| CM30-3010PA | PNP | NO | |||
| CM30-3010PB | NC | ||||
| CM30-3010PC | NO+NC | ||||
| CM30-2010A | SCR Control label silicon | NO | |||
| CM30-2010B | NC | ||||
| CM30-3015NA | 0-15mm | NPN | NO | Non-flush | |
| CM30-3015NB | NC | ||||
| CM30-3015NC | NO+NC | ||||
| CM30-3015PA | PNP | NO | |||
| CM30-3015PB | NC | ||||
| CM30-3015PC | NO+NC | ||||
| CM30-2015A | SCR Control label silicon | NO | |||
| CM30-2015B | NC | ||||
| Output voltage drop DC/AC | DC<3V AC<7V | |||
| Consumption current | DC<15mA AC<10mA | |||
| Detected object | Conductor and Directric Body | |||
| DC/AC Response frequency | 50Hz/10Hz | |||
| Working environment temperature | –25℃~70℃ | |||
| Insulation resistance | 50MΩ | |||
| Shell material | Two type: ABS Resin and Metal | |||
| Protection grade | IEC standard IP54 | |||
Dimension
