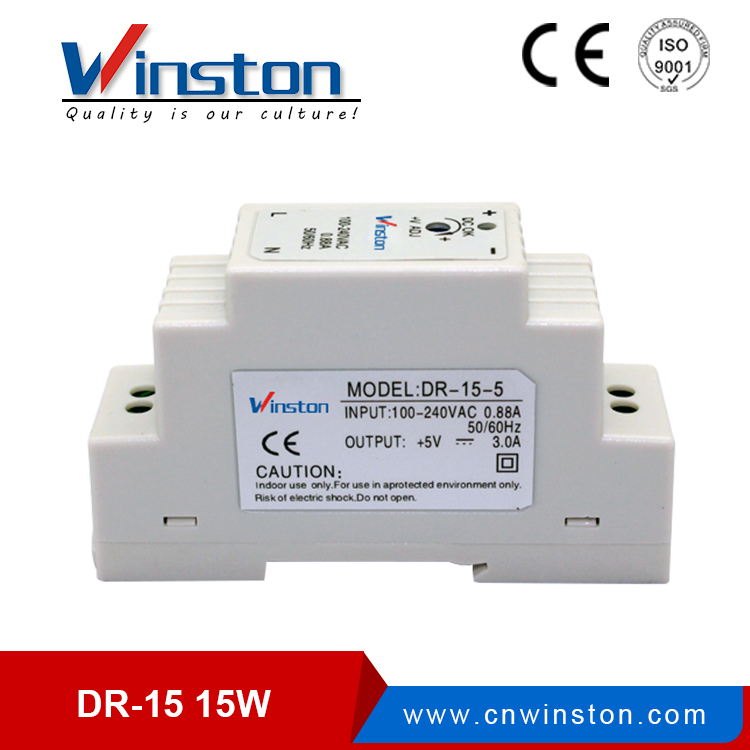

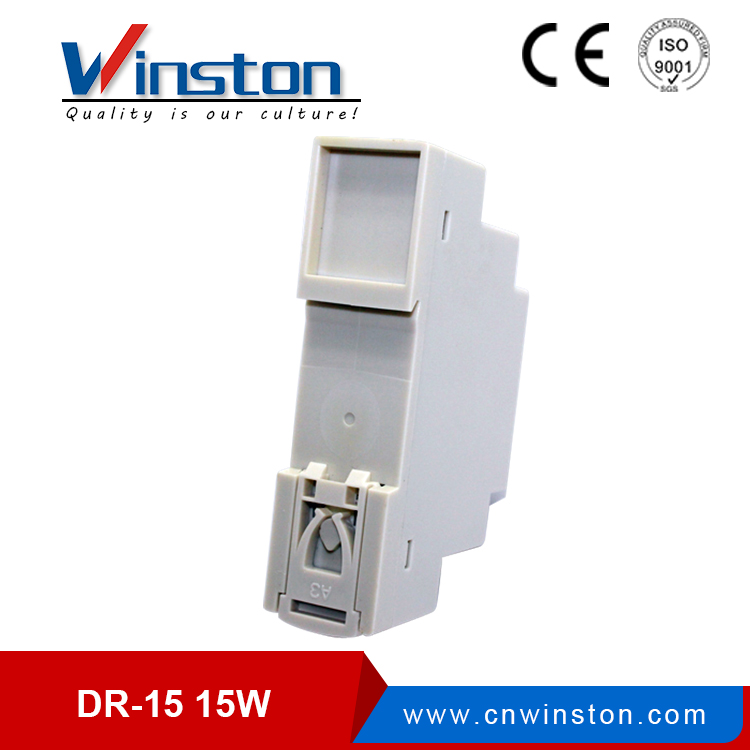

WINSTON DR-15 Single 15W 5V 2.4A 12V 1.25A 15V 1A 24V 0.63A Din rail AC DC Power Supply

Click on the image to view the original image

Product：	views：3WINSTON DR-15 Single 15W 5V 2.4A 12V 1.25A 15V 1A 24V 0.63A Din rail AC DC Power Supply
Branch：	WINSTON
Type：	Electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:17

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: WINSTON

Model Number:: DR-15

Output Power:: 1 - 50W

Output Type:: Single

Input Voltage:: 85~264VAC/120~370VDC

Output Frequency:: 50/60Hz

Output Current:: 0.63A~2.4A

Application:: Led Strip

Certification:: CE

Warranty:: 2 years

Product Name:: AC DC power supply

Type:: Electric

Protections:: Short Circuit Overload Overvolt

Efficiency:: 85%

Protection:: Over-voltage

Size:: 25*93*56mm

Name:: 15v power supply

Output Voltage:: 5VDC 12VDC 15VDC 24VDC

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 0.2 KG/4X11X7 cm

Port: ningbo

WINSTON DR-15 Single 15W 5V 2.4A 12V 1.25A 15V 1A 24V 0.63A Din rail AC DC Power Supply

Other products

	S Series 15W 25W 35W 50W 60W 75W 100W 120W 145W 150W 200W 201W 250W 350W 400W 500W 600W SCN-600 SCN-800 SCN-1500
	DR Series 30W 45W 60W 75W 120W 240W
	MDR Series 10W 40W 60W 100W
	LPV Series 15W 20W 30W 50W 60W 100W 150W 200W 250W
	NES Series 15W 25W 35W 50W 75W 100W 150W 200W 350W
	LRS Series 35W 50W 75W 100W 150W 200W 350W
	PFC Function Series SP-75W SP-100W SP-150W SP-200W SP-320W SP-500W
	MS Series 15W 25W 35W 50W 60W 75W 100W 120W 150W
	More

Application

Technical data

Model		DR-15-5	DR15-12	DR-15-15	DR-15-24
OUTPUT	DC Voltage	5V	12V	15V	24V
	Rated Current	2.4A	1.25A	1A	0.63A
	Current Range	0-2.4A	0-1.25A	0-1A	0-0.63A
	Rated Power	12W	15W	15W	15.2W
	Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
	Voltage Adj. Range	-5%,+10%	±10%	±10%	±10%
	Voltage Tolerance	±2%	±1%	±1%	±1%
	LINE REGULATION	±1%	±1%	±1%	±1%
	LOAD REGULATION	±1%	±1%	±1%	±1%
	Setup, Rise, Hold Up Time	1000ms, 50ms/230VAC 1000ms, 50ms/115VAC at full load 70ms/230VAC
	HOLD UP TIME (Typ.)	16ms/115VAC at full load
INPUT	Voltage Range	85 ~ 264VAC 120 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	AC Current	0.88A/115VAC 0.48A/230VAC
	Efficiency	77%	84%	83.50%	85%
	Inrush Current	COLD START 35A/115VAC 65A/230VAC
PROTECTION	Over Load	105%~160% rated output power
	Over Load	Protection type: Constant current limiting, recovers automatically after fault condition is removed
	Over Voltage	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
	Over Voltage	Protection type : Shut off o/p voltage, clamping by zener diode
ENVIRONMENT	Working Temp.	-20℃~+60℃(Refer to "Derating Curve")
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	Storage Temp., Humidity	-40 ~ +85 , 10 ~ 95% RH
	Temp. Coefficient	±0.03%/℃(0~50℃)
	Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY & EMC	Withstand Voltage	I/P-O/P: 3KVAC
	Isolation Resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 70% RH
	EMC EMISSION	Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
OTHERS	MTBF	1172.3K hrs min. MIL-HDBK-217F (25 ℃)
OTHERS	DIMENSION	259356mm (WHD)
