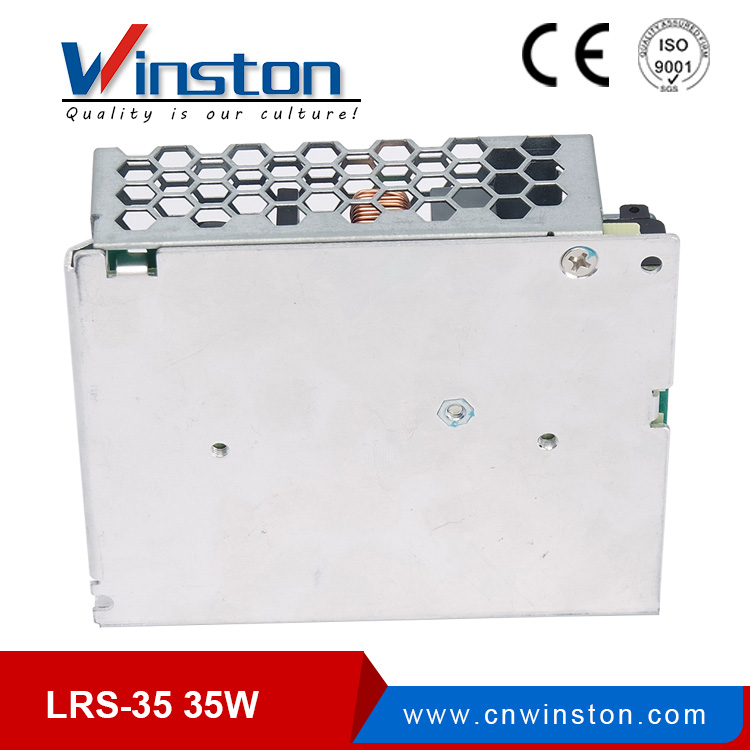

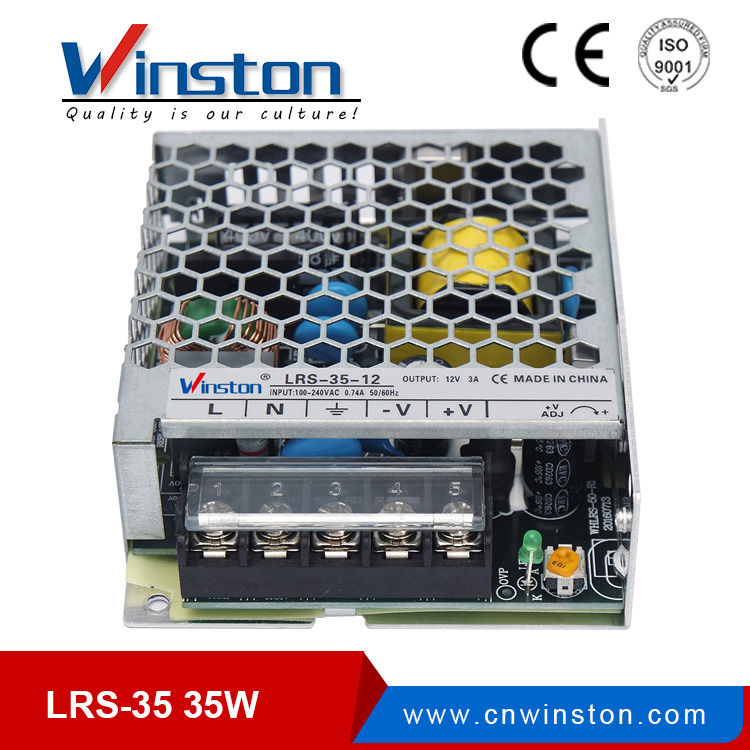

LRS-35 Ultrathin Efficiency Type 35W 5V 12V 15V 24V 36V 48V Power Supply

Click on the image to view the original image

Product：	views：3LRS-35 Ultrathin Efficiency Type 35W 5V 12V 15V 24V 36V 48V Power Supply
Branch：	WINSTON
Type：	Electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:17

Product Details

Overview

Quick Details

Supply Ability

Packaging & Delivery

Application

Technical data

Model	LRS-35-5	LRS-35-12	LRS-35-15	LRS-35-24	LRS-35-36	LRS-35-48
Dc output voltage	5V	12V	15V	24V	36V	48V
Rated output current	7A	3A	2.4A	1.5A	1A	0.8A
Output current rage	0-7A	0-3A	0-2.4A	0-1.5A	0-1A	0-0.8A
Rated Power	35W	36W	36W	36W	36W	38.4W
Wave and noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p	200mVp-p	200mVp-p
Voltage ADJ. range	4.5-5.5V	10.2-13.8V	13.5-18V	21.6-28.8V	32.4-39.6V	43.2-52.8V
Voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±1%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	82%	86%	86%	88%	88%	89%
AC input voltage range	AC85~264V 47~63Hz;120~373VDC
Input current	0.7A/115V 0.42A/230V
AC Inrush current	Cold-start 45A/230V
Overload proctection	110%~150% Potection type: Hiccp mode,recobers automatically after condition is recoverd
Over-voltage protection	5.75-6.9V	13.8-16.2V	18.75-21.75V	28.8-33.6V	41.4-48.6V	55.2-64.8V
Over-voltage protection	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	1000ms,30ms/230VAC 2000ms,30ms/115VAC at full lod
Hold up time	30ms/230VAC ,12ms/115VAC at full lod
Withstand voltage	I/P-O/P:3.75KVAC,I/P-FG:2KVAC,O/P-FG: 1.25KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Safety standards	Meet ULGB4943 UL60950 EN60950
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Working temperature	70°C
Overall dimension	998230mm
Weight	0.23Kgs
