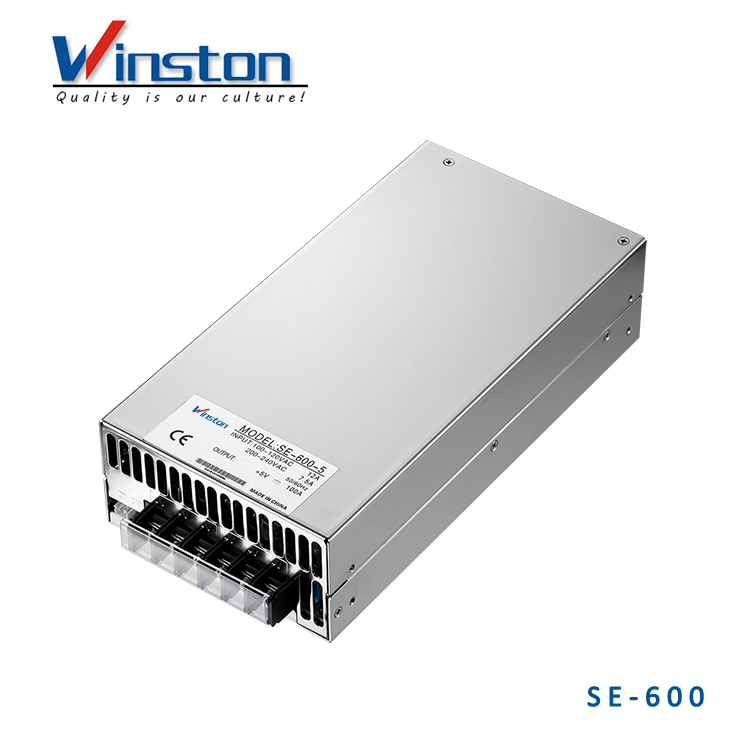

Factory SE-600 Single Output 12V 50 amp 5V 24V 48V 600W Power Supply Units
Application
Technical data
| Model | SE-600-5 | SE-600-12 | SE-600-24 | SE-600-48 |
| Specification | ||||
| DC output voltage | 5V | 12V | 24V | 48V |
| DC output current | 0-100A | 0-50A | 0-25A | 0-12.5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 180mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±1% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 78% | 83% | 87% | 88% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||
| AC Impact current | Cold-start current 25A/115VAC 50A/230VAC | |||
| Overload proctection | 105%-150% cut off the output, automatic recovery | |||
| Over-voltage protection | 115%-140% shut down O/P voltage, re-power on to recover | |||
| Setup rise hold up time | 1000ms, 50ms, 16ms/230VAC at full load | |||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||
| Overall dimension | 247*127*63.5mm | |||
| Weight | 2.17Kgs | |||
