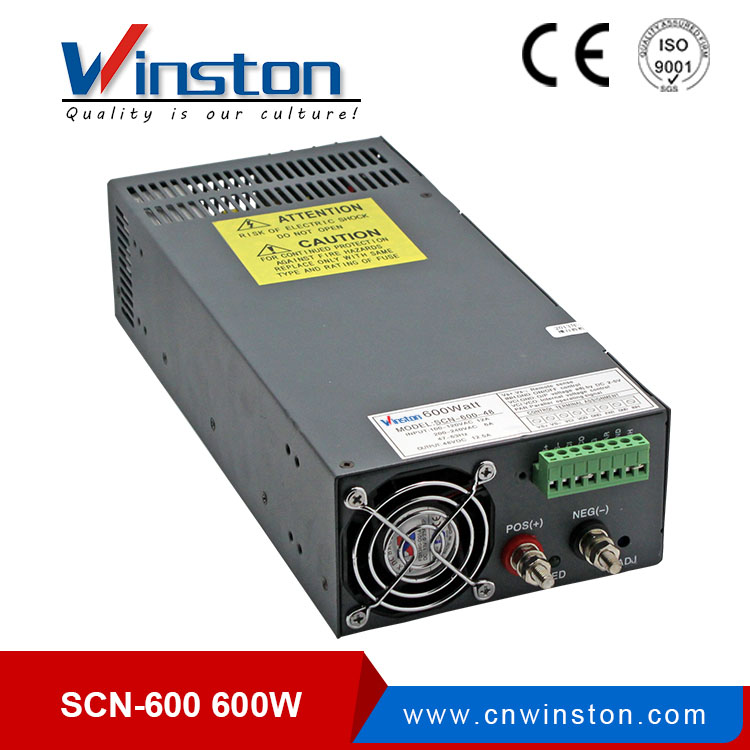

CE SCN-600 Industrial In Parallel 600W 12V 24V 36V 48V Power Supply
Other products
 | S Series |
DR Series | |
| MDR Series 10W 40W 60W 100W | |
| LPV Series 15W 20W 30W 50W 60W 100W 150W 200W 250W | |
| NES Series 15W 25W 35W 50W 75W 100W 150W 200W 350W | |
| LRS Series 35W 50W 75W 100W 150W 200W 350W | |
| PFC Function Series SP-75W SP-100W SP-150W SP-200W SP-320W SP-500W | |
| MS Series 15W 25W 35W 50W 60W 75W 100W 120W 150W | |
| More |
Application
Technical data
| Model | SCN-600-12 | SCN-600-24 | SCN-600-36 | SCN-600-48 |
| Specification | ||||
| DC output voltage | 12V | 24V | 36V | 48V |
| DC output current | 0-50A | 0-25A | 0-16.7A | 0-12.5A |
| Wave and noise | 150mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 85% | 86% | 87% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||
| AC Impact current | Cold-start current 45A/230VAC | |||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||
| Over-voltage protection | 115%-140% shut down O/P voltage, re-power on to recover | |||
| Setup rise hold up time | 2000ms, 50ms, 20ms/230VAC at full load | |||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||
| Overall dimension | 291*132*68mm | |||
| Weight | 2.5Kgs | |||
