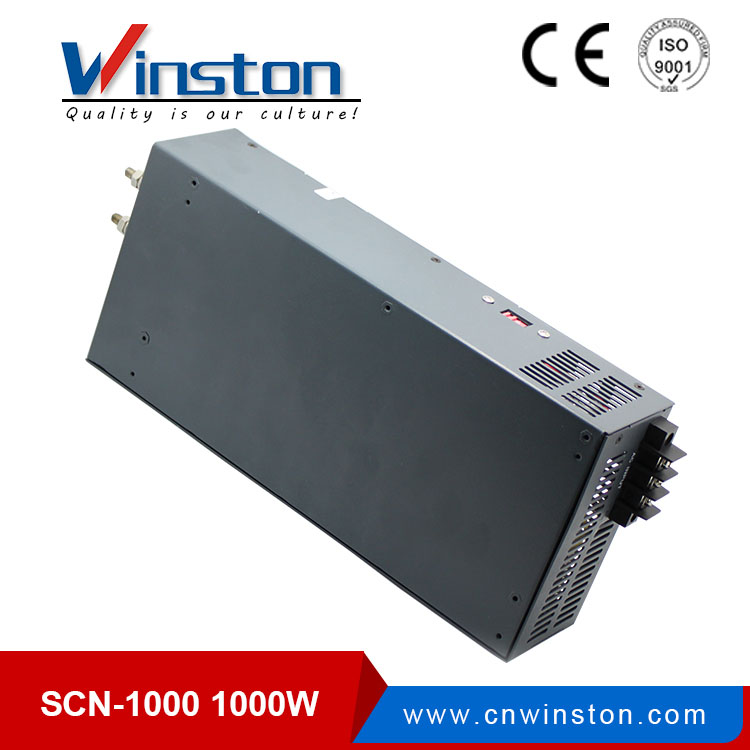

SCN-1000 In Parallel 12V 24V 36V 48V 1000W High Power Power Supply
Application
Technical data
| Model | SCN-1000-12 | SCN-1000-24 | SCN-1000-36 | SCN-1000-48 |
| Specification | ||||
| DC output voltage | 12V | 24V | 36V | 48V |
| DC output current | 0-125A | 0-62.5A | 0-41A | 0-32A |
| Wave and noise | 120mVp-p | 200mVp-p | 200mVp-p | 240mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Load stablity | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
| Efficiency | 80% | 85% | 86% | 87% |
| Adjustable range for DC voltage | ±10% | ±10% | ±10% | ±10% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz | |||
| AC Impact current | Cold-start current 45A/230VAC | |||
| Overload proctection | 105%-135% cut off the output, automatic recovery | |||
| Over-voltage protection | 115%-140% shut down O/P voltage, re-power on to recover | |||
| Setup rise hold up time | 2000ms, 50ms, 20ms/230VAC at full load | |||
| Withstand voltage | Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Working temperature and humidity | -10°C~+50°C(Refer to output derating curve),20%~90%RH | |||
| Overall dimension | 291*132*136mm | |||
| Weight | 5.3Kgs | |||
Product Description
