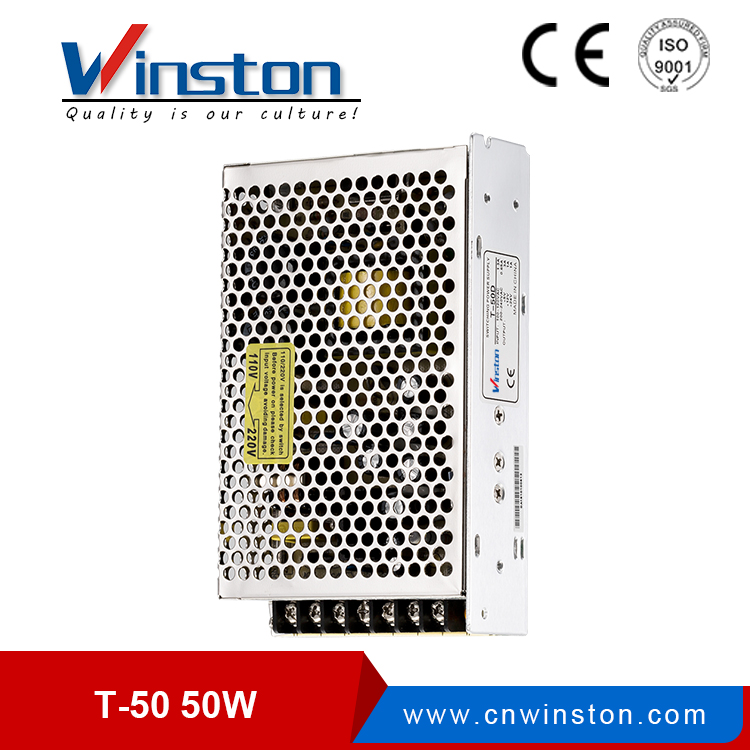

Factory T- 50W Triple 15V 12V 24V 5V AC DC Variable Power Supply
Other products
 | S Series |
DR Series | |
| MDR Series 10W 40W 60W 100W | |
| LPV Series 15W 20W 30W 50W 60W 100W 150W 200W 250W | |
| NES Series 15W 25W 35W 50W 75W 100W 150W 200W 350W | |
| LRS Series 35W 50W 75W 100W 150W 200W 350W | |
| PFC Function Series SP-75W SP-100W SP-150W SP-200W SP-320W SP-500W | |
| MS Series 15W 25W 35W 50W 60W 75W 100W 120W 150W | |
| More |
Application
Technical data
| Model | T-50A | T-50B | T-50C | T-50D | ||||||||
| Specification | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC output voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V |
| Output current rage | 0-7A | 0-1A | 0-1A | 0-5A | 0-1A | 0-1A | 0-4A | 0-1A | 0-1A | 0-3A | 0-1A | 0-1A |
| Wave and noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | 50mVp-p | 120mVp-p | 120mVp-p |
| Inlet stability | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±1% | ±1% |
| Load stablity | ±0.5% | ±4% | ±4% | ±1% | ±4% | ±4% | ±1% | ±4% | ±4% | ±1% | ±4% | ±4% |
| Efficiency | 66% | 69% | 71% | 72% | ||||||||
| Adjustable range for DC voltage | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% | ±10% | ±5% | ±5% |
| AC input voltage range | 90-132VAC/180-264VAC by switch 254-370VDC 47-63Hz | |||||||||||
| Input current | 18A/115V 0.45A/230A | |||||||||||
| AC INnrush current | Cold-start current36A | |||||||||||
| Leakage current | <0.5mA/240VAC | |||||||||||
| Overload proctection | 105%-150%Type,Foldback:current limiting reset,auto recovery | |||||||||||
| Over-voltage protection | CH1: 115~135% shut down O/P voltage, re-power on to recover | |||||||||||
| High-temperature protection | ………… | |||||||||||
| Temperature coefficient | ±0.03%/°C(0-50°C) | |||||||||||
| Setup rise hold up time | 200ms,100ms,30ms | |||||||||||
| Vibration | 10-500Hz,2G 10min,/1cycle,Period for60min,Each axes | |||||||||||
| Withstand voltage | Input and output internal,1.5KVAC,Input and enclosure,1.5KVAC,Output and enclosure,0.5KVAC | |||||||||||
| Isolation resistance | Input and output internal,Input and enclosure,Output and enclosure,500VDC/100MΩ | |||||||||||
| Working temperature and humidity | -10°C~+60°C(Refer to output derating curve),20%~90%RH | |||||||||||
| Store temperature and humidity | -20°C~+85°C.10%~95%RH | |||||||||||
| Overall dimension | 159×98×38mm | |||||||||||
| Weight | 0.55Kgs | |||||||||||
