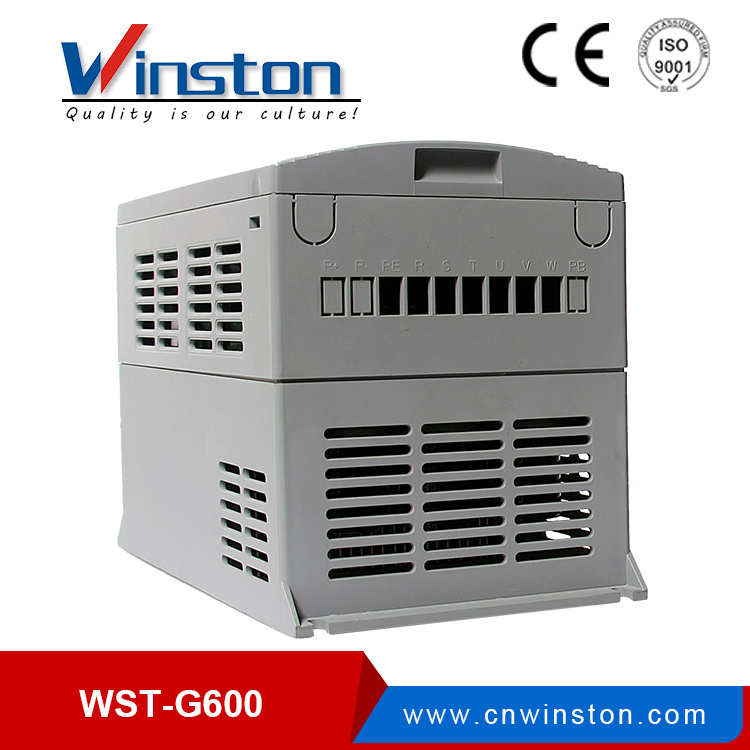

CE WSTG600-4T4.0GB 3phase High Efficiency 4kw AC Motor Frequency inverter
Other products
 | *Support Synchronous and Asynchronous motor
*Speed-sensor control and speed-sensoeless control programmable
*Position control,speed control and torque control programmable |
Technical data
| (Three-phase power supply)380V 50/60Hz | |||||
| Model | Power Capacity (KVA) | Input current | Output current | Adapation motor | |
| KW | HP | ||||
| WSTG600-4T0.7GB | 1.5 | 3.4 | 2.1 | 0.8 | 1 |
| WSTG600-4T1.5GB | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| WSTG600-4T2.2GB | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| WSTG600-4T4.0GB | 5.9 | 10.5 | 9.0 | 4.0 | 5 |
| WSTG600-4T5.5GB/ WSTG600-4T5.5P-B | 8.9 | 14.6 | 13.0 | 5.5 | 7.5 |
| WSTG600-4T7.5GB/ WSTG600-4T7.5P-B | 11.0 | 20.5 | 17.0 | 7.5 | 10 |
Dimension
| Three-phase power 380V | ||||||||
| Model | Mounting holes (mm) | External dimensions (mm) | Diameter (mm) | Weight (kg) | ||||
| A | B | H | H1 | W | D | |||
| WSTG600-4T0.7GB | 70 | 180 | 189 | / | 93 | 154 | ∅5 | 1.1 |
WSTG600-4T1.5GB | ||||||||
| WSTG600-4T2.2GB | ||||||||
| WSTG600-4T4.0GB | 80 | 233 | 245 | / | 120 | 173 | ∅5 | 2.5 |
| WSTG600-4T5.5PB | ||||||||
