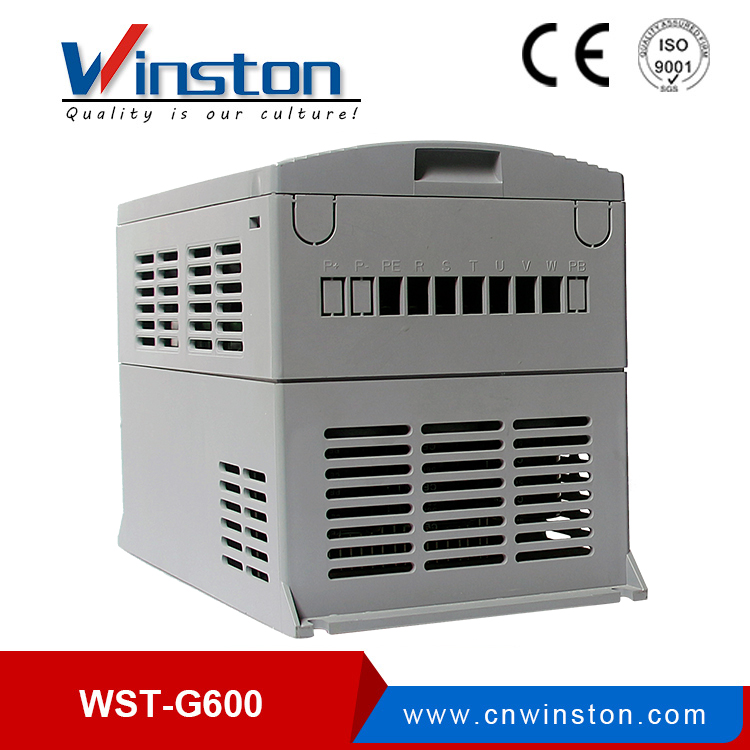

WSTG600-4T22GB Motor 50hz to 60hz 22kw Electric Frequency Inverter
Other products
 | *Support Synchronous and Asynchronous motor
*Speed-sensor control and speed-sensoeless control programmable
*Position control,speed control and torque control programmable |
Technical data
| Three-phase power supply)380V 50/60Hz | |||||
| Model | Power Capacity (KVA) | Input current | Output current | Adapation motor | |
| KW | HP | ||||
| WSTG600-4T0.7GB | 1.5 | 3.4 | 2.1 | 0.8 | 1 |
| WSTG600-4T1.5GB | 3.0 | 5.0 | 3.8 | 1.5 | 2 |
| WSTG600-4T2.2GB | 4.0 | 5.8 | 5.1 | 2.2 | 3 |
| WSTG600-4T4.0GB | 5.9 | 10.5 | 9.0 | 4.0 | 5 |
| WSTG600-4T5.5GB/ WSTG600-4T5.5P-B | 8.9 | 14.6 | 13.0 | 5.5 | 7.5 |
| WSTG600-4T7.5GB/ WSTG600-4T7.5P-B | 11.0 | 20.5 | 17.0 | 7.5 | 10 |
| WSTG600-4T11GB/ WSTG600-4T11P-B | 17.0 | 26.0 | 25.0 | 11.0 | 15 |
| WSTG600-4T15GB/ WSTG600-4T15P-B | 21.0 | 35.0 | 32.0 | 15.0 | 20 |
| WSTG600-4T18.5GB/ WSTG600-4T18.5P-B | 24.0 | 38.5 | 37.0 | 18.5 | 25 |
| WSTG600-4T22G/ WSTG600-4T22P | 30.3 | 46.5 | 45.0 | 22 | 30 |
| WSTG600-4T30G/ WSTG600-4T30P | 40.3 | 62.0 | 60.0 | 30 | 40 |
| WSTG600-4T37G/ WSTG600-4T37P | 57.0 | 76.0 | 75.0 | 37 | 50 |
| WSTG600-4T45G/ WSTG600-4T45P | 69.0 | 92.0 | 91.0 | 45 | 60 |
| WSTG600-4T55G/ WSTG600-4T55P | 85.0 | 113.0 | 112.1 | 55 | 70 |
| WSTG600-4T75G/ WSTG600-4T75P | 114.0 | 157.0 | 150.0 | 75 | 100 |
| WSTG600-4T90G/ WSTG600-4T90P | 134.0 | 180.0 | 176.0 | 90 | 125 |
| WSTG600-4T110G/ WSTG600-4T110P | 160.0 | 214.0 | 210.0 | 110 | 150 |
| WSTG600-4T132G/ WSTG600-4T132P | 192.0 | 256.0 | 253.0 | 132 | 175 |
| WSTG600-4T160G/ WSTG600-4T160P | 231.0 | 307.0 | 304.0 | 160 | 210 |
| WSTG600-4T185G/ WSTG600-4T185P | 234.0 | 326.0 | 350.0 | 185 | 250 |
| WSTG600-4T200G/ WSTG600-4T200P | 250.0 | 385.0 | 377.0 | 200 | 260 |
| WSTG600-4T220G/ WSTG600-4T220P | 280.0 | 430.0 | 426.0 | 220 | 300 |
| WSTG600-4T250G/ WSTG600-4T250P | 355.0 | 468.0 | 465.0 | 250 | 350 |
| WSTG600-4T280G/ WSTG600-4T280P | 396.0 | 525.0 | 520.0 | 280 | 370 |
| WSTG600-4T315G/ WSTG600-4T315P | 445.0 | 590.0 | 585.0 | 315 | 500 |
| WSTG600-4T355G/ WSTG600-4T355P | 500.0 | 665.0 | 650.0 | 355 | 420 |
| WSTG600-4T400G/ WSTG600-4T400P | 565.0 | 785.0 | 725.0 | 400 | 530 |
| WSTG600-4T450P | 630.0 | 883.0 | 820.0 | 450 | 600 |
Dimension
| Three-phase power 380V | ||||||||
| Model | Mounting holes (mm) | External dimensions (mm) | Diameter (mm) | Weight (kg) | ||||
| A | B | H | H1 | W | D | |||
| WSTG600-4T0.7GB | 70 | 180 | 189 | / | 93 | 154 | ∅5 | 1.1 |
WSTG600-4T1.5GB | ||||||||
| WSTG600-4T2.2GB | ||||||||
| WSTG600-4T4.0GB | 80 | 233 | 245 | / | 120 | 173 | ∅5 | 2.5 |
| WSTG600-4T5.5PB | ||||||||
| WSTG600-4T5.5GB | 125 | 268 | 281 | / | 145 | 185 | ∅6 | 3.75 |
| WSTG600-4T7.5PB | ||||||||
| WSTG600-4T7.5GB | ||||||||
| WSTG600-4T11PB | ||||||||
| WSTG600-4T11GB | 150 | 325 | 340 | / | 204 | 214 | ∅6 | 6.5 |
| WSTG600-4T15PB | ||||||||
| WSTG600-4T15GB | ||||||||
| WSTG600-4T18.5GB | 150 | 380 | 400 | 1 | 228 | 217 | ∅6 | 6.5 |
| WSTG600-4T22PB | ||||||||
| WSTG600-4T22GB | 200 | 440 | 460 | / | 262 | 242 | ∅8 | 20 |
| WSTG600-4T30PB | ||||||||
| WSTG600-4T30GB | ||||||||
| WSTG600-4T37PB | ||||||||
| WSTG600-4T37GB | 235 | 528 | 550 | / | 320 | 253 | ∅10 | 32 |
| WSTG600-4T45PB | ||||||||
| WSTG600-4T45GB | ||||||||
| WSTG600-4T55PB |
