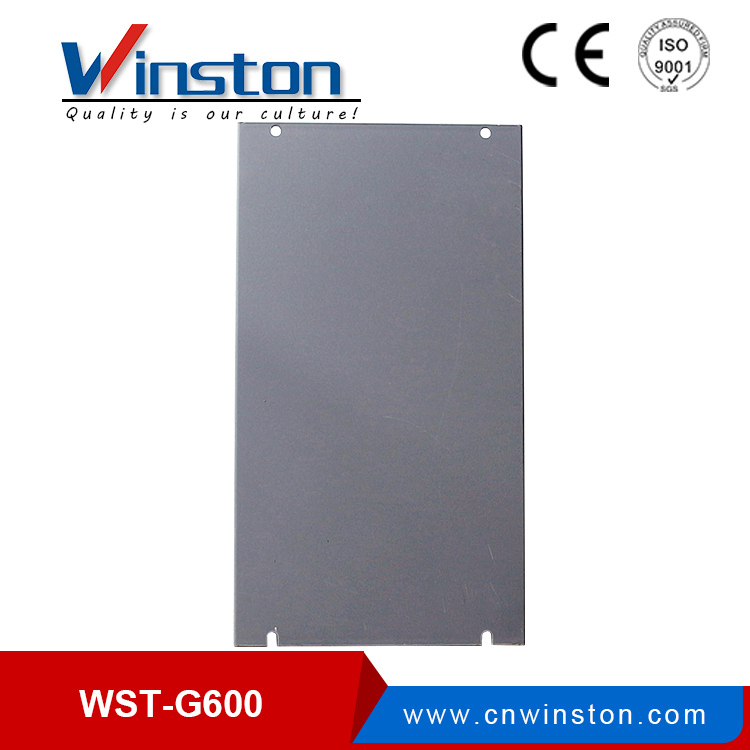

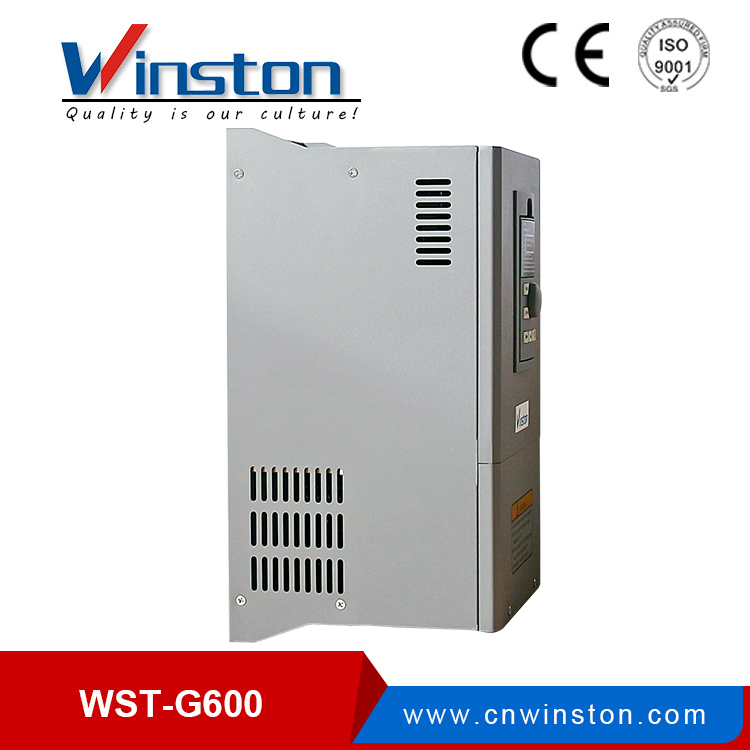

WSTG600-4T250G Synchronous and Asynchronous Motor AC Frequency Inverter 250KW

Click on the image to view the original image

Product：	views：1WSTG600-4T250G Synchronous and Asynchronous Motor AC Frequency Inverter 250KW
Branch：	Winston
Type：	DC/AC Inverters
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:18

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Winston

Model Number:: WSTG600-4T250G

Output Power:: 250kw

Output Type:: Triple

Size:: 1600*500*420mm

Weight:: 130kg

Input Voltage:: 380V

Output Voltage:: 380V

Type:: DC/AC Inverters

Output Frequency:: 50Hz/60Hz

Output Current:: 465a

Product name:: Frequency Inverter 250KW

Application:: Water pump

Certificate:: CE

Protection:: Overload

Warranty:: 24 Months

Color:: Grey

Display:: LED

Name:: Motor AC

Installation:: Wall mount type

Protection grade:: IP20

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: inner box and out box

Port: ningbo

Other products

Single phase	0.4KW 0.75KW 1.5KW 2.2KW 4KW
Three phase	0.75KW 1.5KW 2.2KW 4.0KW 5.5KW 7.5KW 11.0KW 15.0KW 18.5KW 22KW 30KW 37KW 45KW 55KW 75KW 90KW 110KW 132KW 160KW 185KW 200KW 220KW 250KW 280KW 315KW 355KW 400KW

*Support Synchronous and Asynchronous motor

*Speed-sensor control and speed-sensoeless control programmable

*Position control,speed control and torque control programmable

Technical data

Three-phase power supply)380V 50/60Hz
Model	Power Capacity (KVA)	Input current	Output current	Adapation motor
Model	Power Capacity (KVA)	Input current	Output current	KW	HP
WSTG600-4T0.7GB	1.5	3.4	2.1	0.8	1
WSTG600-4T1.5GB	3.0	5.0	3.8	1.5	2
WSTG600-4T2.2GB	4.0	5.8	5.1	2.2	3
WSTG600-4T4.0GB	5.9	10.5	9.0	4.0	5
WSTG600-4T5.5GB/ WSTG600-4T5.5P-B	8.9	14.6	13.0	5.5	7.5
WSTG600-4T7.5GB/ WSTG600-4T7.5P-B	11.0	20.5	17.0	7.5	10
WSTG600-4T11GB/ WSTG600-4T11P-B	17.0	26.0	25.0	11.0	15
WSTG600-4T15GB/ WSTG600-4T15P-B	21.0	35.0	32.0	15.0	20
WSTG600-4T18.5GB/ WSTG600-4T18.5P-B	24.0	38.5	37.0	18.5	25
WSTG600-4T22G/ WSTG600-4T22P	30.3	46.5	45.0	22	30
WSTG600-4T30G/ WSTG600-4T30P	40.3	62.0	60.0	30	40
WSTG600-4T37G/ WSTG600-4T37P	57.0	76.0	75.0	37	50
WSTG600-4T45G/ WSTG600-4T45P	69.0	92.0	91.0	45	60
WSTG600-4T55G/ WSTG600-4T55P	85.0	113.0	112.1	55	70
WSTG600-4T75G/ WSTG600-4T75P	114.0	157.0	150.0	75	100
WSTG600-4T90G/ WSTG600-4T90P	134.0	180.0	176.0	90	125
WSTG600-4T110G/ WSTG600-4T110P	160.0	214.0	210.0	110	150
WSTG600-4T132G/ WSTG600-4T132P	192.0	256.0	253.0	132	175
WSTG600-4T160G/ WSTG600-4T160P	231.0	307.0	304.0	160	210
WSTG600-4T185G/ WSTG600-4T185P	234.0	326.0	350.0	185	250
WSTG600-4T200G/ WSTG600-4T200P	250.0	385.0	377.0	200	260
WSTG600-4T220G/ WSTG600-4T220P	280.0	430.0	426.0	220	300
WSTG600-4T250G/ WSTG600-4T250P	355.0	468.0	465.0	250	350
WSTG600-4T280G/ WSTG600-4T280P	396.0	525.0	520.0	280	370
WSTG600-4T315G/ WSTG600-4T315P	445.0	590.0	585.0	315	500
WSTG600-4T355G/ WSTG600-4T355P	500.0	665.0	650.0	355	420
WSTG600-4T400G/ WSTG600-4T400P	565.0	785.0	725.0	400	530
WSTG600-4T450P	630.0	883.0	820.0	450	600

Dimension

Product Description

Packaging & Shipping
