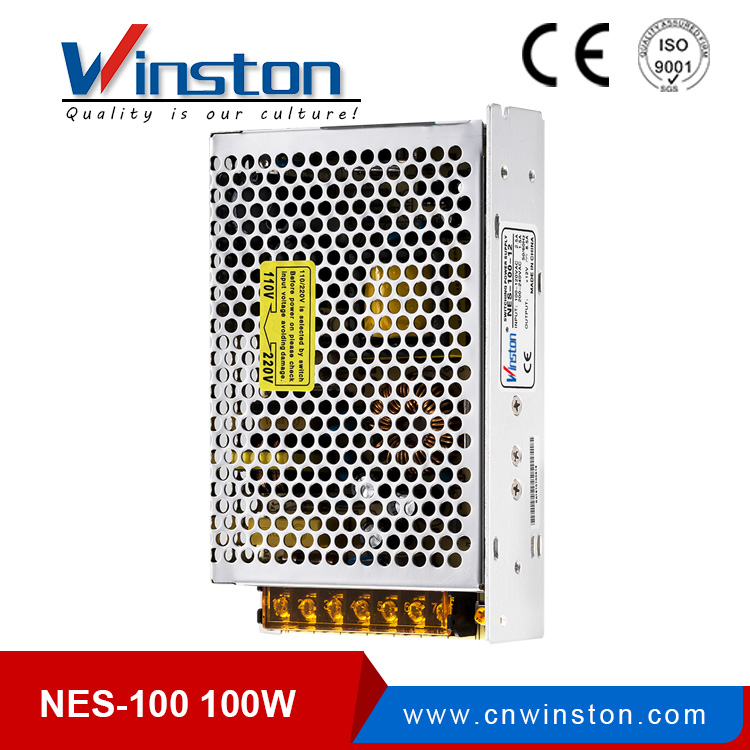

CE NES-100 Single LED 12V 15V 24V 48V 100W Variable Power Supply

Click on the image to view the original image

Product：	views：1CE NES-100 Single LED 12V 15V 24V 48V 100W Variable Power Supply
Branch：	WINSTON
Type：	Electric
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 19:18

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: WINSTON

Model Number:: NES-100

Output Power:: 51 - 100W

Output Type:: Single

Input Voltage:: 85 ~ 264VAC 120 ~ 373VDC

Output Frequency:: 50/60Hz

Output Current:: 0~20A

Application:: Industrial Automation

Certification:: CE

Warranty:: 2 years

Product Name:: Variable Power Supply

Type:: Electric

Protections:: Short Circuit Overload Overvolt

Efficiency:: 86%

Protection:: Over-voltage

Name:: 100W power supply

Working temperature:: -10 ~ +50 C

Output Voltage:: 5V 12V 15V 24V 48V

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: Winston Brand,Export standard carton box 30PCS/CTN G.W.:21KG/CTN CTN Size:43*32.5*24 cm

Port: ningbo

WINSTON NES-15 5V 12V 15V 24V 48V 15W Single Output Power Supply

Other products

	S Series 15W 25W 35W 50W 60W 75W 100W 120W 145W 150W 200W 201W 250W 350W 400W 500W 600W SCN-600 SCN-800 SCN-1500
	DR Series 30W 45W 60W 75W 120W 240W
	MDR Series 10W 40W 60W 100W
	LPV Series 15W 20W 30W 50W 60W 100W 150W 200W 250W
	NES Series 15W 25W 35W 50W 75W 100W 150W 200W 350W
	LRS Series 35W 50W 75W 100W 150W 200W 350W
	PFC Function Series SP-75W SP-100W SP-150W SP-200W SP-320W SP-500W
	MS Series 15W 25W 35W 50W 60W 75W 100W 120W 150W
	More

Application

Technical data

Model	NES-100-5	NES-100-12	NES-100-15	NES-100-24	NES-100-48
Specification	NES-100-5	NES-100-12	NES-100-15	NES-100-24	NES-100-48
DC output voltage	5V	12V	15V	24V	48V
DC output current	0-20A	0-8.5A	0-7A	0-4.5A	0-2.3A
Wave and noise	80mVp-p	120mVp-p	120mVp-p	120mVp-p	150mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Load stablity	±1%	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	80%	83%	84%	86%	86%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%	±10%
AC input voltage range	90-132VAC/180-264VAC by switch 254-370VDC 47~63Hz
AC Impact current	Cold-start current 45A/230V
Overload proctection	105%-160% cut off the output, automatic recovery
Over-voltage protection	115%~135% shut down O/P voltage, re-power on to recover
Setup rise hold up time	800ms, 60ms, 50ms/230VAC at full load
Withstand voltage	Input and output internal:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance	Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°C~+50°C(Refer to output derating curve),20%~90%RH
Overall dimension	1599838mm
Weight	0.55Kgs
Note:
1.The testing condition for the paramenter above is :230VAC input,rated load,25°C70% RH.Humidity.
2.Error.include the setting error,line stability and load stability.(Note:5).
3.Wave test:adopting "A12"double wire for 20MHz,and 0.1UF&47UF capacitor short-circuit for interrupting.
4.Inlet voltage stability test:when is over load,the lowest voltage of inlet is up to the highest voltage.
5.Load stability test:the load is from 0% to 100%.
6.C2,3,6must be knocked down.
