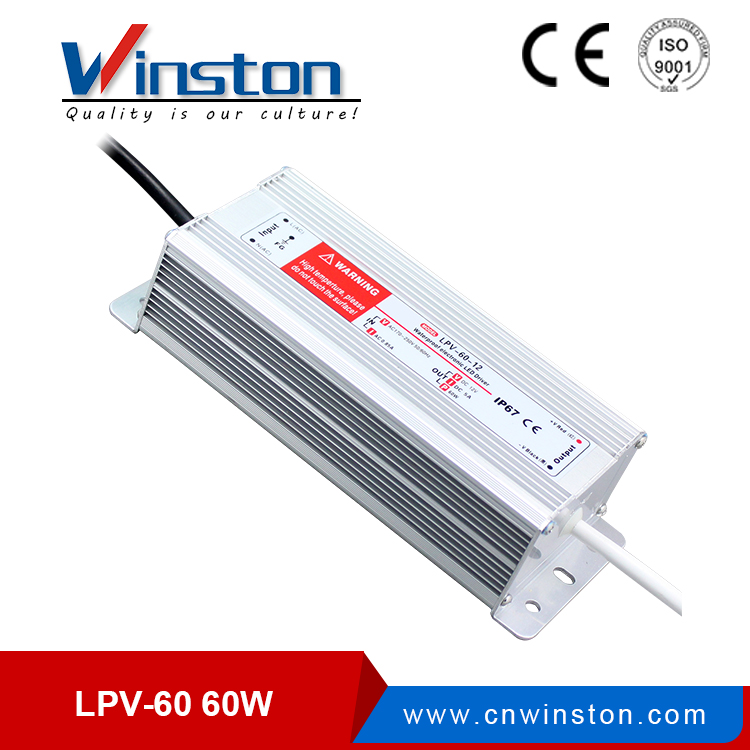

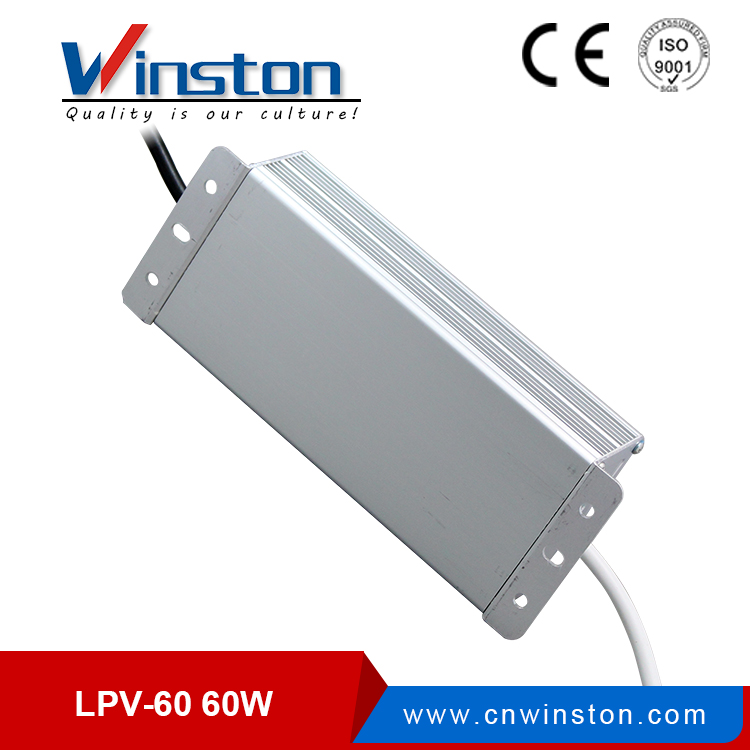

LPV-60 IP67 Waterproof LED 5A 12V 24V 60W Single Output Power Supply Switching
Other products
 | S Series |
DR Series | |
| MDR Series 10W 40W 60W 100W | |
| LPV Series 15W 20W 30W 50W 60W 100W 150W 200W 250W | |
| NES Series 15W 25W 35W 50W 75W 100W 150W 200W 350W | |
| LRS Series 35W 50W 75W 100W 150W 200W 350W | |
| PFC Function Series SP-75W SP-100W SP-150W SP-200W SP-320W SP-500W | |
| MS Series 15W 25W 35W 50W 60W 75W 100W 120W 150W | |
| More |
Application
Technical data
| Model | LPV-60-12 | LPV-60-24 | |
| DC voltage | 12V | 24V | |
| output | Current range | 0~5A | 0~2.5A |
| Ripple&noise | 100mvp-p | 150mvp-p | |
| Voltage range | 180-264VAC 264-370VDC , 47-63Hz | ||
| Efficiency | 81% | 83% | |
| Inrush current | Cold start current 30A/230VAC | ||
| Over load | 105%~150% cut off the output,automatic recovery | ||
| Over voltage | 121%-142% shut down O/P voltage, re-power on to recover | ||
| environment | Working temperature | -10°C~+50°C | |
| safety | Withstand voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute | |
| Isolated resistance | I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||
| others | Dimension | 183*71*470mm (L*W*H) | |
| Weight/packing | 0.82kg/18pcs/15kg/47*20*18.5cm | ||
| note | 1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. | ||
| 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||
| 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
