Home > Products > WINSTON G18 NPN PNP Proximity Photoelectric Sensor With Reflector

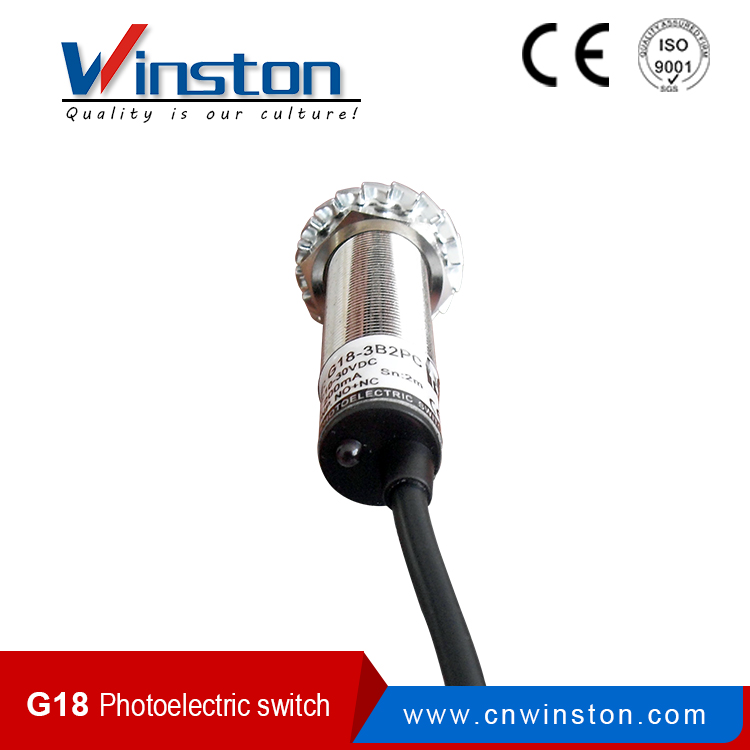

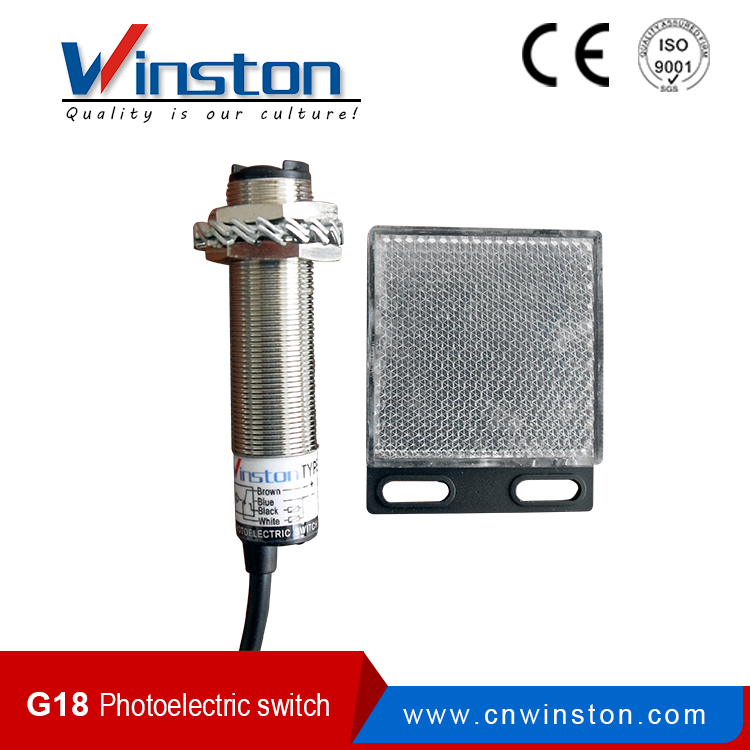

WINSTON G18 NPN PNP Proximity Photoelectric Sensor With Reflector
Click on the image to view the original image
Product： views：2WINSTON G18 NPN PNP Proximity Photoelectric Sensor With Reflector
Branch： WINSTON
Type： Waterproof
Size： 3X8X6 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:18
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
WINSTON
Model Number:
G18
Usage:
Position Sensor
Theory:
Optical Sensor
Output:
Analog Sensor
Application:
Detection
Type:
Waterproof
Product name:
reflector photoelectric sensor
Name:
PNP proximity sensor
Material:
Metal, plastic
Certificate:
CE
Color:
silver , blue
Warranty:
12 Months
Protection grade:
IP54
Detection range:
10-30cm, 2m, 5m

Packaging & Delivery

Selling Units:
Single item
Single package size:
3X8X6 cm
Single gross weight:
0.13 kg
Package Type:
Inner box and outer carton There are 4 in a box, weighing 0.5kg, length, width and height: 11*8*6cm
Lead Time:
Quantity(Piece)1 - 1000>1000
Est. Time(days)15To be negotiated

WINSTON G18 NPN PNP Proximity Photoelectric Sensor With Reflector



Other products
Application

Technical data

Diffuse typeDetection distance10-30cm
 DC6~36VNPNNOG18-3A10NA
NCG18-3A10NB
NO+NCG18-3A10NC
PNPNOG18-3A10PA
NCG18-3A10PB
NO+NCG18-3A10PC
90~250VACSCR Control label siliconNO G18-2A10LA
NC G18-2A10LB
RetroreflictiveDetection distance2m
 DC6~36VNPNNOG18-3B2NA
NCG18-3B2NB
NO+NCG18-3B2NC
PNPNOG18-3B2PA
NCG18-3B2PB
NO+NCG18-3B2PC
90~250VACSCR Control label siliconNO G18-2B2LA
NC G18-2B2LB
Trough beamDetection distance5m
 DC6~36VNPNNOG18-3C5NA
NCG18-3C5NB
NO+NCG18-3C5NC
PNPNOG18-3C5PA
NCG18-3C5PB
NO+NCG18-3C5PC
90~250VACSCR Control label siliconNO G18-2C5LA
NC G18-2C5LB



DC/SCR Control outputDC: 200mA
DC/AC Consumption currentDC<15mA
DC /AC Response timeDC<2ms
Directional angle3°-10°
Detected objecttransparent or opaque body
Working environment temperature-25°C~+55°C
Intensity of illumination of working environmentSunlight under 10000LX, Incandescent lamp under 3000LX
Shell materialPlastic, metal
Protection gradeIP54
Dimension
