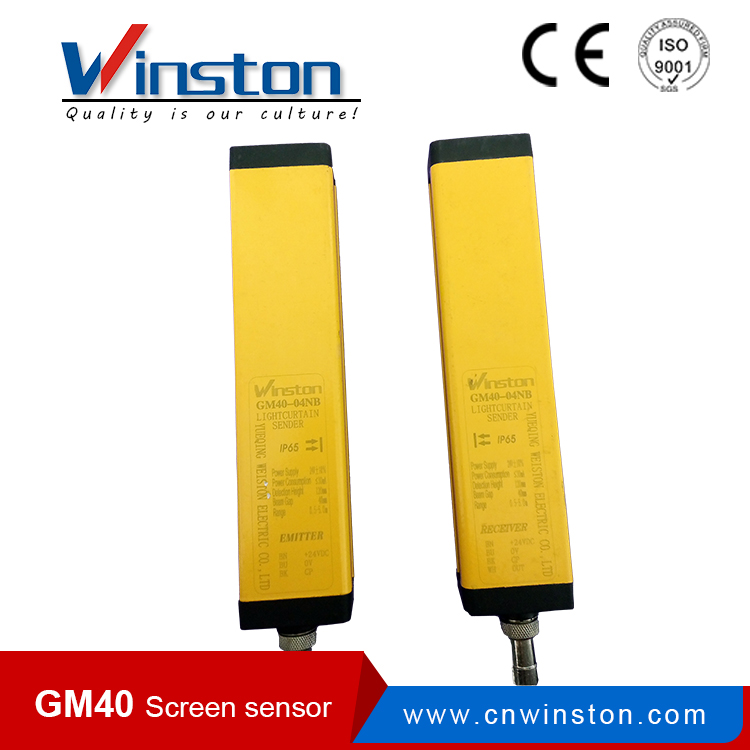

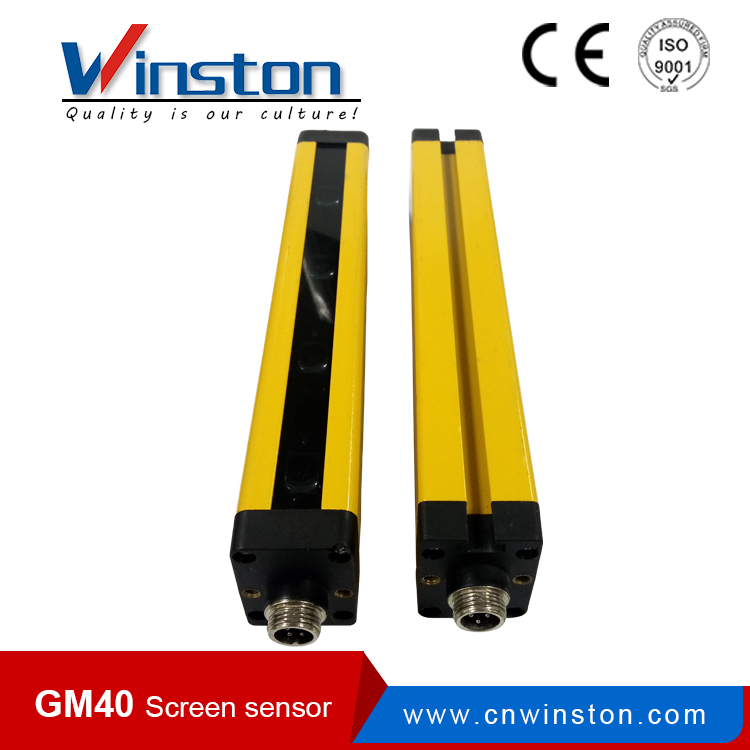

WINSTON GM40 Series 40mm Security Light Curtain Optic Screen Sensor
* Applicable for the safely detection of automatic assemble line. Elevator, danger restricted zone, metal forming machine, punching & shearing machine tool, paper cutter and so on and has protection function.
* Adopting synchronism scanning technology, concentrated beam path, non working blind area, strong anti-interference ability, and convenient installation.
* Resistance to mutual interference function it is possible to closely mount more than 2 sets of devices.
* Fault self-check, function, power failure stop, inner component fault stop, connection fault stop, object invading stop signal output.
* Attached with specific control supplying powerful control function.
Detection way | Model | Detection distance | Optic axis distance | Optic axis number | Detection width | Min detectable object |
Trough-beam | GM40-4 | ≤3m | 40mm | 4 | 120mm | φ50mm |
GM40-6 | 6 | 200mm | ||||
GM40-8 | 8 | 280mm | ||||
GM40-10 | 10 | 360mm | ||||
GM40-12 | 12 | 440mm | ||||
GM40-16 | 16 | 600mm | ||||
GM40-20 | 20 | 760mm | ||||
GM40-24 | 24 | 920mm | ||||
GM40-32 | 32 | 1240mm | ||||
GM40-40 | 40 | 1560mm | ||||
GM40-56 | 56 | 2220mm | ||||
GM40-64 | 64 | 2520mm |
| Mains input voltage | 200-220VAC, 50/60Hz,3.5VA |
| Mains output voltage | N:12-24VDC J:10-48VDC/VAC |
| Consumption current | Under 100mA |
| Response time | Under 20mS |
| Output form | 1.6v collector open circuit NPN type: current 100mA,residual voltage 1.6v |
| Output state | On when all the optic axis is photic |
| Optic source | Infrared LED |
| Shell material | PMMA Shell: Alalloy, color filter cover :PMMA |
| Environment-resisting light | Incandescent lamp:intensity of illumination of photic surface3000Lx, sunlight: intensity of illumination of photic surface 1000Lx |
| Ambient Temperature | -10ºC--+50ºC |
| Environment Humidity | 35-85RH |
| | |
| | |
