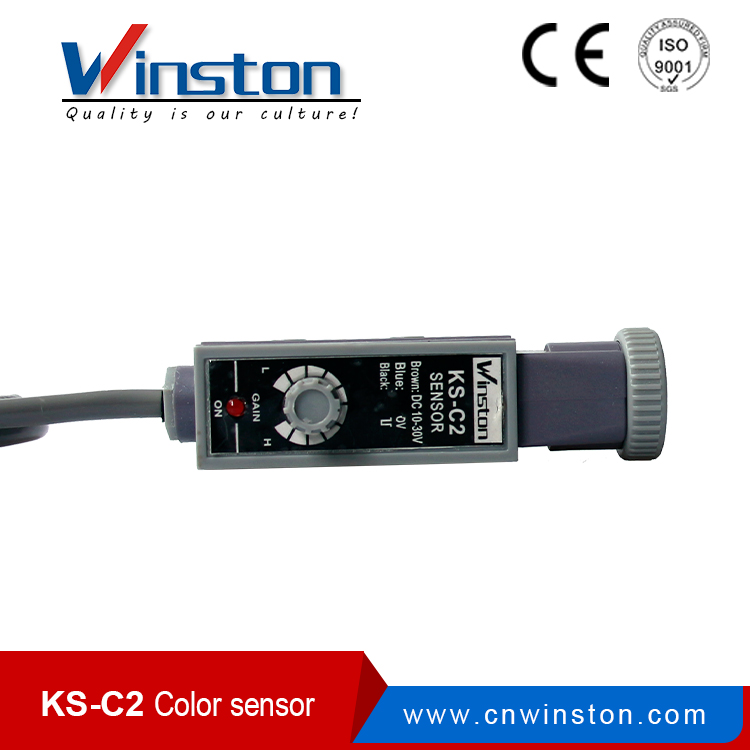

WINSTON KS-C2 Analog Sensor , Print Color Mark Sensor
 | | |
| | |
* KS series color mark sensor will emit light rays to scan the detected surface, and can identify the different color marks through receiving different intensity of light reflected back from different colors on the surface.
* Coaxial optical design, more adaptable to surfaces of high-reflectance (such as aluminum foil).
* With light sources of blue, green, red and various other colors for selecction, more accurately to identify various colors .
* Small light spot, excellent resolution.
* Short response time of 0.1-1ms, can adapt to control demand of various packaging machines, bagging machines and printing machines.
* Outstanding internal circuit design that can resist various electromagnetic and optical interference , has stability and no error action.
* With sensitivity adjustment knob, need no tool to adjust.
| KS-C2W | KS-C2G | KS-C2R | KS-C2R/G | KS-C2W/G | |
Light source | White | Green | Red | Red/green | |
Detection | coaxial reflective type | ||||
Detection distance | 10mm±2mm | ||||
Cast bare point | 1.0mm | ||||
Supply voltage | DC10-30V | ||||
Power consumption | 45mA or less | ||||
Response time | Less 1mS | ||||
Output form | NPN type lights moving / dark dynamic dual output | ||||
Protection function | Supply voltage reverse polarity protection, short-circuit protection | ||||
Operation instruction | red LED, bright Activity directions | ||||
Operating ambient | temperature: -15 ° C -50 ° C sunshine | ||||
Lead | four-core cable (brown, yellow, white, blue) standard length 2m | ||||
