Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Winston
- Model Number:
- MS-290
- Color:
- Red
- Product name:
- alarm siren
- Function:
- Alram
- Type:
- Motor alarm series
- Certificate:
- CE
- Name:
- motor siren ms-290
- Material:
- steel&ABS
- Application:
- Safety, transportation, medical aid, emergency response
- Warranty:
- 1 Year
- Size:
- 128*160*135 mm
Supply Ability
- Supply Ability:
- 5000 Piece/Pieces per Month
Packaging & Delivery
- Packaging Details
- Export standard carton box or OEM
- Port
- ningbo
- Picture Example:
![package-img]()

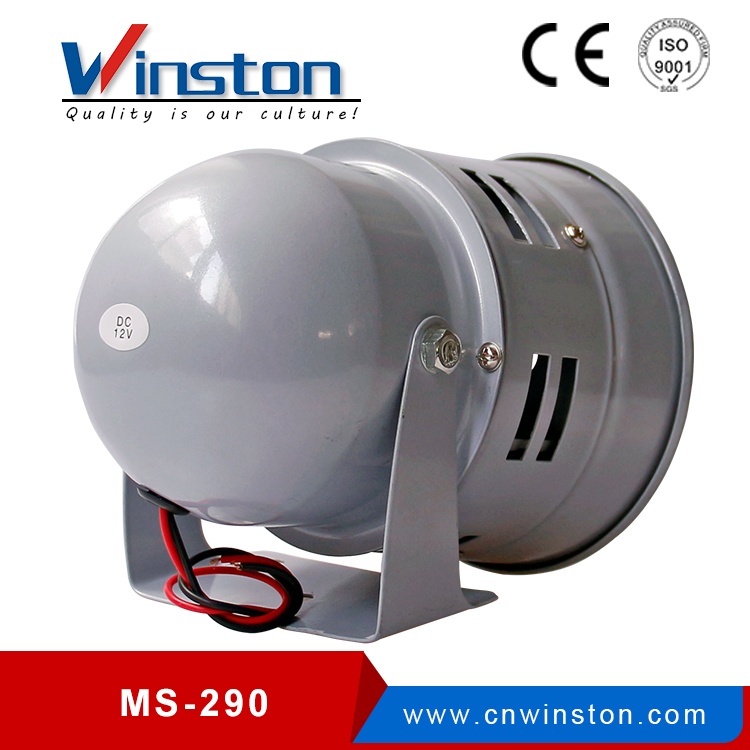

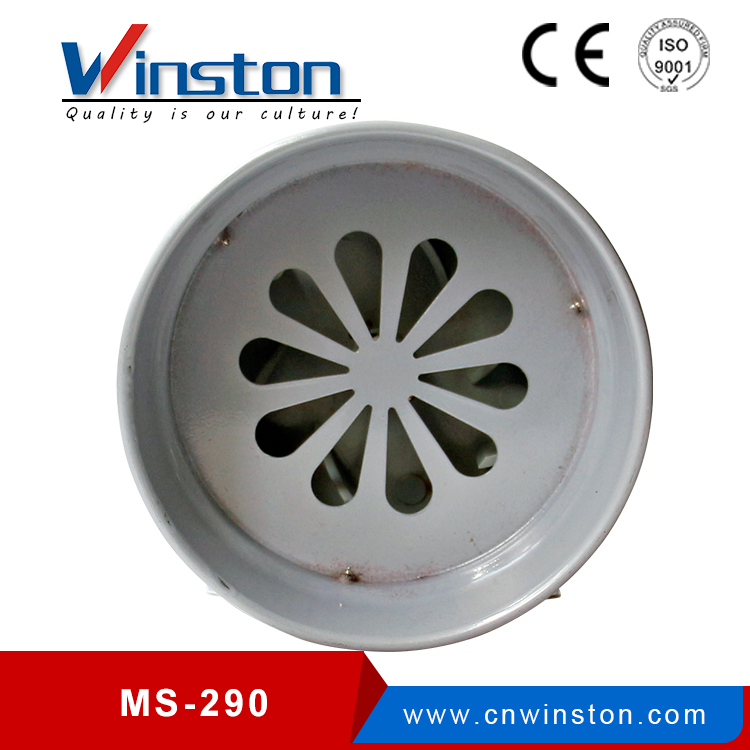

Manufacturer MS-290 Motor DC24V AC110V AC 220V 110db Alarm Siren 12V
Features
Electric Moter Alarm Siren with the external diameter of 80/100mm which makes the output of 40W sound volume.
Suitable for warning information of small hoist, light transfer cars and the inside of small vessel.
Body standard color : RED
Material : STEEL & ABS
Insulation resistance : 100MΩ(at 500 VDC)
Dielectric strength : 500VAC, 50/60Hz in 1 minute
Protection class : IP44
Technical data
| Model | Voltage | Current(A) | Frequency(Hz) | decibel | Packing Size | QTY | Weight |
| MS-290 | DC12V | 6.00 | 50/60 | 116dB | 57.5*36.5*18.5 cm | 40pcs | 18KGS |
| DC24V | 2.50 | 50/60 | 116dB | 18KGS | |||
| AC110V | 0.9 | 50/60 | 116dB | 20.50KGS | |||
| AC220V | 0.43 | 50/60 | 116dB | 20.50KGS |
