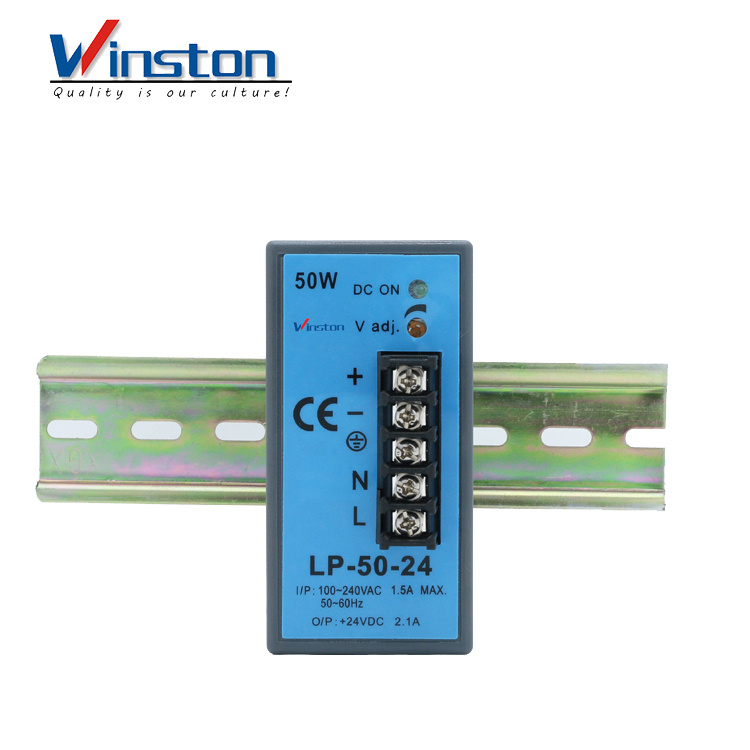

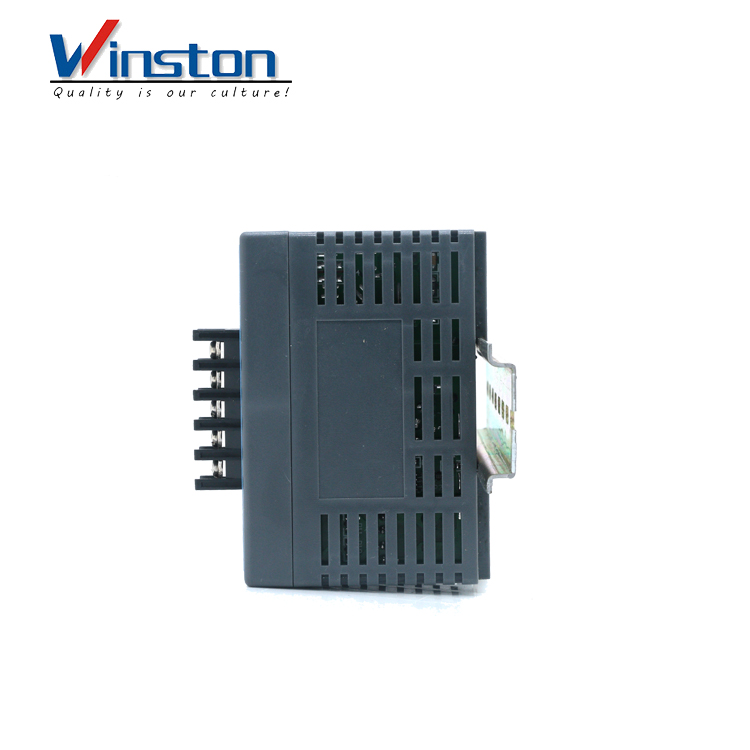

LP50-24 Single output Dc 2.1A 24V 50W LED display Din-Rail Switching Power Supply
Features:
Protection characteristic : short circuit/overload/overvoltage
High efficiency, high reliability and long service life.
Natural air cooling
100% full load burning test
LED power indication
LP 50-24 Specification:
| Model/Specification | LP-50-5 | LP-50-12 | LP-50-24 | |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage tolerance | ± 2% | ± 1% | ± 1% | |
| Rated Output Current | 8A | 4.2A | 2.1A | |
| Output Current Range | 0-8A | 0-4.2A | 0-2.1A | |
| DC Output Power | 40W | 50.4W | 50.4W | |
| Tripple and Noise | 80mVp-p | 120mVp-p | 240mVp-p | |
| Adjustable Range | 4.75-5.5V | 11.4-13.2V | 20.5-26.5V | |
| For DC Voltage | ||||
| Input | AC Input Voltage Range | 90-264VAC or 100-360VDC 47~63Hz; | ||
| AC input current | 0.9A/115VAC ,0.45A/230VAC | |||
| Efficiency | 78% | 83% | 85% | |
| AC Inrush Current | Cold-Start Current: 18A/115V, 36A/230V | |||
| Leakage Current | <2mA/240VAC | |||
| Protection Charateritic | Overload Protection | 110%-150% | ||
| Protection mode: cut off output and restart | ||||
| Over Voltage Protection | 5.75-6.75V | 13.8-16.2V | 27-30V | |
| Protection mode: cut off output and reset automatically | ||||
| Environment | Work Temperature | 10℃~+50℃ , 20%~90%RH | ||
| Humidity | ||||
| Storage Temperature | -20℃~+85℃,10%~95%RH | |||
| Humidity | ||||
| Shock resistance | 10~500Hz, 2G 10min,/1cycle,duration:60min each shaft | |||
| Safety | Voltage withstand capacity | I/P-O/P:2KVAC, I/P-FG:1.5KVAC,O/P-FG:0.5KVAC | ||
| Insulation resistance | I/P-0/P,I/P-FG ,O/P-FG:100M Ohms/500VDC | |||
| Executive | Safety Standards | CE | ||
| Stantand | EMC Standards | Design refer to FCC part 15J Conduction Class B | ||
| Others | Weight | 0.22KGS | ||
| Package | 60pcs/ctn 38.5*32*28 | |||
| size | 75.5*45*102(L*W*H) | |||
| Notes | 1. All parameters except special situtation, are meaured under 230VAC voltage input and rated load at 25℃. 2. The ripple and noise voltage are measured in condition capacitance of 0.1μ and 47μ are applied to ends of 12inch twisted-pair of 20MHZ bandwidth oscilloscope. 3.The tolerance is the sum of setting voltage error , voltage and current regulation factor. | |||
