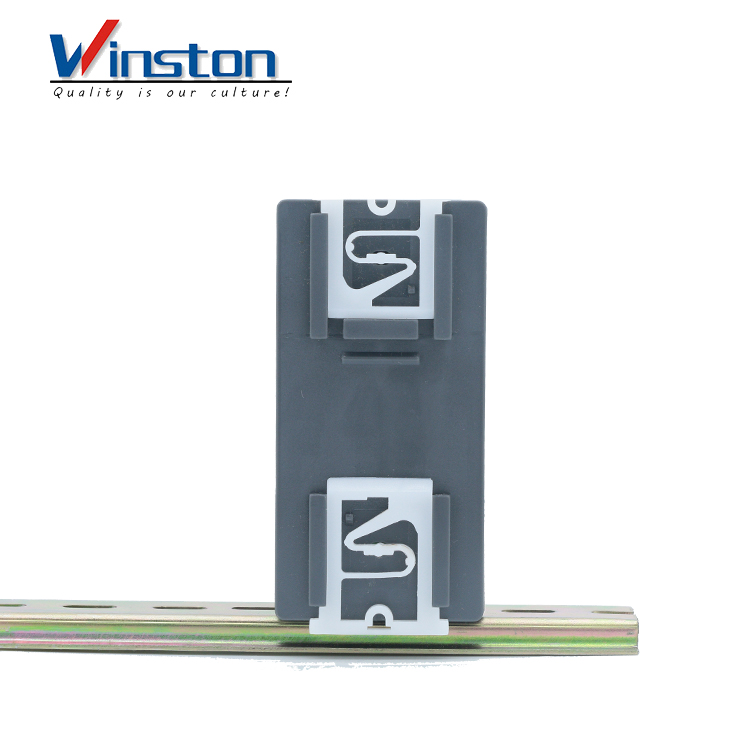

LP 25-24 Single output LED display Din-Rail Switching Power Supply 24W 2V 1A
Features:
Protection characteristic : short circuit/overload/overvoltage
High efficiency, high reliability and long service life.
Natural air cooling
100% full load burning test
LED power indication
LP-25
| Model/Specification | LP-25-5 | LP-25-12 | LP-25-24 | |
| Output | DC Output Voltage | 5V | 12V | 24V |
| Output Voltage tolerance | ±2% | ±1% | ±1% | |
| Rated Output Current | 4A | 2.1A | 1A | |
| Rated Output Current0 | 0-4A | 0-2.1A | 0-1A | |
| DC Output Power | 20W | 25.2W | 24W | |
| Triple and Noise | 80mVp-p | 120mVp-p | 240mVp-p | |
| Adjustable Range for DC Voltage | 4.75-5.5v | 11.4-13.2V | 20.5-26.5v | |
| Input | AC Input Voltage Range | 90-264VAC 100-360VDC 47~63Hz; | ||
| AC input current | 0.45A/115VAC 0.25/230VAC | |||
| Efficiency | 78% | 83% | 85% | |
| AC Inrush Current | Cold-Start Current: 10A/115V,20A/230V | |||
| Leakage Current | <2mA/240VAC | |||
| Protection | Overload Protection | 110%-150% | ||
| Protection mode: cut off output and restart | ||||
| Over Voltage Protection | 5.75-6.75V | 11-14V | 22-27V | |
| Protection mode: cut off output and reset automatically | ||||
| Environment | Work Temperature Humidity | -10℃+50℃ 20%~90%RH | ||
| Storage Temperature Humidity | -20℃+85℃ 10%~95%RH | |||
| Shock resistance | 10~500Hz,2G 10min,/1cycle,duration:60min each shaft | |||
| Safety | Voltage withstand capacity | I/P-O/P:2KVAC,I/P-FG:1/5KVAC,O/P-FG:0/5KVAC | ||
| Insulation resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC | |||
| Others | Size | 35*45*102(l*w*h) | ||
