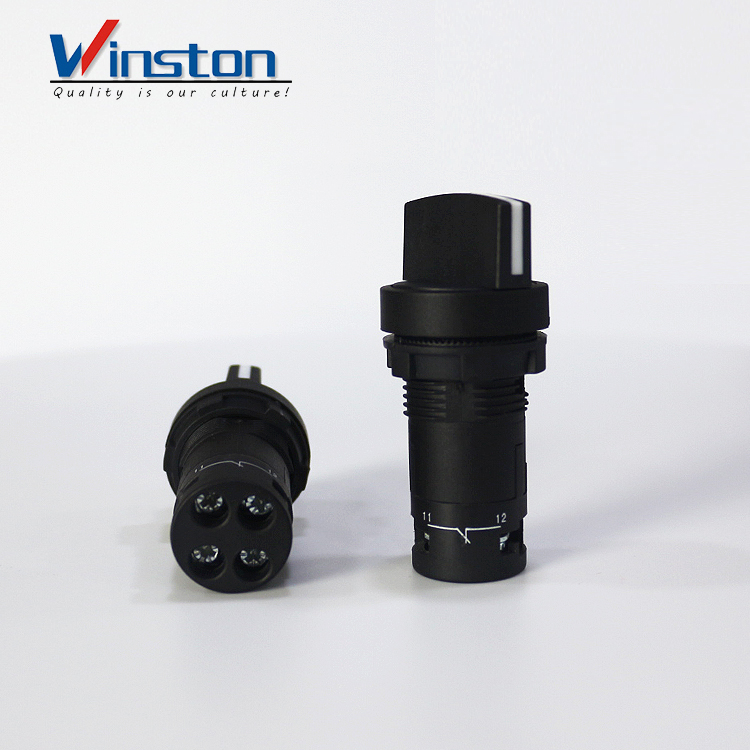

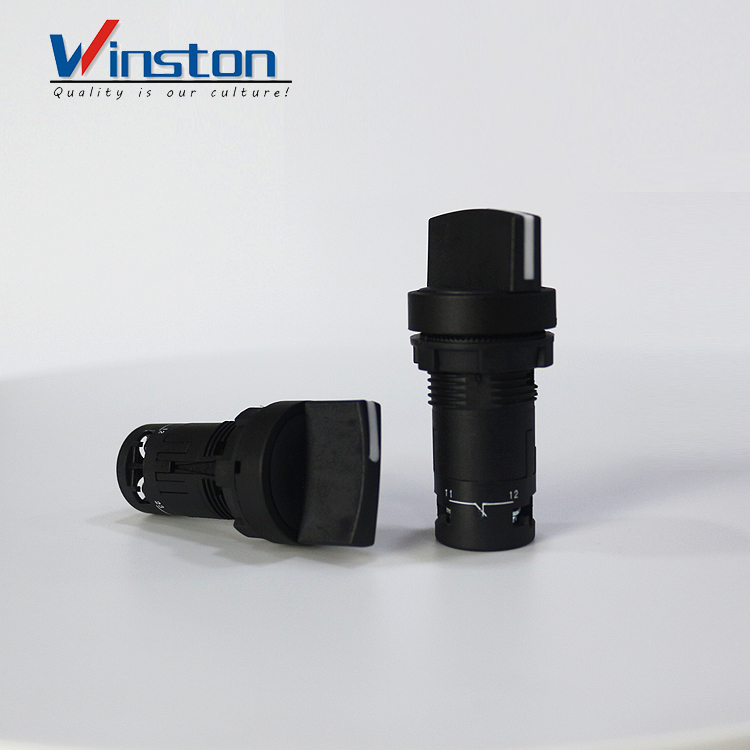

2contact Self-reset 2 Pole rotary switch Short handle button switch 22MM
XB series button switch
1. The contacts are made of AgCdO15 material, which has strong on and break power and long life.
2. The led button uses LED light for low power consumption and long life.
3. Both the knob switch and the key knob switch have a function to prevent follow-up and prevent the body from following the handle.
4. Two wiring methods are available:
(1) screw wiring, (2) plug-in wiring.
| |
-Screw wiring: simple and convenient.
-Plug-in wiring: high connection reliability, especially suitable for use in vibration more powerful places, such as: cars, lawn mowers, engineering machinery and so on.
5. Can be installed on the thickness of 10mm mounting panel, is the best of its kind.
6. Integrated structural design, installation is very convenient, while avoiding the installation of the quality problems caused by the lack of installation.
7. The product"s performance meets the requirements of the national standard GB14048.5 (IEC60947-5-1) and is CCC product certified.
Description of the wiring method and model:
(1)The wiring mode of the model listed above - screw wiring
(2)The following model in the previous colum plus-C,e.g. XB7-E1A10G-C, plug-in wiring(2.8*0.8)
| |
Note: The button can also be installed in the aperture of 25 mounting hole, after the addition of variable diameter ring can be installed in the aperture of the installation hole of 30.
XB series button switch technical parameters
Environment: | |
Meet the standards | GB 14048.5 , IEC 60947-5-1 |
Protective treatment | “TH” |
Ambient temperature
| Operating temperature: - 25 ~ +70 ℃ Storage temperature: - 40 ~ +70 ℃ |
Vibration resistance | 5 gn (2-500Hz) Conforms to IEC 60068-2-6 |
Protection level | Head: IP40 Terminals: IP20 |
Mechanical life | Spring-loadd button: 5 million times Knob switch: 1 million times Emergency stop button: 300,000 times |
Features of the contact: | ||||||
Rated insulation voltage | 250V | |||||
Agreed heat current | 10A | |||||
Operating voltage | 24V | 110V | 220V | |||
Operating current
| AC50/60Hz | Resistive load (AC-12) | 10A | 10A | 6A | |
Inductive load (AC-15) | 10A | 6A | 3A | |||
DC | Resistive load (DC-12) | 8A | 2.2A | 1.1A | ||
Inductive load (DC-13) | 4A | 1.1A | 0.55A | |||
Rated impact-resistant voltage | Uimp = 4 kV | |||||
Contact action | Slow break | |||||
Definitely split.
| N/C The contact is definitely disconnected (compliant with European safety standards) | |||||
Short-circuit protection | 10A | |||||
Wiring capabilities
| Screw wiring
| Minimum 1 x 0.5 mm2 without a wire connector Tightening moment: 0.5 N.m (recommended value) | ||||
Up to 2 x 1.5 mm2 with wire connector head Tightening moment: 0.5 N.m (recommended value) | ||||||
Plug-in wiring Connector | 0.8*2.8 mm Faston Connector | |||||
