5KG CO2 CE fire extinguisher with valve
Features and Applicated :
Clear idea , low toxic , quick extinguishing , no residual ,
For Initial Fire Caused by Liquid , gas , and electrial equipment
Safe for use on clothing , equipment , valuable document and folder
1. Detail description for 5KG CO2 CE fire extinguisher.
Cylinder Size: Diameter 140mm, Height 640mm
Thickness: 4.5mm Neck Ring: PZ27.8
Discharge Time: > 12S
Discharge Range: > 4m
Temperature Range: -30°C ~ + 60°C
Working Pressure: 80bar
Test Pressure: 250bar
2. Cylinder size for 5kg CO2 CE / 5KG CO2 CE fire extinguisher with valve:
Diameter 140mm * height 640mm
3. Detail accessories for 5KG CO2 CE:
. CE valve, chrome body, red handle, hose outlet:W21.8

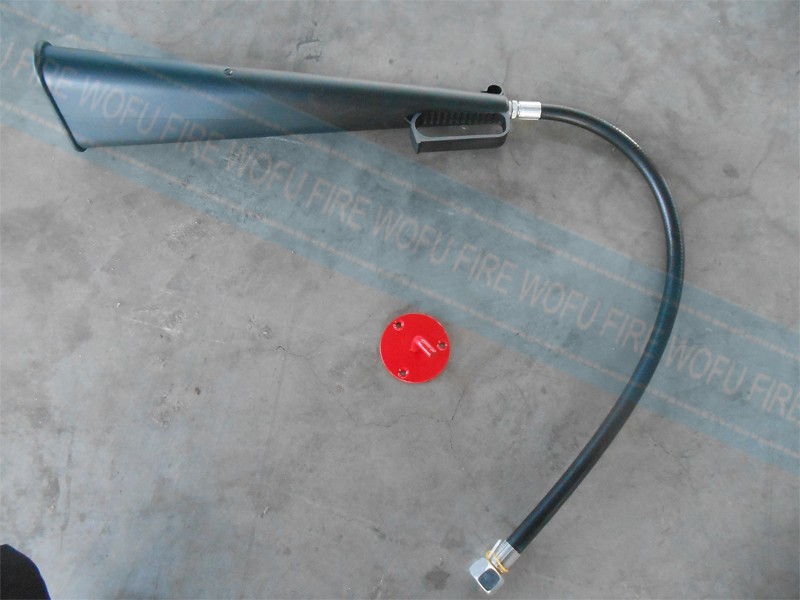

. Rubber discharge hose with horn
. Siphon tube, PVC, thread M10*1, length:580mm
. Red round hook
. Red plastic sealing
Kindly Reminder:
Fire Extinguisher are dangerous cargo under IMO 1044 Class 2.2 by international sea bureau, so all the shipment must shipped as DG cargo
1. All cartons must stick IMO green label
2. All container must pull green net.
3. Danger shipping mark "1044"
| DESCRIPITON | PACKING/CTN | ||||
| QTY | N.W | G.W | CBM | CTN SIZE | |
| 5KG CO2 Fire Extinguisher (carbon steel) | 1 | 16.20 | 16.7 | 0.023 | 20*15*76.5 |
