Mexico Type Portable Dry Powder Empty Fire Extinguisher
1. Product specification:
Cylinder size: DIA*HEIGHT: D110*H310mm
Neck ring size: G 3/4""

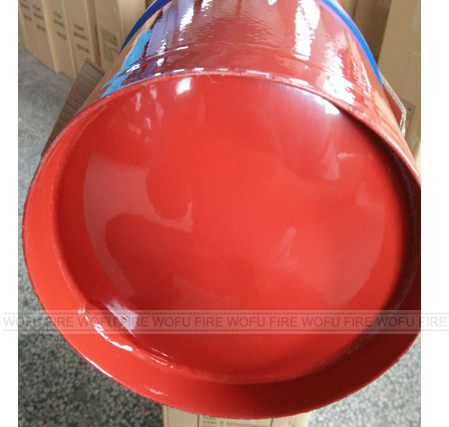

Bottom shape: inside weld
Thickness: 1.2mm
2. Product accessories:
Nozzle: Blue nylon nozzle
Valve: Aluminum valve without hanger loop, small blue handle
Gauge: Diameter 37mm, Thread: NPT 1/8"", Surface: 1.2
Siphon tube: PVC, Thread: M16*1.5, Length: 230mm
Bracket: Steel red bracket
Tamper sealing: Yellow plastic, Length: 250mm
Cylinder paints: 7325 red painting
3. Shipment packing details:
each 2KG ABC Fire Extinguisher packed with one plastic bag, then put in carton
carton size: 14*14*41cm
gross weight of carton: 3KG
| Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
| Fire Extinguisher Maintenance |
1. Fire extinguisher is pressure vessel, should prevent collision during the transportation;
2. Should placed within reach and in a dry and ventilated place at a temperature of -10°C~+45°C;
3. Preventing damps, solarization;
4. The parts in good installed, check it frequently;
5. Regularly check if inside powder is caking, replace if yes;
6. Regularly check if gauge pointed in green area, to find lower or overcharge gas, refill them by the pointer"s condition;
7. Recharge immediately after complete or partial use;
8. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used.
