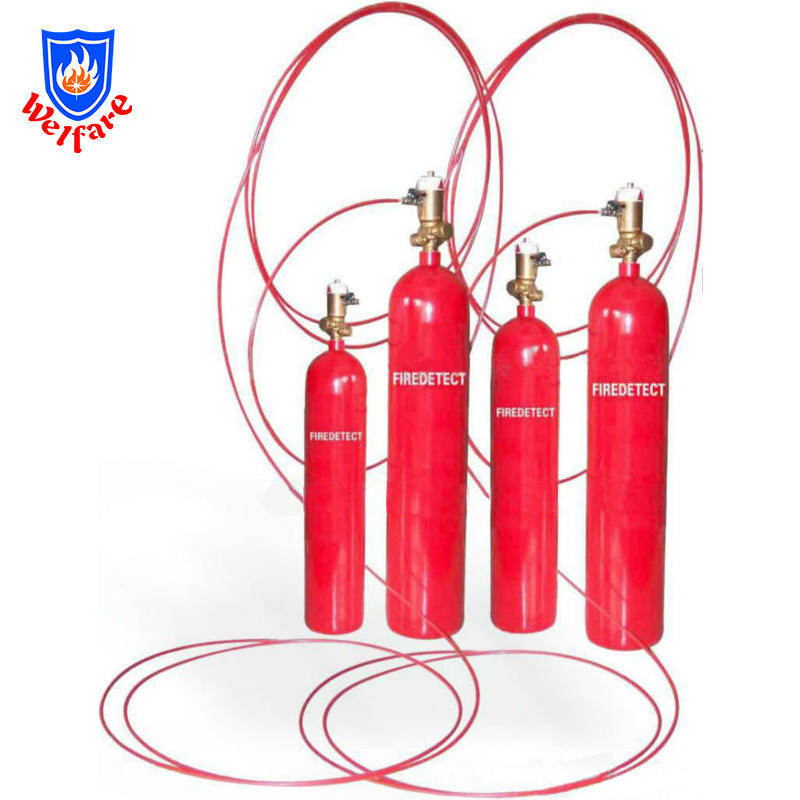

| 3KG FM200 Fire Trace System |
1.Profile introducution:
Fire trace system is one of the fire protection industry Innovation.As a set of simple, low cost and highly reliable independent automatic fire extinguishing system, it does not need any power supply,
No special sense of smoke, temperature detector, without complex equipment and pipeline, using their own accumulation, relying on a pressurized
The fire ground pipe and a set of ground bottle group can quickly, accurately and effectively detect and extinguish fire, set the alarm and fire fighting in a Body, the fire extinguished in the initial stage.Can reduce the engineering cost, also can reduce the cost of each fire extinguishing,and will not cause any injury to personnel.The fire trace system can from the closed large room space protection
For direct valuable equipment of all kinds of small closed space protection.
2.Main specification:
Two type:direct and indirect.
Fire extingshing agent: co2 and fm200 gas
Cylinder size:1-7kgs
Working temperature:0℃~50℃ for fm200 fire trace system,0℃~49℃ for co2 fire trace system

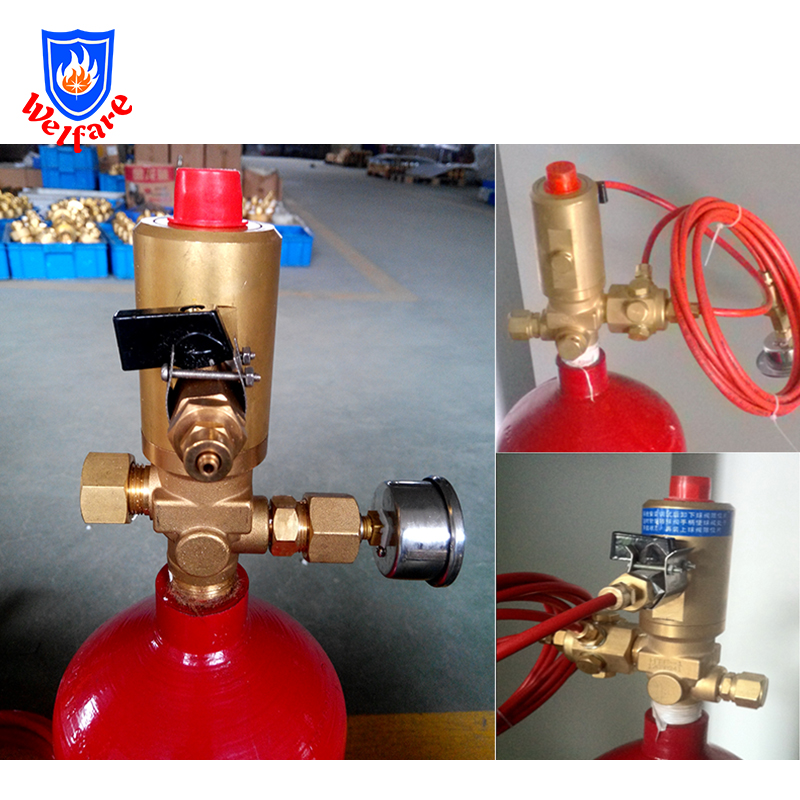

Accessories:stored cylinder+valve+diptube,fire detect tube,nozzle,tee connector,straight connector,pressure switch,
terminal gauge,terminal pressure check valve
Accessories: stored tank,fire tube headvalve,fire detect tube with diptube,agent (CO2 or gas),terminal gauge, terminal pressure check valve, pressure switch,tee connector, straight connector
| 1. Direct fireTube system |
Fire detect tube through the container valve connected to the fire extinguishing agent containers, for fire detection, fire tube blasting, in case of fire
The pressure drop in the pipe of the fire, start the container Valves, by the transformation of thecontainers in the valve outlet Joint, lowered the extinguishing agent to the original fire tube
explosion Broken hole to release.
Direct agent fire extinguishing device according to the storage of extinguishing fire.Different
types can be divided into:
Carbon dioxide directly type fire tube system
Direct type of HFC-227ea fire tube system
| 2. Indirect fire tube system |
Fire detect tube through the container valve connected to the fire extinguishing agent
Containers for fire detection, fire in case of fire
Test tube blasting, the use of pressure in the tube of fire
Down, start the container valve, through the release of tube to spray mouth release agent.
Indirect agent fire extinguishing device according to the storage of extinguishing fire agent
Different can be divided into:
Indirect carbon dioxide fire tube system
Indirect HFC-227ea fire tube system
| 3.Fire tube system where to use: |
Install directly on machine,such as electrical machine,sever machine,beam box,engine,precision machine
