- Place of Origin:
- Zhejiang, China
- Brand Name:
- Welfare
- Model Number:
- all size
- SIZE:
- 1kg TO TO 100KG
- TYPE OF EXTINGUISHER:
- ABCBC CO2 WATERFOAM
- PRESSURE:
- STORED AND CARTRIDGE
- TYPES:
- PORTABLE WHEEL AND HANGING
- DRIVING GAS:
- NITROGEN OR CO2
- MATERIAL:
- STEEL OR CARBON STEEL STAILESS STELL
- COLOR:
- RED BLUE BLACK CREAM
- PACKING:
- CARTON
- OTHER PARTS:
- VALVE NOZZLE HOSE SAFETY PIN SEALING
- Supply Ability:
- 300000 Piece/Pieces per Month
- Packaging Details
- all fire extinguisher packed by export carton, we have another details of packing list pls contact us , or find other size in this website
- Port
- Ningbo, China

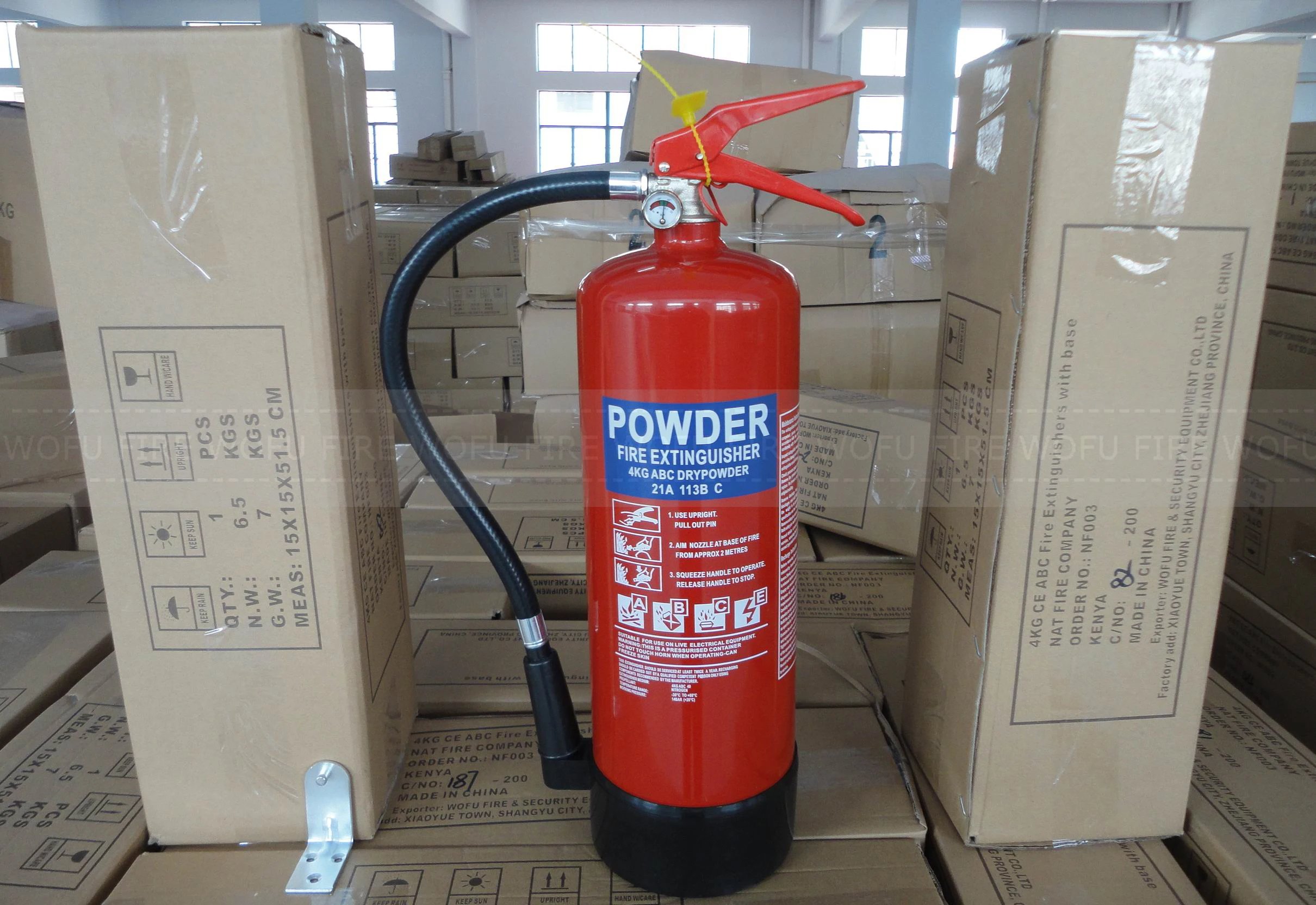

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 15 To be negotiated
1. How many types of fire extinguisher we have?
According to inside agent
1. ABC / BC fire extinguisher

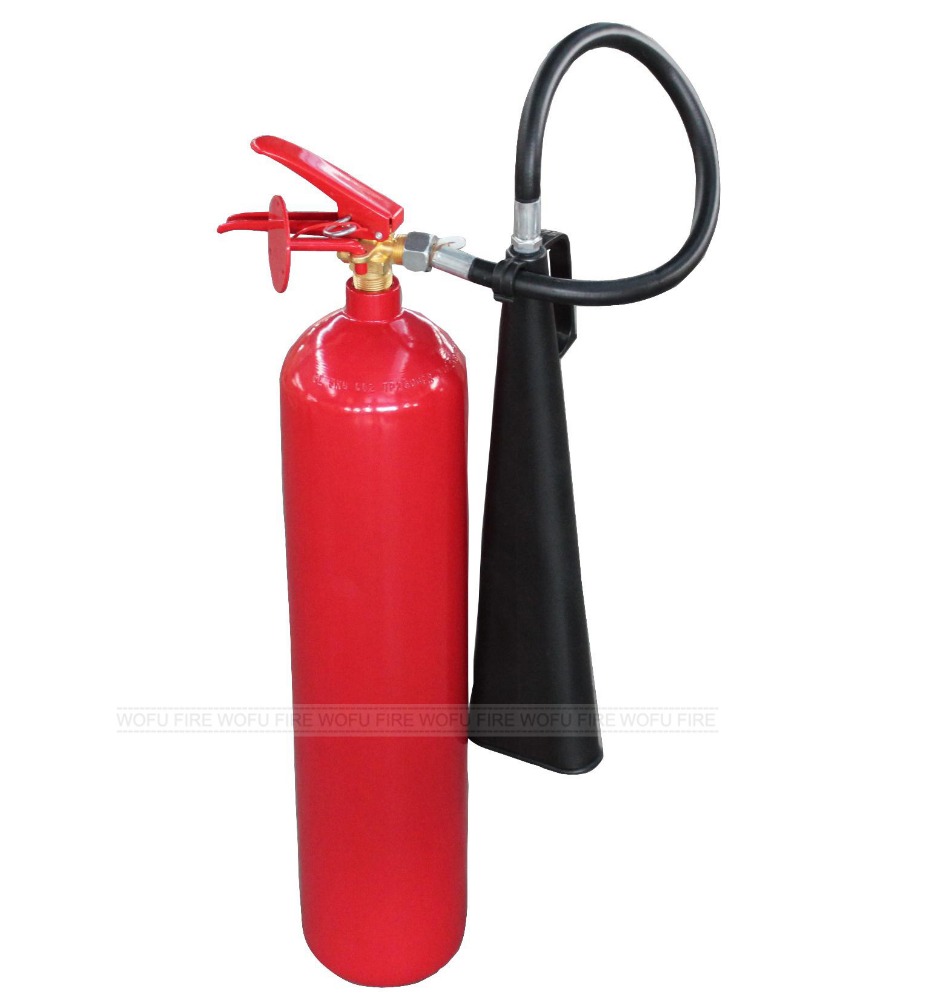

2. CO2 fire extinguisher
3. Foam fire extinguisher
4. Water fire extinguisher
5. HFC-236 fire extinguisher
7. HFC-227EA Fire extinguisher
2.Acording the working way: portable, trolley, Hanged
Portable size: 1KG, 2KG, 3KG, 4KG, 5KG, 6KG, 8KG, 9KG, 12KG
2LBS, 5LBS, 10LBS, 15LBS, 20LBS
3Ltr, 6Ltr, 9Ltr
Trolley size: 20KG, 25KG, 30KG, 35KG, 45KG, 50KG, 75KG, 100KG
50LBS, 100LBS, 150LBS
45Ltr, 50Ltr, 100Ltr
Hanging size :4KG ,6KG, 8KG 9KG , 12KG 20KG
see pictures for reference
Main Spefication of each products
ABC FIRE EXTINGUISHER TECHNICAL SPECIFICATION | |||||||||
Model | MFZ(L)1 | MFZ(L)2 | MFZ(L)3 | MFZ(L)4 | MFZ(L)5 | MFZ(L)6 | MFZ(L)8 | MFZ(L)9 | MFZ(L)12 |
Dose(kg) | 1±0.05 | 2±0.06 | 3±0.08 | 4±0.08 | 5±0.1 | 6±0.1 | 8±0.16 | 9±0.16 | 12±0.2 |
Effective sparying time(s) | ≥6 | ≥8 | ≥8 | ≥9 | ≥9 | ≥10 | ≥12 | ≥17 | ≥25 |
Discharge range(m) | ≥2.5 | ≥2.5 | ≥2.5 | ≥4 | ≥4 | ≥4 | ≥5 | ≥6 | ≥7 |
Operating temperature(℃) | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 | -20~55 |
Fire rating | 5A/34B/C | 8A/55B/C | 12A/70B/C | 13A/89B/C | 21A/113B/C | 27A/144B/C | 34A/183B/C | 43A/233B/C | 55A/233B/C |
Working pressure(Mpa) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Pressure of the water pressure test(Mpa) | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
