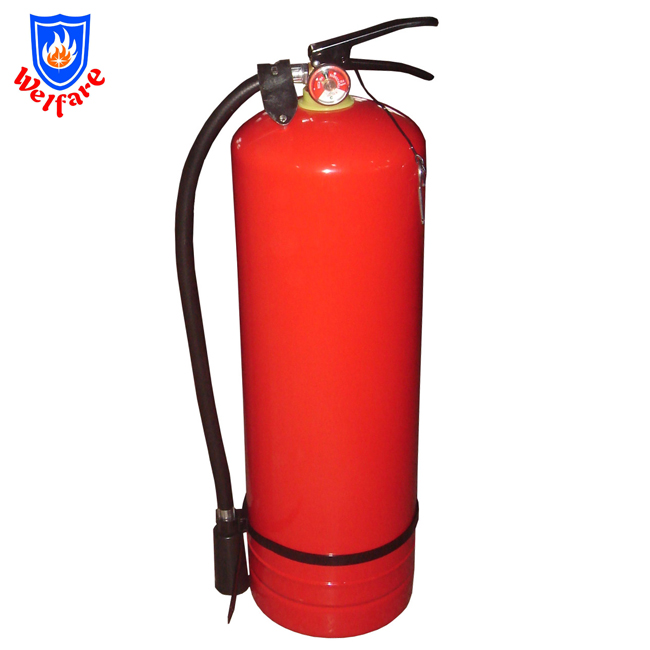

9KG 40% abc dry powder fire extinguisher
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids , Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
1.Main Specification of Extinguisher, 9KG ABC:
Cylinder size: D175MM* H550MM
Temperature Range : -20°C ~ +55°C
Working Pressure : 17Bar
Test Pressure : 27Bar
2. Cylinder size and parts of extinguisher fire 9KG :
Cylinder size: D175MM* H550MM
3. Accessories details of 9KG ABC fire extinguisher:

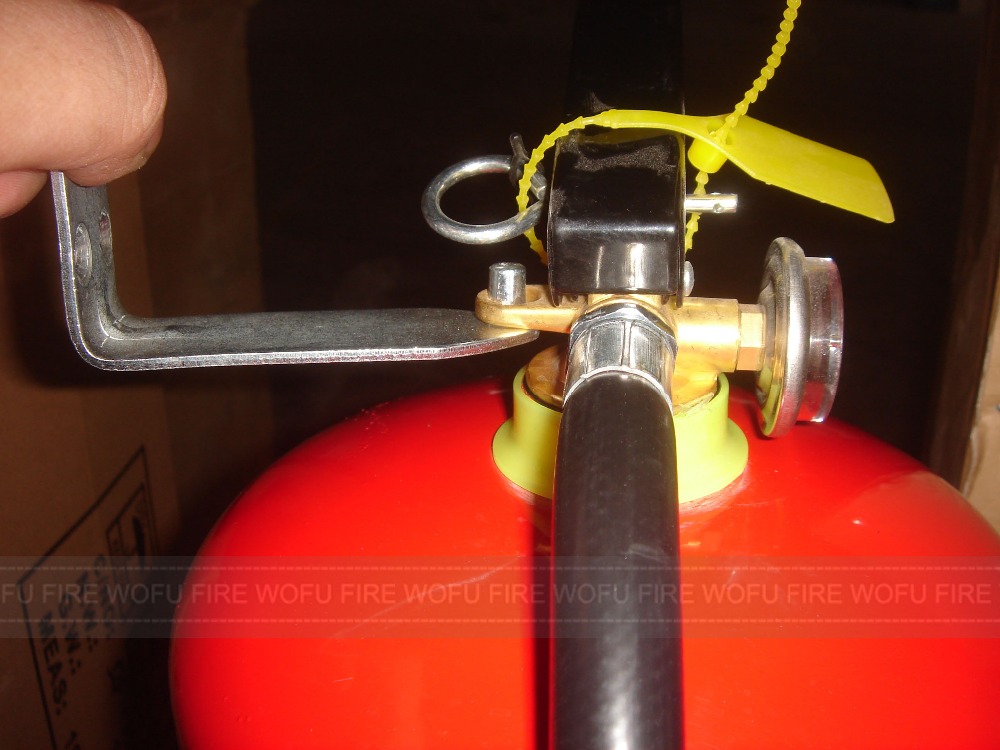

Brass valve with hanger loop, middle red handle, hose outlet M16*1.5
Gauge, thread: M10*1-12.5, surface 13.7
Siphon tube, PVC M16*1.5*505mm
PVC hose, thread: M16*1.5*630mm
Yellow plastic sealing
Steel bracket, PVC black belt 700mm length
4. Packing and Loading details:
Packing Details : 1PC a carton
G.W: 15KGS
Size: 18*18*64
