Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- welfare
- Cylinder Capacity:
- 20L
- Storage pressure(20c):
- 2.5mpa
- Extinguishing agent:
- hfc-227ea
- Startup voltage:
- DC24V
- Sartup current:
- less or equal 1.5A
- Applicability:
- total flooding mode
- Temperature range:
- 0 to 55 degree
- Supply Ability:
- 200 Set/Sets per Month
- Packaging Details
- wooden case
- Port
- guangzhou
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 10 To be negotiated
20L hfc-227ea electromagnetic hanging automatic fire extinguisher
| 1.HFC-227ea fire extinguishing equipment introduction: |
The heptafluoropropane HFC-227ea Extinguishing Agent has the features of clean, low-toxic,
good electric insulativity, highly effective extinguishing and without destroying the atmospheric
ozonosphere. It’s a better replacement for clean gas of the alkylogen extinguishing agent.
Currently, more and more heptafluoropropane HFC-227ea Extinguishing System is replacing
the Hose Systems in the international market.
The Electromagnetic Hanging heptafluoropropane HFC-227ea Extinguishing Equipment is a new
and high-efficient auto extinguishing equipment, it has the features of no pipeline, non-occupy
space and easy installation, which is particularly suitable for those environment with confined space, i.e. communication base stations, intertank, etc.
| 2.HFC-227ea hanging extinguishing equipment all models technicals: |
Storage Equipment Sepc. | Max. Extinguishing Agent Charge(kg) | Outside Size DX H(mm) | Storage Pressure (20℃) | Spray Time | Operating way | Max. Working Pressure | Operating Temperature Range |
20L | 22.4 | 350X575 | 1.6MPa / 2.5MPa | ≤8s | Electrom-agnetic operation (DC24V/1.2A) | 2.5MPa / 4.2MPa | -10℃~+50℃ |
30L | 33.6 | 420X575 | |||||
40L | 44.8 | 480X590 | |||||
50L | 56 | 530X605 | |||||
60L | 67.2 | 580X610 |

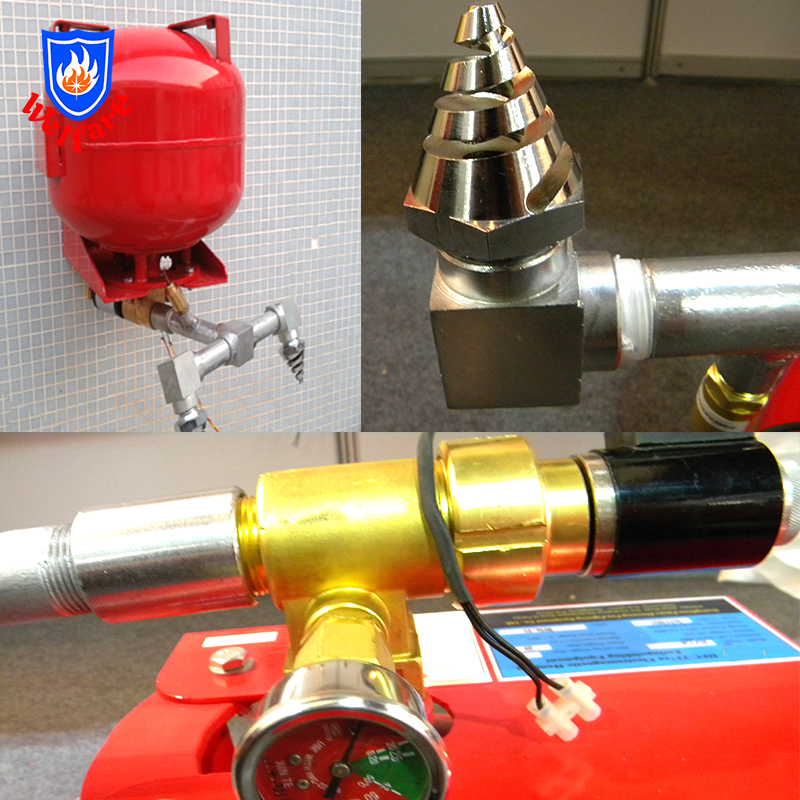

| 3.20L HFC-227ea hanging extinguisher main photos: |
All parts made of this extinguisher: round cylinder,gauge,valve,electrical actuator,short
pipe,pressure switch,right angle elbow,spiral nozzle,wall bracket.

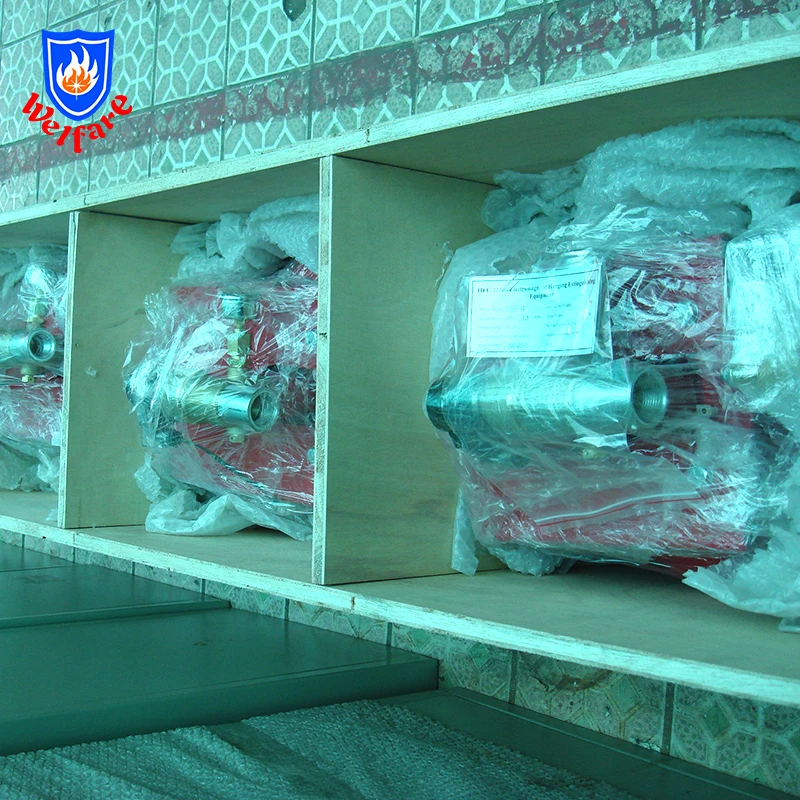

| 4.20L HFC-227ea hanging extinguisher packing: |
Use bubble bag wrap the cylinder and accessories,then packing into wooden case.
