| Filling Agent | ABC 40% | ||||||

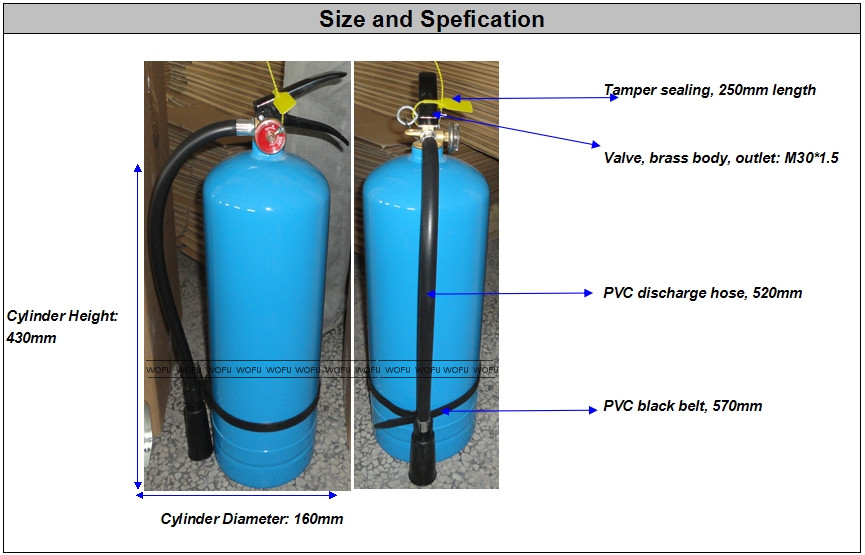

| Cylinder Size | Seamless, D160*H430mm | ||||||
| Thickness | 1.2mm | ||||||
| Neck Ring | M30*1.5 | ||||||
| Bottom Shape | Curls base | ||||||
| Valve | Brass valve w/ hanger loop, middle handle | ||||||
| Gauge | Diameter 37mm, thread: M8*1 | ||||||
| Hose | PVC, M16*1.5*520mm | ||||||
| Siphon Tube | PVC, M16*1.5*395mm | ||||||
| Hook | Steel wall hanger | ||||||
| Tamper Sealing | Yellow plastic, 250mm length | ||||||
| Painting Color | Blue 5217 painting | ||||||
| Temperature Range | -20°C ~ + 55°C | ||||||
| Working Pressure | 14Bar | ||||||
| Test Pressure | 27Bar | ||||||
| Discharge Time | ≥ 16S | ||||||
| Discharge Range | ≥ 4M | ||||||
| Suitable Fire | 3A / 55B C | ||||||
