FM200 GAS (hfc 227EA) GAS filling machine for fire Suppresion cylinder HFC-227ea Gas is one expensive extinguishing agent , upgrade filling effective and keep away gas losing very important ,
Filling HEAD OF THE MACHINE
How HFC-227ea filling machine to be connected when in filling operation
HFC-227ea Gas filling machine Operating instruction
1.Usage:
The filling machine is suitable for use in liquid medium without pressure, such as seven fluorin propane, six fluorine propane etc. agents partial filling.
The filling machine have nitrogen inlet hole, through nitrogen to pressing the medium in the storage container,using siphon phenomenon release medium of storage container,to filling.Filling mouth is divided into two:QMP1 and QMP2.
Use of this filling machine can improve the filling efficiency and reduce the medium loss.
2.Filling machine structure:
1.Four pressure gauges:
Pressure gauge P1(0-25MPa)is show nitrogen stored cylinder pressure.
Pressure gauge P2(electric joint pressure gauge 0-4MPa)is show medium stored cylinder pressure.
Pressure gauge P3(0-10MPa)is show pressure after filling medium to cylinder.
Pressure gauge P4(0-10MPa)is show pressure after filling medium to cylinder.
2.Five kinds control valve:
F1 is pressing control valve for medium stored cylinder.
F2. F4 respectively is pressing control valve after filling medium to cylinder.
F3. F5 respectively is quality(weight) control valve for filling medium to cylinder.
3.With a sound and light alarm device(AC.220V input);
HFC227EA filling machine details |
|
Product name | HFC-227EA suppression filling machine |
Type | Automatic |
MOQ | 1 set |
Packing | Wooden box |
Delivery time | Ten days after deposit received |
Payment terms | T/T, L/C |
Application | It can be used for HFC-227EA fire suppression system cylinder gas filling. (Clean agent HFC-227EA gas, HFC-236FA). |
Features | 1. It applicable to various of filling cylinder, such as 20ltr, 40ltr, 70ltr etc. |
Certificates | ISO9001, CNAL, |
Fire Suppression System HFC-227EA Equiment Name

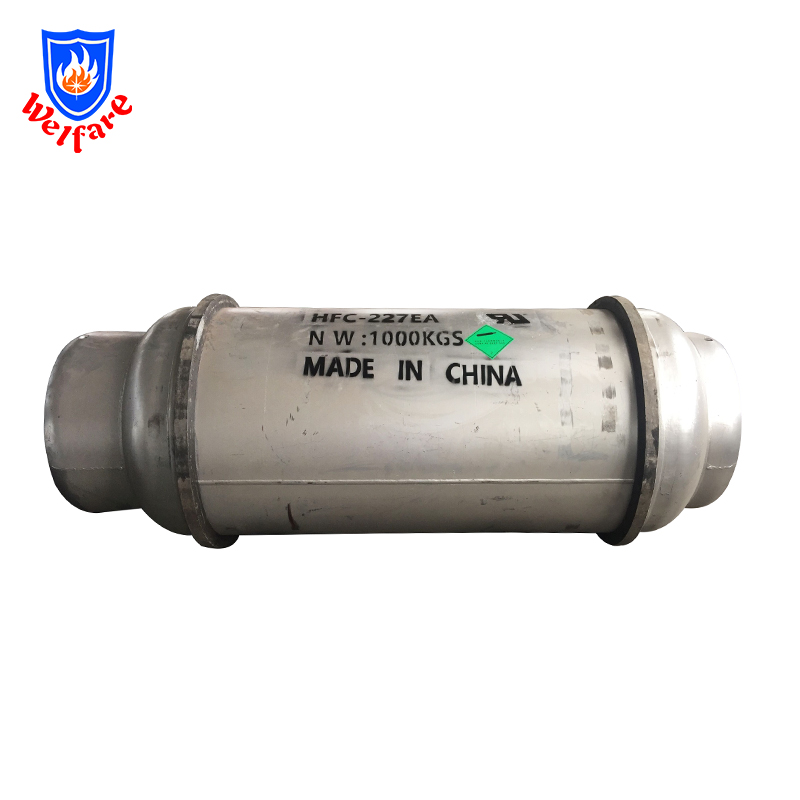

Item | Equipment | Unit |
1 | Fire Alarm Control Panel (FACP) | set |
2 | HFC-227EA Gas | kg |
3 | HFC-227EA Gas storage container with impulse valve(one 100LTR filling 87kg gas ) | each |
4 | FM-200 Gas storage container with impulse valve(70ltr filling 52kg ) | each |
5 | Electrical Actuator | each |
6 | Manual Actuator (control) | each |
7 | Discharge Nozzle (brass nozzle 360Degree) | each |
8 | Intelligent Smoke & Heat Detector with Optional CO Sensor and base | each |
9 | emergency light | each |
10 | Addressable input/output module | each |
11 | Fire Alarm Bell (6") | each |
12 | Break glass call point | each |
13 | Abort switch | each |
14 | Horn and strobe | each |
15 | Gas discharged signage for 2 room | Lot |
16 | Evacuate area signage for 2 room | Lot |
17 | M.S pipe ( ERW) for 2 room | Lot |
18 | Surface conduit wiring | Meter |
19 | Assemblying charges |
|
