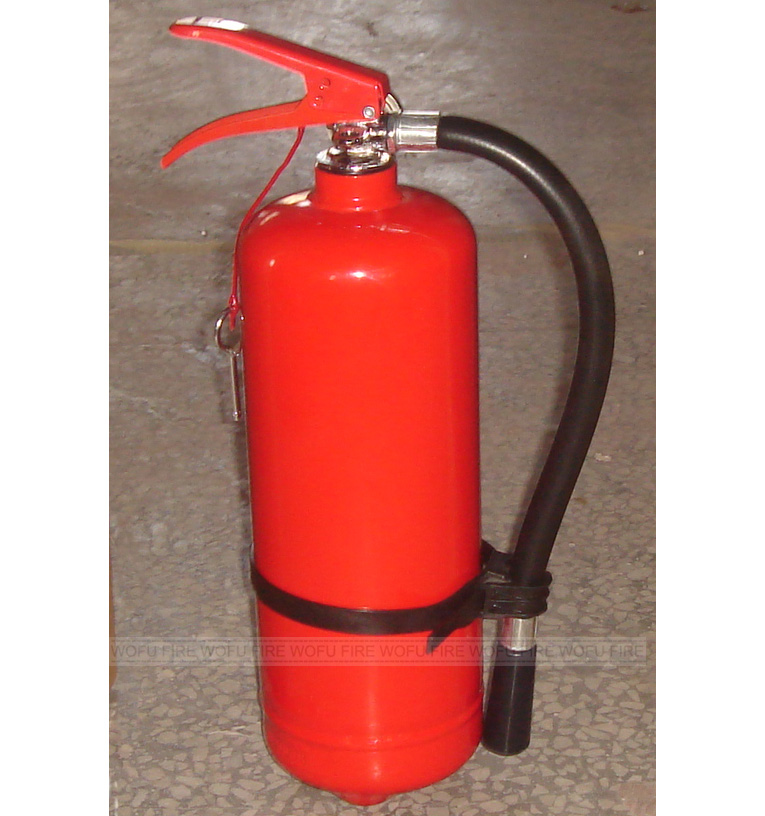

5LBS empty cylinder fire extinguisher with steel bracket
| 1.5LBS empty fire Extinguisher main specification: |
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
Suitable for combating fires
Combustible Solids , Flammable Liquids and Gas, Live Electrical Equipment
easier clean up after fire
Technical Data :
Capacity : 2.25+0.05kg
Discharge Time : > 10s
Discharge Range : > 3m
Temperature Range : -20°C ~ +55°C
Fire Class : 1A / 21B C
Working Pressure : 14Bar
Test Pressure : 27Bar
Certificate : ISO, CE Approval
This 5lbs empty fire extinguisher have two types:
1.With plastic nozzle with steel bracket:
2.With discharge hose with belt:
| 2.5LBS Empty cylinder fire extinguisher details and accessories: |
Accessories :
Red small handle,chrome plated valve,without hanger,with the word of "CE"
Black plastic nozzle
PVC siphon tube M16*1.5*270mm
Spring gauge,37mm type,thread NPT1/8,surface 13.71,195psi
Red plastic sealing
Steel black bracket

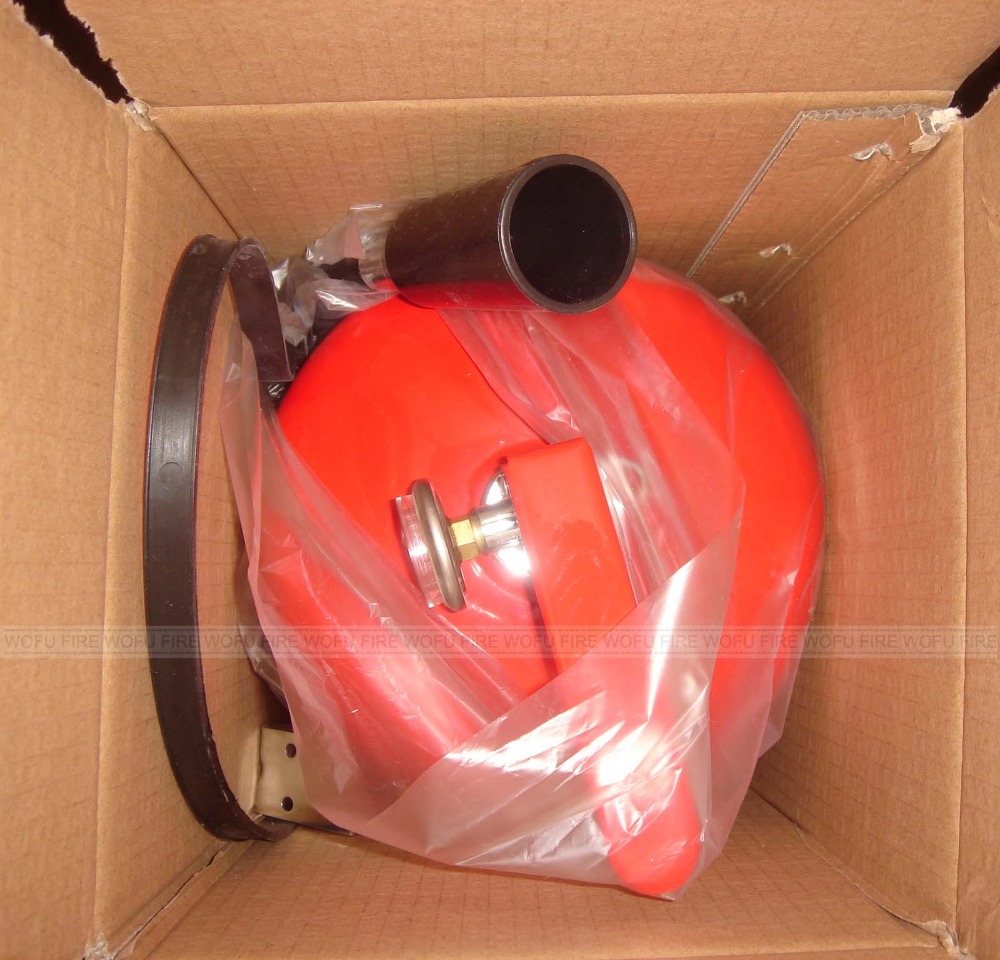

| 3.5LBS Empty fire extinguisher packing pictures: |
1pc per carton
G.W: 2.5KG
Ctn size: 13*13*40cm
| 4.Fire Extinguisher Operation Instruction |
1. Quickly take extinguisher at a site, extend to 7 meters away to the fire;
2. Shaking cylinder up and down before use, to loose the inside powder;
3. Take out the discharge hose, then safety pin;
4. Hold the hose with one arm, aim the nozzle of the fire;
5. Push the handle, sweep side to side;
6. Keep upright position during powder spray, do not lying, upside down.
