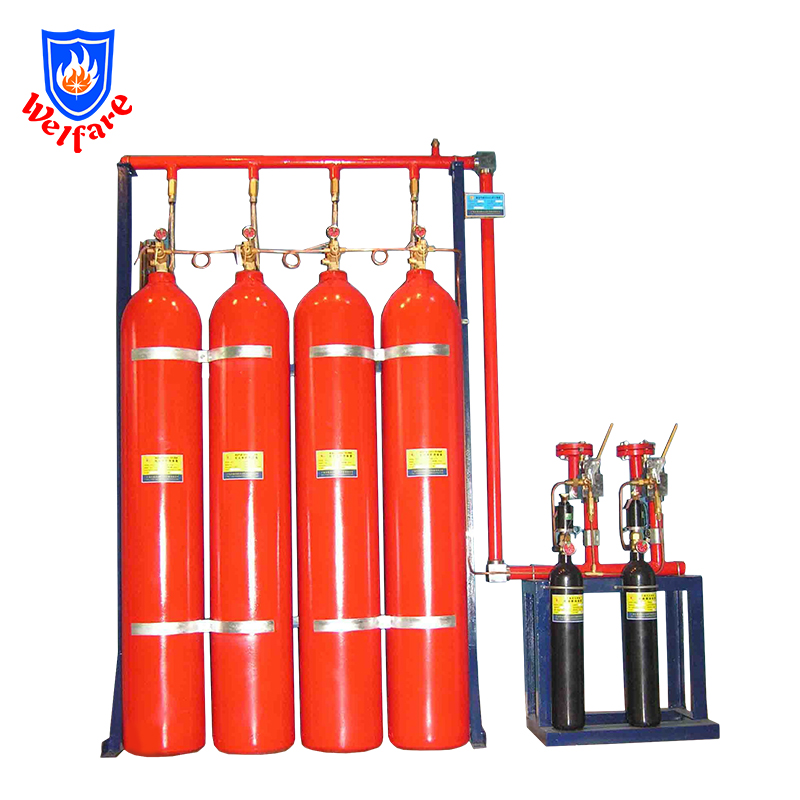

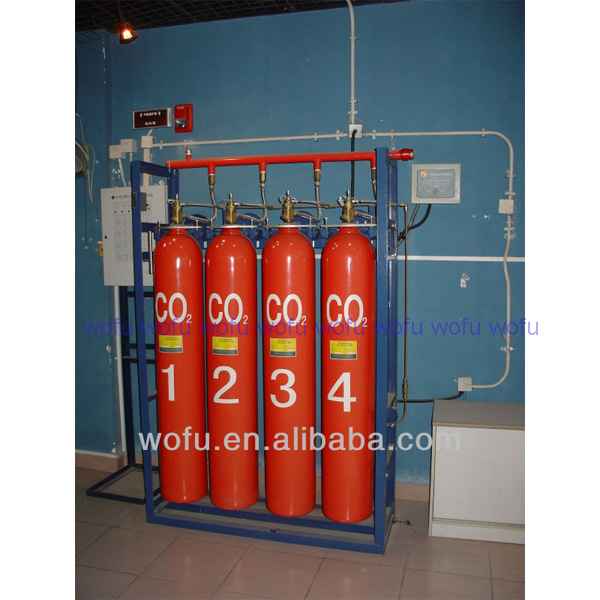

CO2 GAS FIRE SUPRESSION SYSTEMS
THERE ARE MORE THAN 4000 PROJECTS AND BULDINGS USE OUR FIRE SUPPRESSION SYSTEM CO2 IN CHINA NOW
SINCE CO2 HAS SERVAL ADVANTAGE OF THE FIRE SYSTEM AND WE ARE SKILLED IN DESIGN AND MANUFACTURING QUALITY SYSTEM THIS LINE MORE 12 YEARS
1. Features and advantages:
CLEAN AND LOW TOXCITY
INERT
WITHOUT RESIDUAL AFTER EXTINGUISHING
EASY TO SOURCE ,PRODUCE AND ENOMIC IDEA
2. Operational principle:
suffocated
cooling and temperature drop
3. Apply to:
Eletrical plant ,power stantion
Printing factor
Oil tank , painting factory
Etc easy be fired area ,room or production line
Also be applied to computer room ,
libray ,file room,communication center
4. Parts and accessories:
FIRE CONTROL PANEL SYSTEM
SMOKE/HEAT/PHOTIC DETECTOR SYSTEM
ALARM SYSTEM (FIRE BELL ,MANUAL CALL,VIDIO-AUDIO ALARM
EQUIPMENT ;CYLINDER , VALVE ,SELETIVE VALVE,
LIQUID ,CHECK PIPE ,PRESSURE SWITCH ,
NOZZLE ,PIPE ETC ......
5. Acuated means:
AUTOMATIC, EMERGENCY MANUAL,MACHINICAL AND ACTED ONE BY ONE FOUR CHOICE
6. Standard: CNPA GB16669-1996 CO2 system parts technical standards
7. Cylinder main technical:
Material : 37Mn steel
Height : total 1703 mm, cylinder height 1540mm
diamater :267mm
working pressure: 15mpa
Valve : PZ39, outlet of dicharge hose M22*1.5
thickness :6mm
Hydraulic Test : 22.5Mpa
Valve Material : Brass Alloy stem 1 Cr18Ni97i
Send us your Room size and plan drawing now to make CO2 system Design Free Charges
Other Commercial Term
1. Delivery time : 50bottle /set of system within 15days
2. payment : T/T or LC at sight irrevocable
3. packing Wooden case
4 Shiping special note : this is Danger Cargo Shiping as per international Rules . IMO1044 Glass 2.2
