Click on the image to view the original image
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Welfare
- COLOR:
- RED
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 68X37X33 cm
- Single gross weight:
- 18.0 kg
- Package Type:
- cARTON50pcs

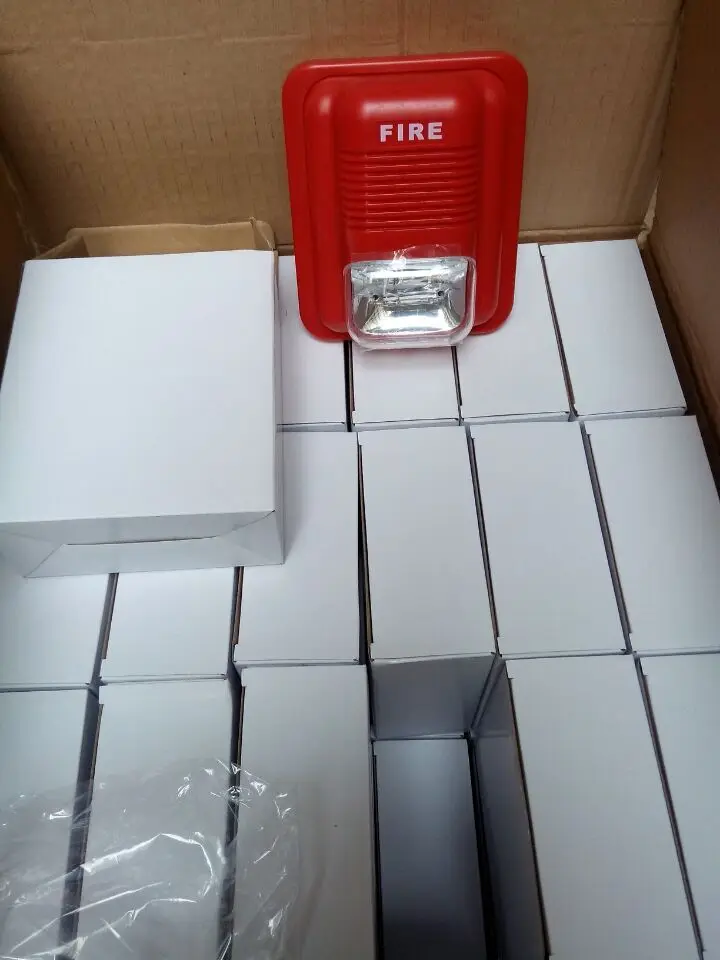

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 10 To be negotiated

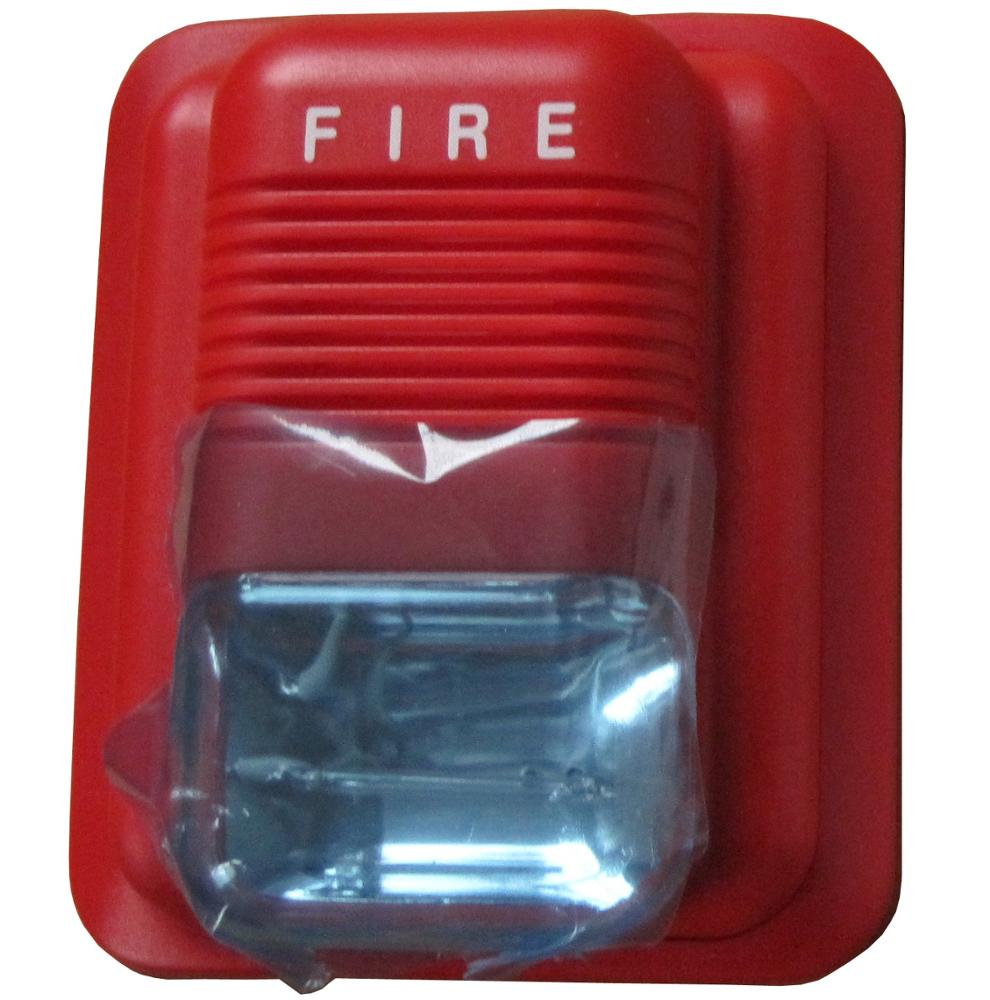

Fire strobe alarm
1.Technical specifications:
1. Size:134*115*48mm;
2. Operating Voltage: DC 16V-DC30V;
3. Working Current: 100-170mA;
4. Flash Intensity: ≥1.2WS;
5. Flash Period: ≤1.5S;
6. Alarm Sound:≥100dB;
7. Life Of Flash Light: ≥40,000 time;
8. Alarm Sound Type: Ambulance Sound, Pumper Sound, Car Sound;
9. Ambient Temperature: -10 ~ +55oC;
10. Ambient Humidity: ≤95%RH.
11. LED Flash
2.Installation:
1. At first, get into hole well in the install place ( wall), the hole distance is 65mm, installs the plastic
and swells, stipper,( if the wall is the wooden material, can be by attacking the screw
and fastening by oneself directly);
2. Connect DC24V power and network link, and set up a kind of alarm sound well according to the need;
3. Specialize in screw by oneself with two, fix the alarm to install in the place, tighten the screw alarm.
3.Trait:

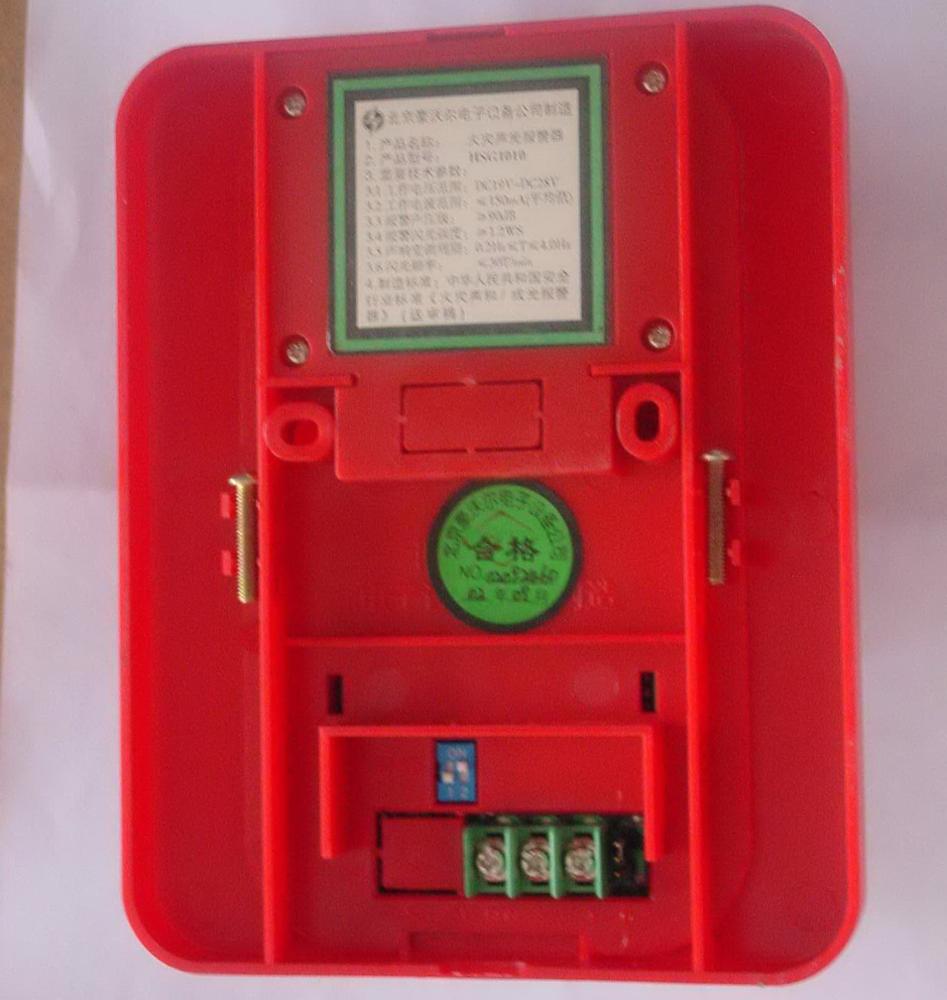

Selects two or the four-wire system wiring method, the main line end receives two main lines, not polarization,
power source termination to DC24V power line;
4.Purpose
The sound-light Fire alarm apparatus are one kind terminal device for alarm, it is fit for the sound&light alarm
when the fire happens.
