0.5KG ABC dry powder mini car fire extinguisher
mainly used for vechile purpose, spefical for car, good for A, B, C, E Fire
Cylinder can be refillable
Good For Car Safety,Cheap price, Car bracket in plastic or Steel choice.
| 1.0.5kg Mini Car fire extinguisher main specification: |
| Cylinder size | D75*H200 mm | ||||
| Neck ring | M24*1.5,with green fluorescence | ||||
| Bottom shape | curls base | ||||
| Thickness | 0.9mm | ||||
| Valve | Brass valve without hanger loop,small black handle | ||||
| Gauge | Diameter 30mm,thread:M10*1-12.5,195Psi | ||||
| Nozzle | White nylon nozzle,thread:M10*1.5 | ||||
| Siphon tube | PVC,thread:M16*1.5,length:200mm | ||||
| Bracket | Steel black bracket | ||||
| Tamper sealing | yellow plastic,250mm length | ||||
| Cylinder painting | 7325 red painting | ||||
| Temperature range | -20℃ ~ +55℃ | ||||
| Working pressure | 14bar | ||||
| Test pressure | 27bar | ||||
| Discharge time | ≥8s | ||||
| Discharge range | ≥3m | ||||
| 2.0.5kg Mini car fire extinguisher detail pictures: |

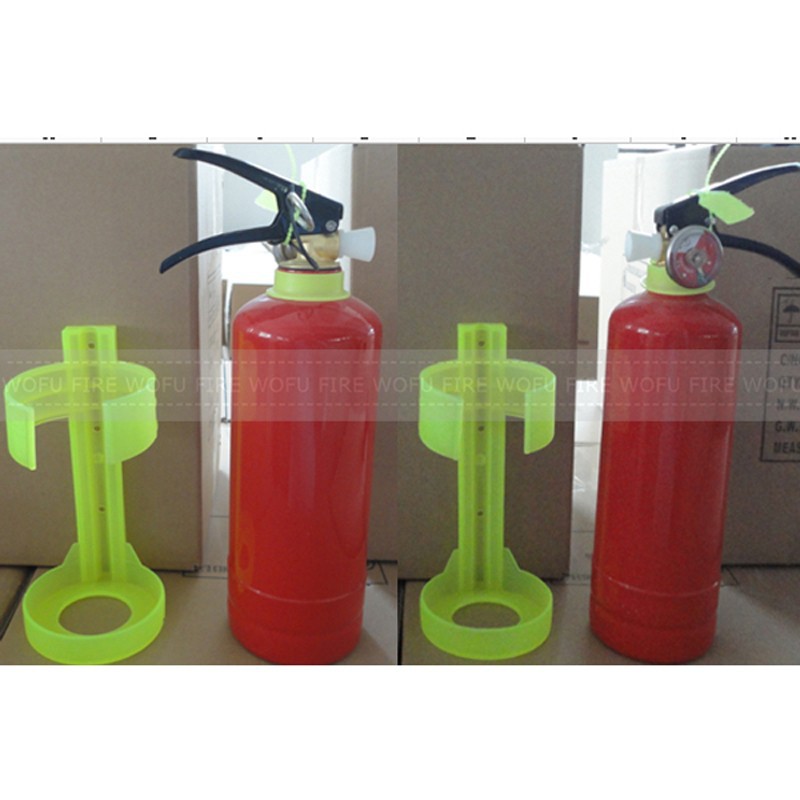

All parts made of extinguisher:red cylinder,valve,nozzle,safety pin,tamper seal,gauge,siphon tube,bracket
| 3.0.5kg extinguisher packing pictures and load fire extinguisher instruction: |
Each extinguisher use poly bag packing,avoid the paint scratch.10pcs extinguisher into brown carton,use cardboard separation.
Features and Applicated :
* Ammonium Phosphate Chemical powder ABC
* Sodium Bicarbonate Chemical powder BC
suitable for combating fires in Common Combustibles , Flammable liquids and gases,
Live electrical equipment, Combustible metals , easier clean up after fire
Technical Data : FOB NINGBO
Capacity : 0.5+0.05kg USD2.99/PC
Cylinder size : D75 x H200mm USD3.32/PC W/CAR BRACKET
Discharge times : > 7s
Discharge Range : > 3m
Temperature Range: -20~60ºC
Fire Class Rate : 2B, 1A
Working Pressure : 1.2MPa
Test Pressure : 2.5MPa
Accessories : Brass valve without hanger loop
Small red or black handle, hose outlet M16*1.5mm
White nylon nozzle
Siphon tube M16*1.5*160mm
Burden Gauge, Dia 25mm, thread: M10*1-12.5, 13.7 surface
Yellow plastic sealing
Packing : 10pcs a carton G.W: 10.5KG size: 40x16x27cm
20FT LOAD 13300PCS
Operating Instruction :
1. Quickly take extinguisher at a site where 5 meters away from the fire;
2. Turn it upside down before use, to loose the dry powder inside;
3. Take out the safety pin;
4. Hold the discharge hose with one arm and push the pressing handle with the other;
5. Keep upright position during powder spray, do not lying, upside down
Maintenance :
1. Should placed within reach and in a dry and ventilated place;
2. Preventing damps, solarization;
3. The parts in good installed, check it frequently, be recharged once be used;
4. Regularly check if the dry powder is caking, replace immediately if yes;
5. Cylinder should be Hydraulic Tested every 5 years, qualified them can be used
And how they load the cargo? Be remember that’s DG cargo, IMO 1044, CLASS: 2.2. for inside
pressurized gas, not allowed to ship out by air or LCL cargo. ONLY for container and with DG
shipping mark.
| 4.Fire extinguisher production process: |
One small Fire Extinguisher has hundreds of processes and artwork. Now we attached below
mainly processes for your reference, if lack any of one, you will meet bad quality problems.
Trust WOFU, see how we manufacture them(only part of them):
