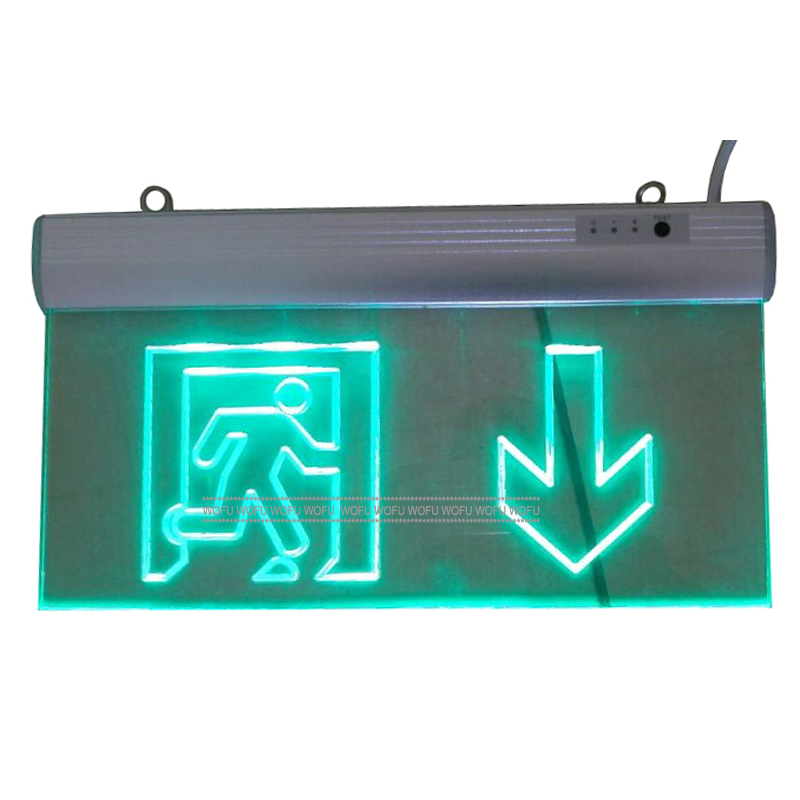

Rechargeable LED emergency light, Emergency exit light 220V
1. Product instruction of emergency light / Emergency exit light 220V
This product is suitable for public places and high-rise buildings,such as hotels,stores,restaurants,residential building,etc.In the case of fire,earthquake or other unexpected accident,it can guide the crowd follow the correct direction safety evacuation.
Light source | LED |
Input | AC90-240V 50/60Hz |
Power | 3W |
Battery | NI-CD 3.6V 600mAh |
Discharge duration | Over 3 hours |
Recharging | 20 hours |
Environment temperature | 5°C--50°C |
How many models of Exit light we have ?
2. Instructions of Rechargeable LED emergency light, Emergency light.
After the automatic emergency lighting is installed correctly,and the connect power meet the requirements,it can be put into use.
G:When connect to the AC,the green indication is ON,it is proved that light input normal
R:The red indication ON when connect to the AC,the battery is charge normal.
Y:The yellow indication is ON.(There are several reasons:1.the battery don’t fix in the light or the batter wires bad contact.2.AC insurance tube open circuit.3.Battery failure.4.Light source all damage or bad contact.)
Test button:Simulation electric power supply failure copy button.When you press the test button,the light will be on and the light don’t have the problem.
3. Maintenance
Fire emergency light use high performance nickel cadmium rechargeable batteries,customers should pay attention to the following things:
1.Test the lamps once for every 90 days,test methods:continuous press the test button for ten times,to check the circuit switching and battery emergency function.
2. If the fire emergency light will not use for long time,it should be stored in dry and ventilated place.Every three months,charge the battery once;connect the power for 24 hours and then store the product(the battery will slowly discharge).
3.Fire emergency light has a backup battery,when you need to replace,just open the lamps to charge directly,please make sure the specifications of the battery should be the same as the original.
4.If you need to charge the light source,should open a lamps,remove the light source components and then replace the proper light source components.
4. Our production pictures of other Emergency exit sign / Portable LED Exit Sign Lamp for your reference:
MODEL: QH3601-01
Model: 3603 light source: 6 LED
battery type: NI-CD3.6V600MAH
switching time : 0.1s Bulb power: 3W
illumination time:180 minuts two years guarantee
sight distance: 20m recharge time: 20hours
Rated voltage: 180V-245v50/60hz Material:aluminum+glass
Model: KXD2341
Model: QH3601-01
Model: KXD3602
4. Maintenance
Fire emergency light use high performance nickel cadmium rechargeable batteries,customers should pay attention to the following things:
1.Test the lamps once for every 90 days,test methods:continuous press the test button for ten times,to check the circuit switching and battery emergency function.
2. If the fire emergency light will not use for long time,it should be stored in dry and ventilated place.Every three months,charge the battery once;connect the power for 24 hours and then store the product(the battery will slowly discharge).
3.Fire emergency light has a backup battery,when you need to replace,just open the lamps to charge directly,please make sure the specifications of the battery should be the same as the original.
4.If you need to charge the light source,should open a lamps,remove the light source components and then replace the proper light source components.
